Help Center100kg.cm 1rpm 8mm dc Gear Motor 12V 24V
Related Products
-
12v 70 Rpm High Torque DC Electric Gear Motor for Home ApplianceUS$ 9 - 17MOQ: 2000 Pieces -
Low Noise 8mm Shaft 12v 24v 100 Rpm Torque 30kg Home Appliance dc Electric Gear MotorsUS$ 10 - 18MOQ: 2 Pieces
-
High Torque 30Nm 24V Spur Gear Motor With Right Angle GearboxUS$ 11.51 - 17.89MOQ: 1000 Pieces
-
Low Speed dc Gear Motor 24v Solar Tracking DeviceUS$ 8 - 15MOQ: 2 Pieces
-
High Torque Low Rpm dc Gear Motor for Electric Lock 6v 12vUS$ 6.34 - 7.32MOQ: 2 Pieces
We know what you concern:
Our Service&Warranty:
1. Within 12 hours reply after recieve your inquiry
2. Excellect& Experience Engineer Team offer proffessional OEM&ODM Service
3. We have over 5 processes control order quality for every order
4. We have professional QA team manage any order feedback until all things solved
Our Partners:
Credibility is our company basic principle, no matter what problems you meet on our motors, just remember, we are here always.
1. Why choose ET-CGM95-A?
ET-CGM95-A is a kind of 12V gear motor with dual shaft, its advantages are:
Features:
a. high torque,could up to 150kg.cm
b. strong output shaft/axis, diameter 8.0mm
c. all metal gears, could be plastic gears also
d. long working life time. we tested in our test room, its motor could run over 1000hours at average continously
e. good noise level. widely used in home&office applications, vending machines
f. flat gearbox, strong torque
Performance customizable:
a. speed could be customized, from 0.1~120rpm
b. voltage could be 6VDC, 9VDC, 12VDC, 24VDC
c. shaft length could be changed
d. could be with or without encoder
Below performance table is for reference only:
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| ET-CGM95A-12162 | 10.0-14.0 | 12.0 | 162 | ≤0.9 | 124 | ≤3.9 | 19 |
| ET-CGM95A-12100 | 10.0-14.0 | 12.0 | 100 | ≤0.9 | 76 | ≤3.9 | 30 |
| ET-CGM95A-1270 | 10.0-14.0 | 12.0 | 70 | ≤0.9 | 52 | ≤3.9 | 43 |
| ET-CGM95A-1237 | 10.0-14.0 | 12.0 | 37 | ≤0.9 | 27 | ≤3.9 | 74 |
| ET-CGM95A-1223 | 10.0-14.0 | 12.0 | 23 | ≤0.9 | 16 | ≤3.9 | 120 |
| ET-CGM95A-1219 | 10.0-14.0 | 12.0 | 19 | ≤0.9 | 13.5 | ≤3.9 | 120* |
| ET-CGM95A-1210 | 10.0-14.0 | 12.0 | 10 | ≤0.9 | 7 | ≤3.9 | 120* |
| ET-CGM95A-1209 | 10.0-14.0 | 12.0 | 9 | ≤0.9 | 6 | ≤3.9 | 120* |
| ET-CGM95A-1206 | 10.0-14.0 | 12.0 | 6 | ≤0.9 | 4 | ≤3.9 | 120* |
| ET-CGM95A-125.6 | 10.0-14.0 | 12.0 | 5.6 | ≤0.9 | 3.6 | ≤3.9 | 120* |
| Remarks: 1. Gearbox Shaft can be made with double shaft, shaft dimension can be customized. 2. The Voltage can be 12VDC, 24VDC; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motors. | |||||||
Lead time:
Samples: 10 working days normally, 1-3 working days at fast if material stock
Mass production: 30-35 working days normally
Typical Applications:
- Home&Office Applications: Electric Blinds, Automative Kitchen Cabinet, 3D Printer, Shredder, TV Lift, Table Lift, Smart Heating Control System, Office Machine, Humidifier, BBQ. Pet Feeder
- Security Industry: Safebox, Smart Lock, Intellegent CCTV System, Access System
- Robot: Robot Arm, Robot Head, Education Robot, Floor Cleaning Robot;
- Sanitary Applications: Tissue Dispenser, Towel Dispenser, Smart Toilet Seat, Air Freshener, Soap Dispenser
- Other uses: Valve, CNC Machine, Vending Machine, Camera Slipping, Medical Equipment.....
Any Interesting or Question, email us directly!

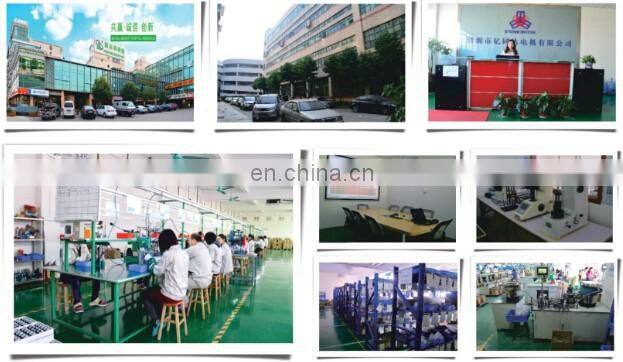

Factory Views:
Events: EXPO March Alibaba & SIA Fair, Shanghai
Whatsapp/Wechat/Tel: +86 137 237 06252
Skype: etmotor2
Website:
