ET-CGM95B--- Premium Quality 12V 180rpm 80 Watts Dc Gear Motor
Model: ET-CGM95-B flat dc gear motor
Free run: ~1000rpm
Shaft diameter: 8mm
Gear ratio: 1/37~1/1059
Port: Shenzhen and Hongkong
Lead time: samples in 3-7 working days, cargo in 7-25 working days.
Motor Basic information:
| Type: | ET-CGM95-B Robot Dc Gear Motor |
| Voltage: | 12V-230V |
| Input power: | 0.2-30W |
| Torque: | 3-600kg.cm |
| Design: | DC brushed gear motor |
speed: 0.7RPM, 1.5RPM, 1.6RPM, 2.8RPM, 3.1RPM, 3.7RPM, 4.2RPM, 6.4RPM, 8.1RPM, 11.7RPM, 16RPM, 22RPM, 30RPM, 43RPM, 58.8RPM, 82RPM, 111RPM, 160RPM, 219RPM, 423RPM, 577RPM, 594RPM, 810RPM
Range of reduction ratio: 37,60,66,86,162,265,315,594,651,973,1059
Application: Robotics Motor, Automatic Curtain Machine motor, cordless power tool, token, optical equipment, Remote Control Electric Curtain System, monitoring cameras, ticket selling machines, automatic energy saving bath.

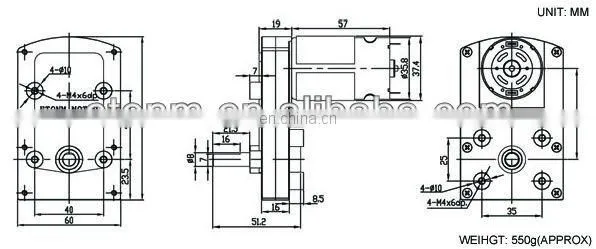

Dimension Drawing
Datasheet for your reference
| Model | Voltage(VDC) | No Load Speed(r/min) | Rated Speed(r/min) | Rated Torque(kg.cm) |
| ET-CGM95B-2481 | 24.0 | 81 | 62 | 4.2 |
| ET-CGM95B-2450 | 24.0 | 50 | 38 | 7 |
| ET-CGM95B-2445 | 24.0 | 45 | 34 | 7.5 |
| ET-CGM95B-2435 | 24.0 | 35 | 26 | 10 |
| ET-CGM95B-2418 | 24.0 | 18 | 13 | 18 |
| ET-CGM95B-2411 | 24.0 | 11 | 8.5 | 28.5 |
| ET-CGM95B-249.5 | 24.0 | 9.5 | 6.9 | 34 |
| ET-CGM95B-2405 | 24.0 | 5 | 3.6 | 63 |
| ET-CGM95B-244.6 | 24.0 | 4.6 | 3.3 | 68 |
| ET-CGM95B-2403 | 24.0 | 3 | 2.1 | 95 |
| ET-CGM95B-242.8 | 24.0 | 2.8 | 1.8 | 103 |
Packing:
1.Export standerd carton/foam.
2.Customized packing condition per your requirements
Shipping:
10-15 days after received your payment. Usually we use DHL and Fedex.
We are can make it according to your requirements.
1.Your inquiry related to our producta will be replied within 24 hours.
2.All your inquiries will be well explained by our experienced staff.
3.We can customize the motor according to your requirements.
4.We will keep the secret for all our customers.
Quality and Service Commitment
Quality Policy: No Best, just Better! Quality Target: The output products yield reach 100%
Lead time target: On lead time reach 100% Return: No , Returns were controlled under one time per year.
Complain: No. Complain satisfaction reach 100%
We can customize the motor according to customer's project, If you have any question about the motor, please feel free to contact us, your inquiry will be welcomed.
Production Capacity:
5000pcs gear motors per day, 10k piece dc motor per day.
Our Advantage:
1.High efficiency up to 80%-90%.
2.Low noise, long life, small volume.
3.High Reliability.
4.Customized.
Main Equipment:
Winding Machine, Dynamic Balance Machine, Spot-welder Machine, Knurling Machine, Automatically butts Welding Machine, Magnetizing Machine, Precision Lathe, Grinding Machine, Milling Machine, Lathe, Punth....
Quality Control:
Main customers:
1.Siemens 2.Sepura 3.Jaccuzi 4.MAUER Locking 5. CES Locking 6.Hanna 7.Hardi 8.TRIMARK Automatic 9.Hanna Instruments
