Help Center12v dc Gear Motor 50kg-cm for Banking and Vending Machine
Related Products
-
dc Motor 12v 775 100kg Flat Gearbox MotorUS$ 12.63 - 14.36MOQ: 1000 Pieces -
High Torque 12v dc MotorUS$ 6 - 7MOQ: 2 Pieces
-
12v Reversible Motor High Torque Gearmotor for RobotUS$ 11.32 - 13.36MOQ: 1000 Pieces
-
95mm 300:1 Flat Gear Motor With Gearbox 1-10rpm Low Rpm Electric Gear MotorsUS$ 13.89 - 16.98MOQ: 1000 Pieces
-
Gearmotor 12v High Torque 12v dc MotorUS$ 8.78 - 12.78MOQ: 2 Pieces
We know what you concern:
Our Service&Warranty:
1. Within 12 hours reply after recieve your inquiry
2. Excellect& Experience Engineer Team offer proffessional OEM&ODM Service
3. We have over 5 processes control order quality for every order
4. We have professional QA team manage any order feedback until all things solved
Our Partners:
Credibility is our company basic principle, no matter what problems you meet on our motors, just remember, we are here always.
1. Why choose ET-CGM95-A?
ET-CGM95-A is a kind of 24v geared motor 250w, its advantages are:
Features:
a. high torque,could up to 150kg.cm
b. strong output shaft/axis, diameter 8.0mm
c. all metal gears, could be plastic gears also
d. long working life time. we tested in our test room, its motor could run over 1000hours at average continously
e. good noise level. widely used in home&office applications, vending machines
f. flat gearbox, strong torque
Performance customizable:
a. speed could be customized, from 0.1~120rpm
b. voltage could be 6VDC, 9VDC, 12VDC, 24VDC
c. shaft length could be changed
d. could be with or without encoder
Below performance table is for reference only:
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| RANGE | r/min | A | r/min | A | kg.cm | ||
| ET-CGM95A-12100 | 10.0-14.0 | 12 | 100 | ≤0.9 | 76 | ≤3.9 | 30 |
| ET-CGM95A-1270 | 10.0-14.0 | 12 | 70 | ≤0.9 | 52 | ≤3.9 | 43 |
| ET-CGM95A-1223 | 10.0-14.0 | 12 | 23 | ≤0.9 | 16 | ≤3.9 | 120 |
| ET-CGM95A-1210 | 10.0-14.0 | 12 | 10 | ≤0.9 | 7 | ≤3.9 | 120* |
| ET-CGM95A-1206 | 10.0-14.0 | 12 | 6 | ≤0.9 | 4 | ≤3.9 | 120* |
| Remarks | |||||||
| 1. Gearbox Shaft can be made with double shaft, shaft dimension can be customized. | |||||||
| 2. The Voltage can be 12VDC, 24VDC; | |||||||
Lead time:
Samples: 10 working days normally, 1-3 working days at fast if material stock
Mass production: 30-35 working days normally
Typical Applications:
- Home&Office Applications: Electric Blinds, Automative Kitchen Cabinet, 3D Printer, Shredder, TV Lift, Table Lift, Smart Heating Control System, Office Machine, Humidifier, BBQ. Pet Feeder
- Security Industry: Safebox, Smart Lock, Intellegent CCTV System, Access System
- Robot: Robot Arm, Robot Head, Education Robot, Floor Cleaning Robot;
- Sanitary Applications: Tissue Dispenser, Towel Dispenser, Smart Toilet Seat, Air Freshener, Soap Dispenser
- Other uses: Valve, CNC Machine, Vending Machine, Camera Slipping, Medical Equipment.....

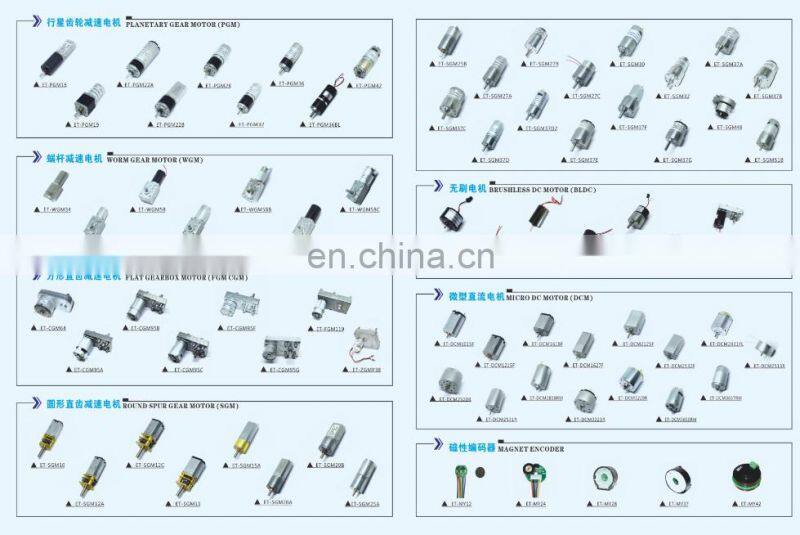

Complete Gear Motor Product List:
Planetary Gear Motor:
Worm Gear Motor/Right Angle Motor:
Spur Gear Motor:
Flat Gear Motor:
Mini DC Motor:
Any Interesting or Question, email us directly!
Etonm Motor is an ISO9001:2008 company, Professionally in R&D and manufacturing Micro DC Motor and Gear Motor. We started our business since 2004, now we have two factories, one is for Mini DC Motor, the other is for Gearbox. Even since the beginning, Etonm have been holding “Mutual-Benefit, Truthful and Innovative” as it core value. Our official website , you could know about us in detail there.
