ETONM 36mm small geared BLDC motor 12v
We know what you concern:
What advantages does ET-PGM36BL have if choose it?
1.Features
a. ET-PGM36 is a kind of High Torque Planetary Gear Motor, could up to 60kg.cm
b. strong output shaft/axis, diameter 8.0mm,central output shaft/axis
c. all metal gears, could be plastic gears also
d. good noise level
f. long working life time. we tested in our test room, its motor could run over 1500hours at average continously
2. Performance customizable:
a. voltage could be 12VDC, 24VDC
b. speed could be customized, from 1to 1500rpm
c. shaft length could be changed
d. could be with or without encoder ET-MY37(ET-MY37 specification)
Below are some performance for reference:
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | mA | r/min | A | kg.cm | |||
| ET-PGM36BL-12263 | 10-15V | 12VDC | 263 | ≤350 | 210 | ≤1.7 | 3.8 |
| ET-PGM36BL-12185 | 10-15V | 12VDC | 185 | ≤350 | 148 | ≤1.7 | 5.5 |
| ET-PGM36BL-1298 | 10-15V | 12VDC | 98 | ≤350 | 78 | ≤1.7 | 9.3 |
| ET-PGM36BL-1270 | 10-15V | 12VDC | 70 | ≤350 | 56 | ≤1.7 | 13 |
| ET-PGM36BL-1250 | 10-15V | 12VDC | 50 | ≤350 | 40 | ≤1.7 | 18 |
| ET-PGM36BL-1236 | 10-15V | 12VDC | 36 | ≤350 | 29 | ≤1.7 | 25 |
| ET-PGM36BL-1226.5 | 10-15V | 12VDC | 26.5 | ≤350 | 21 | ≤1.7 | 32 |
| ET-PGM36BL-1218.9 | 10-15V | 12VDC | 18.9 | ≤350 | 15 | ≤1.7 | 44 |
| ET-PGM36BL-129.6 | 10-15V | 12VDC | 9.6 | ≤350 | 7.7 | ≤1.7 | 60* |
| ET-PGM36BL-126.9 | 10-15V | 12VDC | 6.9 | ≤350 | 5.5 | ≤1.7 | 60* |
| ET-PGM36BL-1205 | 10-15V | 12VDC | 5 | ≤350 | 4 | ≤1.7 | 60* |
| ET-PGM36BL-122.6 | 10-15V | 12VDC | 2.6 | ≤350 | 2 | ≤1.7 | 60* |
| ET-PGM36BL-121.3 | 10-15V | 12VDC | 1.3 | ≤350 | 1 | ≤1.7 | 60* |
If you don't find your target performance, email us, we can customize in line with your requirements.
We are glad and welcomed if you would want to communicate with us your technical questions. We have excellent,experience engineer team, we could offer a comprehensive solution to ntact us.
2. Typical Applications:
- Coffee machine
- Acuator
- Electric valve
- Banking
- Medical equipment
- Robotics
- Electric blinds, Curtain
- Venidng system
- Kitchen cabinet
3. Certification:
- CE
- RoHS
If you want to try samples, contact us directly.
4. Lead time, Payment, Shippment:
- sample:
lead time: 7-12 working days;
Payment: Paypal, Bank Transfer are OK for us;
Shippment: samples are usually shipped by DHL, Fedex, TNT,UPS.
- Mass Production:
lead time: 35-40 working days
Payment: Bank Transfer
Shippment: by airplane, by sea, by train are OK.
About ETONM:
Founded in year 2004, ETONM MOTOR Is specialized in R&D, manufacturing and selling Mini DC Motor and DC Gear Motor, which includes Spur Gear Motor, Planetary Gear Motor, Worm Gear Motor. These motors are with 1VDC-30VDC, the diameter is from φ8~φ51mm.

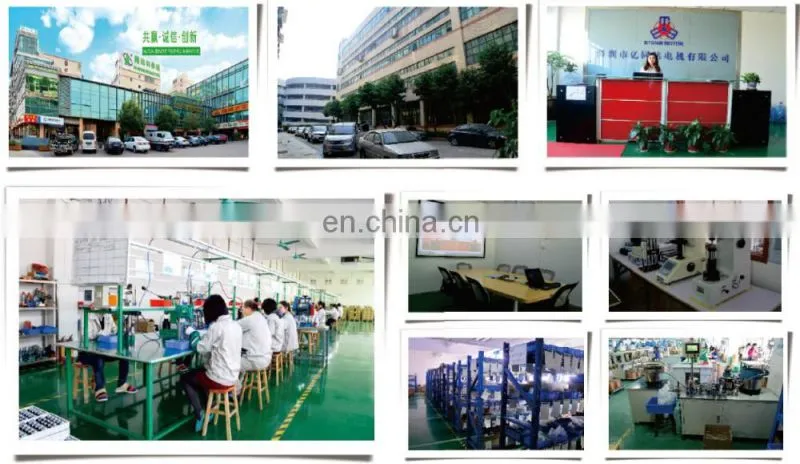

Mass production quality control:
Make some good samples are very easy, to keep and control mass production at good consistent, we apply many automative machines in our workline and inspection:
Our team:
Contacts:
Vicky Huang
skype:etmotor2
whatsapp: +86 13097253124
Wechat: 13097253124
Tel: +86-0755-84019605 # 8001
