Home > Products > Spur Gear Motor > cigarette vending machine 12v high torque long lifetime mini gear motor ET-SGM37D2

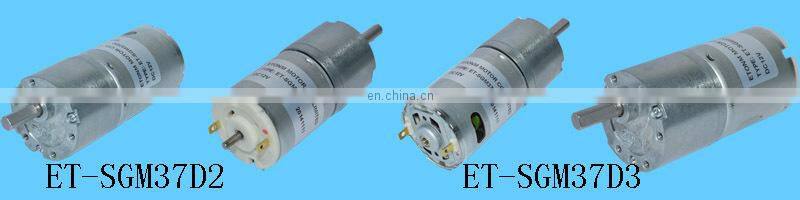

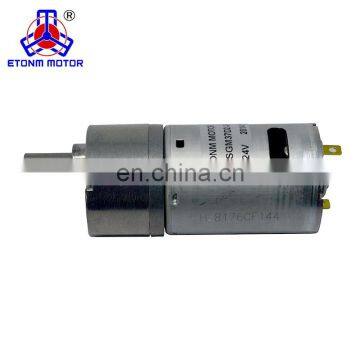

cigarette vending machine 12v high torque long lifetime mini gear motor ET-SGM37D2
- 3000 Piece / Pieces per Month
- shenzhen and hk
- T/T Credit Card
- high efficient dc gear motor for 12v 24v dc motor 1500rpm
- small dc 12 volt battery electric motor
- gold supplier 24v gear metal motor manufacturer for coffee machine
- 3v 5v N20 metal dc gear motor
- high torque motor high rpm gear motor 30kg ET-SGM37-A 12V 24V
- high torque low rpm gear motor 6V 3.2rpm 37mm diameter for BBQ
Product Details
Brand Name: | ETONM | Place of Origin: | Guangdong, China | Model Number: | ET-SGM37D2 |
Product Description
ET-SGM37D2=== cigarette vending machine 12v high torque long lifetime mini gear motor
Performance Range Typical application
Voltage: 6-24v House-hold Appliance
Speed: 1-600rpm Auto and integent Cleaner
Torque: 1-40kg.cm Vending and Banking Systerm
Motor Datasheet:
MODEL | VOLTAGR(V) | NO LOAD SPEED(RPM) | ON LODE SPEED(RPM) | RATED TORQUE(kg.cm) |
ET-SGM37D2-24600 | 24v | 600 | 500 | 1.4 |
ET-SGM37D2-2300 | 24v | 300 | 250 | 2.5 |
ET-SGM37D2-24200 | 24v | 200 | 166 | 4.0 |
ET-SGM37D2-267 | 24v | 67 | 55 | 10 |
ET-SGM37D2-2440 | 24v | 40 | 33 | 15 |
ET-SGM37D2-229 | 24v | 29 | 24 | 21 |
ET-SGM37D2-29.5 | 24v | 9.5 | 8 | 40 |
ET-SGM37D2-207 | 24v | 7 | 6 | 40 |
Remarks:
1. Shaft dimension can be customized.
2.The Voltage can be 6V, 12V, 24V; The DC Motor's speed is adjustable.
3.This gearbox can be matched with other DC Motor.

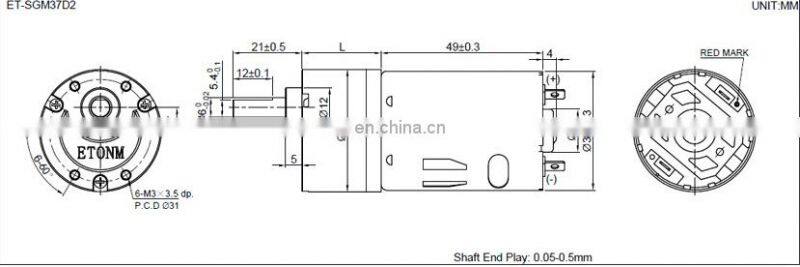

Motor Drawing:
Packing:
1.Export standerd carton/foam.
2.Customized packing condition per your requirements
Shipping:
10-15 days after received your payment. Usually we use DHL and Fedex.
We are can make it according to your requirements.
1.Your inquiry related to our producta will be replied within 24 hours.
2.All your inquiries will be well explained by our experienced staff.
3.We can customize the motor according to your requirements.
4.We will keep the secret for all our customers.
Quality and Service Commitment
Quality Policy: No Best, just Better! Quality Target: The output products yield reach 100%
Lead time target: On lead time reach 100% Return: No , Returns were controlled under one time per year.
Complain: No. Complain satisfaction reach 100%
We can customize the motor according to customer's project, If you have any question about the motor, please feel free to contact us, your inquiry will be welcomed.
Production Capacity:
5000pcs gear motors per day, 10k piece dc motor per day.
Our Advantage:
1.High efficiency up to 80%-90%.
2.Low noise, long life, small volume.
3.High Reliability.
4.Customized.
Main Equipment:
Winding Machine, Dynamic Balance Machine, Spot-welder Machine, Knurling Machine, Automatically butts Welding Machine, Magnetizing Machine, Precision Lathe, Grinding Machine, Milling Machine, Lathe, Punth....
Quality Control:
Main customers:
1.Siemens 2.Sepura 3.Jaccuzi 4.MAUER Locking 5. CES Locking 6.Hanna 7.Hardi 8.TRIMARK Automatic 9.Hanna Instruments
we can customize the motor according to customer's project, If you have any question about the motor, please feel free to contact us, your inquiry will be welcomed.
Q: Can you make a motor customized?
Yes, we can and we welcome that.
Q: What is teh deliverly time of sample and the cargo?
For samples, generally it needs 3-5 working days with regular specification, and 15-20 working days for the cargo; If not, then it needs about 7-10 working days for samples with special specification, 25 working days for the cargo.
Q:What is your MOQ?
Generally, if it is for dc gear motor, then the MOQ is 1k; while 5k for the dc motor. But our company have policy to support first trial order with small quantity.
Q:Do you have motors in stocks?
NO, all the motor is made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: What is the payment terms?
For small amount like samples, we would like the paypal; and TT for the big order. We also accept 50% deposit, balance paid before the shipping .
Q:What is the shipping method?
For samples and small orders, we recommend the Express, like DHL, FEdEX and TNT. It is very fast, safe and relatively cheap; We go with FOB/CIF/CFR terms if shippment by sea and air.
Q:What information do you need if we need a recommendation on motor?
We need to know the basic specification of the motor:Dimesnion, Application, Voltage, Speed and Torque. If you have samples, it would be better you send us your samples. We can test and find them out.
