Home > Electrical & Electronics > Electric Motor > Stepper Motor > ETONM ET-SGM13 6v dc Electric Motor, dc Gear Motor 5v,12v Electric Motor Gear Box

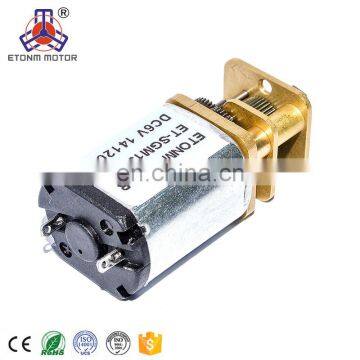

ETONM ET-SGM13 6v dc Electric Motor, dc Gear Motor 5v,12v Electric Motor Gear Box

ETONM ET-SGM13 6v dc Electric Motor, dc Gear Motor 5v,12v Electric Motor Gear Box thumbnail-1
ETONM ET-SGM13 6v dc Electric Motor, dc Gear Motor 5v,12v Electric Motor Gear Box thumbnail-2
ETONM ET-SGM13 6v dc Electric Motor, dc Gear Motor 5v,12v Electric Motor Gear Box thumbnail-3
ETONM ET-SGM13 6v dc Electric Motor, dc Gear Motor 5v,12v Electric Motor Gear Box thumbnail-4
ETONM ET-SGM13 6v dc Electric Motor, dc Gear Motor 5v,12v Electric Motor Gear Box thumbnail-5
ETONM ET-SGM13 6v dc Electric Motor, dc Gear Motor 5v,12v Electric Motor Gear Box thumbnail-6
ETONM ET-SGM13 6v dc Electric Motor, dc Gear Motor 5v,12v Electric Motor Gear Box thumbnail-7
ETONM ET-SGM13 6v dc Electric Motor, dc Gear Motor 5v,12v Electric Motor Gear Box photo-1
ETONM ET-SGM13 6v dc Electric Motor, dc Gear Motor 5v,12v Electric Motor Gear Box photo-2
ETONM ET-SGM13 6v dc Electric Motor, dc Gear Motor 5v,12v Electric Motor Gear Box photo-3
ETONM ET-SGM13 6v dc Electric Motor, dc Gear Motor 5v,12v Electric Motor Gear Box photo-4
ETONM ET-SGM13 6v dc Electric Motor, dc Gear Motor 5v,12v Electric Motor Gear Box photo-5
ETONM ET-SGM13 6v dc Electric Motor, dc Gear Motor 5v,12v Electric Motor Gear Box photo-6
ETONM ET-SGM13 6v dc Electric Motor, dc Gear Motor 5v,12v Electric Motor Gear Box photo-7
US$ 3.51 - 5.36 MOQ: 3000 Pieces
Key Specifications
Get Latest Price
Brand Name:
ETONM
Place of Origin:
Guangdong, China
Model Number:
ET-SGM13
Contact Supplier Request Quote Chat Now
Shenzhen Etonm Motor Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen and HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ETONM
Place of Origin Guangdong, China
Model Number ET-SGM13
Product Descriptions
                                                          ET-SGM13 DC motor with flat gearbox
Model
ET-SGM13
Motor Voltage(VDC)
3V-6V
Gearbox ratio
10, 35, 63, 86, 115, 150, 360 or Custom
Gearmotor no load speed(rpm)
14rpm - 67rpm, or Custom
Gearmotor rated load speed(rpm)
10 - 47rpm or Custom
Gearmotor rated load torque(kgf.cm)
0.05- 4kgf.cm
Gearmotor rated current(A)
<0.19A
Gearmotor no load current(A)
<0.05A
Housing material
Stainless Steel
Bearing at output shaft
ball-bearing or  oil-retaining bearing
Certificate
CE,ROHS,ISO
Shaft Shape
D-shape or O-shape
Encoder
3PPR, 7PPR, 12PPR
Gear type
Spur gear, or worm gear, or planet construction


MODEL
VOLTAGE
NO LOAD
AT RATED LOAD

operation range

nominal
speed
current
speed
current
torque
r/min
A
r/min
A
kgf.cm
ET-SGM13-0667
3.0-7.2
6VDC
67
< =0.05
47
 <=0.19
0.40
ET-SGM13-0627
  3.0-7.2
6VDC
27
 < =0.05
19
 <=0.19
 1.20
 ET-SGM13-05242
  3.0-7.2
5VDC
242
 < =0.05
176
 <=0.19
0.12
 ET-SGM13-05134
3.0-7.2
5VDC
134
< =0.05
98
<=0.19
0.23
 ET-SGM13-0599
 3.0-7.2
 5VDC
99
 < =0.05
 72
 <=0.19
0.31
 ET-SGM13-0574
 3.0-7.2
 5VDC
74
 < =0.05
52
 <=0.19
0.40
 ET-SGM13-0556
 3.0-7.2
5VDC
56
 < =0.05
40
 <=0.19
0.52
 ET-SGM13-0523
3.0-7.2
 5VDC
 23
 < =0.05
16
<=0.19
1.20
 ET-SGM13-03143
 3.0-7.2
3VDC
143
 < =0.10
104
<=0.50
0.06
 ET-SGM13-0379
 3.0-7.2
3VDC
79
 < =0.10
57
 <=0.50
0.12
 ET-SGM13-0358
 3.0-7.2
3VDC
58
 < =0.10
42
 <=0.50
0.16
 ET-SGM13-0333
 3.0-7.2
3VDC
33
< =0.10
 24
 <=0.50
0.27
 ET-SGM13-0314
 3.0-7.2
3VDC
14
< =0.10
10
 <=0.50
0.65
