Home > Products > Spur Gear Motor > dc gear motor 300 rpm dc motor high rpm 24v
dc gear motor 300 rpm dc motor high rpm 24v
- 3000 Piece / Pieces per Month
- shenzhen and hk
- T/T Credit Card
You May Like
-
700 rpm motor dc geared motor 12v 30 rpm
-
3v 4.5v dc gear motor 12mm
-
1.5 volt 10mm plastic dc motor for robot DIY
-
ETONM ET-SGM37G Gearbox Motor Reduction 37mm 12 Volt Dc Geared Motor 12v Dc Gear Motor
-
small n20 dc gearbox waterproof mini dc motor 3v 12v
-
12v dc carbon brush motor 24v dc motor high torque low speed
Product Details
Brand Name | ETONM | Place of Origin | Guangdong, China | |
Model Number | ET-SGM37C |
Product Description
ET-SGM37C== rotisserie gear motor 6v gearbox for high rotation bbq motor

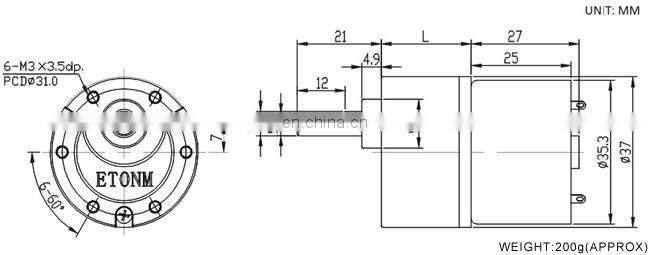

Motor drawing:
Motor data sheet:
MODEL | VOLTAGE | NO LOAD | AT MAX EFFICENCY | AT STALL | |
NOMINAL | SPEED(r/min) | SPEED(r/min) | TORQU(kg.cm) | TORQUE(kg.cm) | |
ET-SGM37C-12500 | 12 | 500 | 400 | 0.8 | 3 |
ET-SGM37C-12167 | 12 | 167 | 133 | 2.4 | 9 |
ET-SGM37C-1271 | 12 | 71 | 55 | 5.5 | 21 |
ET-SGM37C-1255 | 12 | 55 | 42 | 7 | 27 |
ET-SGM37C-1224 | 12 | 24 | 18 | 15 | 81 |
ET-SGM37C-1218 | 12 | 18 | 13 | 20 | 100 |
ET-SGM37C-1210 | 12 | 10 | 7 | 34 | 100 |
ET-SGM37C-1206 | 12 | 6 | 4 | 52 | 100 |
ET-SGM37BLB-2403 | 24 | 3 | 2 | 15 | 100* |
* Shaft dimension can be customized.
* The voltage can be 6V 9V 12V 24V
* This gearbox can be matched with other DC Motor.
Packing:
1.Export standerd carton/foam.
2.Customized packing condition per your requirements
Shipping:
10-15 days after received your payment. Usually we use DHL and Fedex.
We are can make it according to your requirements.
1.Your inquiry related to our producta will be replied within 24 hours.
2.All your inquiries will be well explained by our experienced staff.
3.We can customize the motor according to your requirements.
4.We will keep the secret for all our customers.
Quality and Service Commitment
Quality Policy: No Best, just Better! Quality Target: The output products yield reach 100%
Lead time target: On lead time reach 100% Return: No , Returns were controlled under one time per year.
Complain: No. Complain satisfaction reach 100%
We can customize the motor according to customer's project, If you have any question about the motor, please feel free to contact us, your inquiry will be welcomed.
Production Capacity:
5000pcs gear motors per day, 10k piece dc motor per day.
Our Advantage:
1.High efficiency up to 80%-90%.
2.Low noise, long life, small volume.
3.High Reliability.
4.Customized.
Main Equipment:
Winding Machine, Dynamic Balance Machine, Spot-welder Machine, Knurling Machine, Automatically butts Welding Machine, Magnetizing Machine, Precision Lathe, Grinding Machine, Milling Machine, Lathe, Punth....
Quality Control:
Main customers:
1.Siemens 2.Sepura 3.Jaccuzi 4.MAUER Locking 5. CES Locking 6.Hanna 7.Hardi 8.TRIMARK Automatic 9.Hanna Instruments
we can customize the motor according to customer's project, If you have any question about the motor, please feel free to contact us, your inquiry will be welcomed.
Q: Can you make a motor customized?
Yes, we can and we welcome that.
Q: What is teh deliverly time of sample and the cargo?
For samples, generally it needs 3-5 working days with regular specification, and 15-20 working days for the cargo; If not, then it needs about 7-10 working days for samples with special specification, 25 working days for the cargo.
Q:What is your MOQ?
Generally, if it is for dc gear motor, then the MOQ is 1k; while 5k for the dc motor. But our company have policy to support first trial order with small quantity.
Q:Do you have motors in stocks?
NO, all the motor is made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: What is the payment terms?
For small amount like samples, we would like the paypal; and TT for the big order. We also accept 50% deposit, balance paid before the shipping .
Q:What is the shipping method?
For samples and small orders, we recommend the Express, like DHL, FEdEX and TNT. It is very fast, safe and relatively cheap; We go with FOB/CIF/CFR terms if shippment by sea and air.
Q:What information do you need if we need a recommendation on motor?
We need to know the basic specification of the motor:Dimesnion, Application, Voltage, Speed and Torque. If you have samples, it would be better you send us your samples. We can test and find them out.
