We know what you concern:
90degree worm gear motor 100rpm electric gear motor 12v
Our Service&Warranty:
1. Within 12 hours reply after recieve your inquiry
2. Excellect& Experience Engineer Team offer proffessional OEM&ODM Service
3. We have over 5 processes control order quality for every order
4. We have professional QA team manage any order feedback until all things solved
Our Partners:
Credibility is our company basic principle, no matter what problems you meet on our motors, just remember, we are here always.
1. Why choose ET-WGM46?
ET-WGM46 is a kind of tsiny 12v dc worm gear motor , its advantages are:

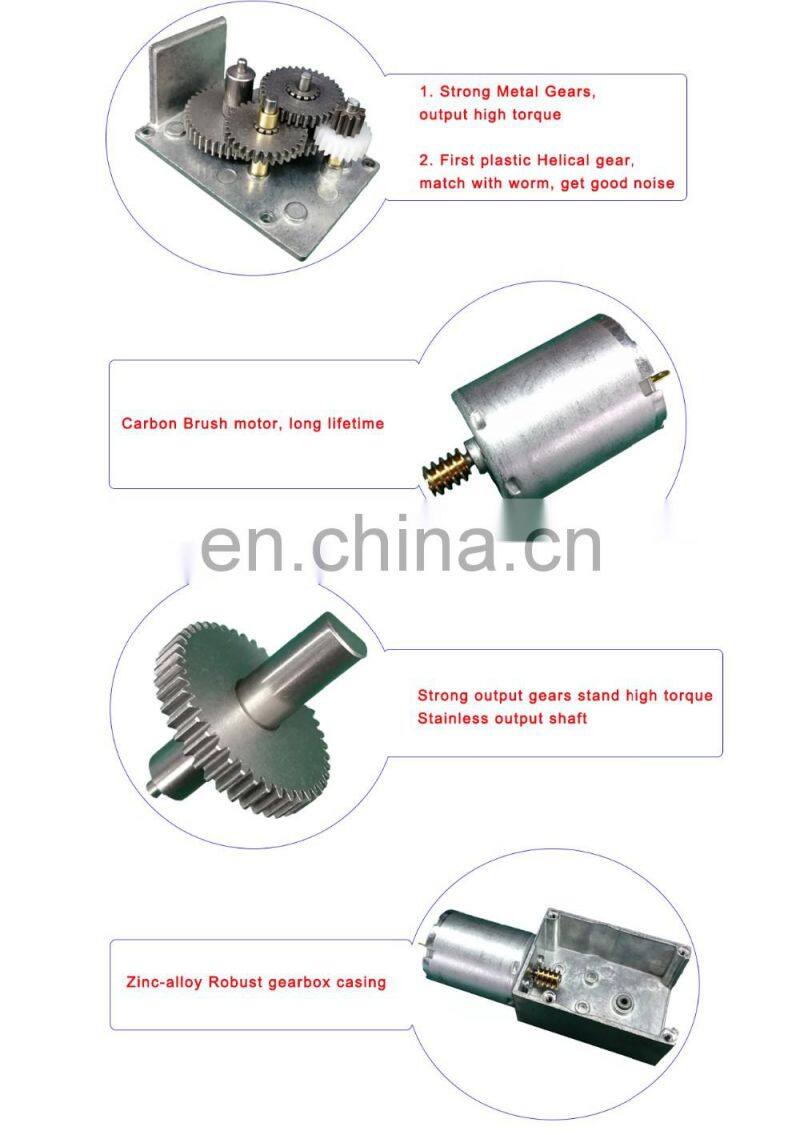

Features:
a. high torque,could up to 30kg.cm
b. strong output shaft/axis, diameter 6.0mm
c. plastic& metal gears
d. long working life time
e. good noise level. widely used in home&office applications, like elctric blinds, kitechens
f. right angel
g. compact size
Performance customizable:
a. speed could be customized, from 0.1~130rpm
b. voltage could be 6VDC, 9VDC, 12VDC, 24VDC
c. shaft length could be changed
d. could be with or without encoder
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| ET-WGM46-2430 | 15.0-28.0 | 24.0 | 30 | ≤0.4 | 27 | ≤0.13 | 2.7 |
| ET-WGM46-2419 | 15.0-28.0 | 24.0 | 19 | ≤0.4 | 15.8 | ≤0.13 | 4.0 |
| ET-WGM46-248.5 | 15.0-28.0 | 24.0 | 8.5 | ≤0.4 | 7 | ≤0.13 | 8.5 |
| ET-WGM46-243.8 | 15.0-28.0 | 24.0 | 3.8 | ≤0.4 | 3 | ≤0.13 | 18.0 |
| ET-WGM46-1230 | 8.0-14.0 | 12.0 | 30 | ≤0.06 | 27 | ≤0.22 | 2.7 |
| ET-WGM46-1219 | 8.0-14.0 | 12.0 | 19 | ≤0.06 | 15.8 | ≤0.22 | 4.0 |
| ET-WGM46-128.5 | 8.0-14.0 | 12.0 | 8.5 | ≤0.06 | 7 | ≤0.22 | 8.5 |
| ET-WGM46-123.8 | 8.0-14.0 | 12.0 | 3.8 | ≤0.06 | 3 | ≤0.22 | 18.0 |
| ET-WGM46-122.5 | 8.0-14.0 | 12.0 | 2.5 | ≤0.06 | 2 | ≤0.22 | 27.0 |
| Remarks: 1. Gearbox Shaft can be made with double shaft, shaft dimension can be customized. 2. The Voltage can be 6VDC, 12.0, 24VDC; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motor. | |||||||
Samples: 10 working days normally, 1-3 working days at fast if material stock
Mass production: 30-35 working days normally
Etonm Motor is an ISO9001:2008 company, Professionally in R&D and manufacturing Micro DC Motor and Gear Motor. We started our business since 2004, now we have two factories, one is for Mini DC Motor, the other is for Gearbox. Even since the beginning, Etonm have been holding “Mutual-Benefit, Truthful and Innovative” as it core value. Our official website , you could know about us in detail there.
Events: EXPO March Alibaba & SIA Fair, Shanghai
Whatsapp/Wechat/Tel: +86 137 237 06252
Skype: etmotor2
Website:
