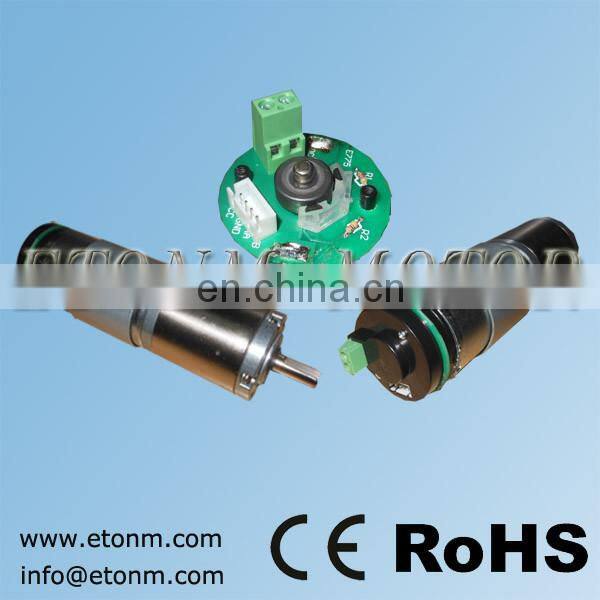

ET-PGM42 high speed small electric piston 24vdc motor
About Gear ratio: high speed small electric piston 24vdc motor
| Gear Ratio Stage | 1 | 2 | 3 | 4 |
| Gear Ratio | 3.7 | 14 | 51 | 189 |
| 5.2 | 19 | 71 | 264 | |
| 27 | 100 | 369 | ||
| 139 | 515 | |||
| 721 | ||||
| Gearbox Length(L) | 27.5 | 35.5 | 43.5 | 51.5 |
Motor data sheet: high speed small electric piston 24vdc motor
| MODEL | VOLTAGR(V) | NO LOAD SPEED(RPM) | ON LODE SPEED(RPM) | RATED TORQUE(kg.cm) |
| ET-PGM42-24750 | 24V | 750 | 600 | 1.6 |
| ET-PGM42-24111 | 24V | 111 | 90 | 7.5 |
| ET-PGM42-2442 | 24V | 42 | 22 | 25.4 |
| ET-PGM42-2430 | 24V | 30 | 90 | 3.8 |
| ET-PGM42-2416 | 24V | 16 | 11 | 44.8 |
| ET-PGM42-2411 | 24V | 11 | 7.5 | 60 |
| ET-PGM42-2403 | 24V | 3 | 1.8 | 150 |
| ET-PGM42-240.8 | 24V | 0.8 | 0.5 | 150 |
Remarks:
1. Shaft dimension can be customized.
2.The Voltage can be 6V, 12V, 24V; The DC Motor's speed is adjustable.
3.This gearbox can be matched with other DC Motor.
We can customize the motor according to customer's project, If you have any question about the motor, please feel free to contact us, your inquiry will be welcomed.
Production Capacity:
5000pcs gear motors per day, 10k piece dc motor per day.
Our Advantage:
1.High efficiency up to 80%-90%.
2.Low noise, long life, small volume.
3.High Reliability.
4.Customized.
Main Equipment:
Winding Machine, Dynamic Balance Machine, Spot-welder Machine, Knurling Machine, Automatically butts Welding Machine, Magnetizing Machine, Precision Lathe, Grinding Machine, Milling Machine, Lathe, Punth....
Quality Control:
Main customers:
1.Siemens 2.Sepura 3.Jaccuzi 4.MAUER Locking 5. CES Locking 6.Hanna 7.Hardi 8.TRIMARK Automatic 9.Hanna Instruments
we can customize the motor according to customer's project, If you have any question about the motor, please feel free to contact us, your inquiry will be welcomed.
