12V 60rpm 0.5Nm High Torque Planetary Gear Motors

12V 60rpm 0.5Nm High Torque Planetary Gear Motors thumbnail-1
12V 60rpm 0.5Nm High Torque Planetary Gear Motors thumbnail-2
12V 60rpm 0.5Nm High Torque Planetary Gear Motors thumbnail-3
12V 60rpm 0.5Nm High Torque Planetary Gear Motors thumbnail-4
12V 60rpm 0.5Nm High Torque Planetary Gear Motors thumbnail-5
12V 60rpm 0.5Nm High Torque Planetary Gear Motors photo-1
12V 60rpm 0.5Nm High Torque Planetary Gear Motors photo-2
12V 60rpm 0.5Nm High Torque Planetary Gear Motors photo-3
12V 60rpm 0.5Nm High Torque Planetary Gear Motors photo-4
12V 60rpm 0.5Nm High Torque Planetary Gear Motors photo-5
US$ 9.98 - 19.16 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
ETONM
Place of Origin:
Guangdong, China
Model Number:
ET-PGM28-B
Contact Supplier Request Quote Chat Now
Shenzhen Etonm Motor Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen and HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ETONM
Place of Origin Guangdong, China
Model Number ET-PGM28-B
Product Descriptions

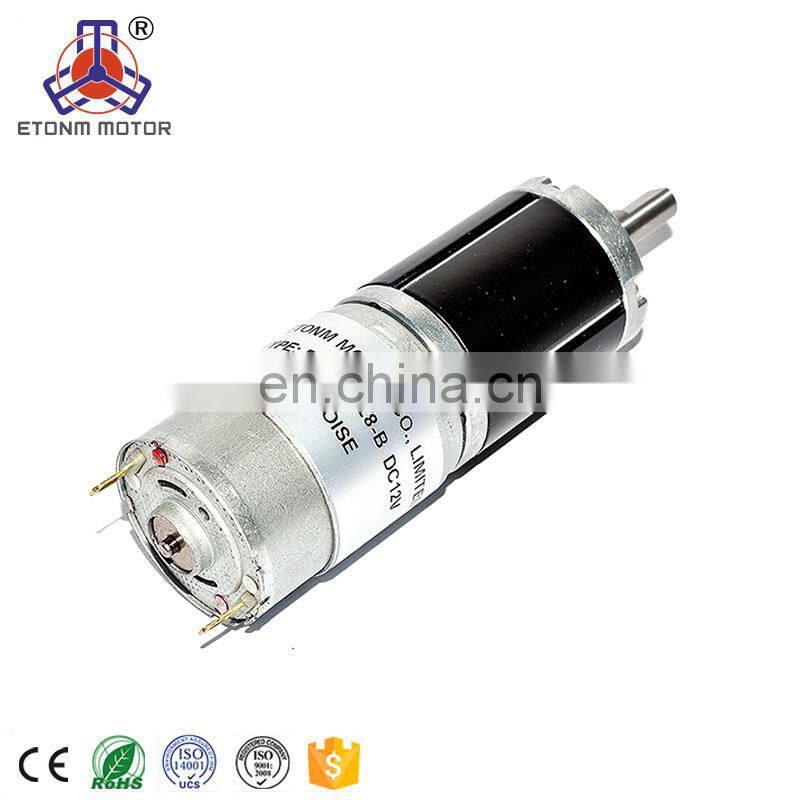

                                                          28mm Planetary Gear Motor
Model
ET-PGM28-B
Motor Voltage(VDC)
12V/24V
Gearbox ratio
 3.4, 4.7, 11, 16, 21.5, 38, 51, 72, 100, 126, 241, 334, 462, 423, 585, 810, 1120, 1549, 2142,  or Custom
Gearmotor no load speed(rpm)
1- 1500rpm, OR Custom
Gearmotor rated load speed(rpm)
1-1000rpm, or Custom
Gearmotor rated load torque(kgf.cm)
0.1-40kgf.cm
Gearmotor no load current(A)
<0.16A
 Gearmotor rated current(A)
<0.60A
Housing material
Stainless Steel
Bearing at output shaft
ball bearing or  oil-retaining bearing
Certificate
CE,ROHS,ISO
Shaft Shape
D-shape or O-shape
Encoder
3PPR, 7PPR, 12PPR
Gear type
Straight gear, or worm gear, or planet construction

 Notice: The above specification is just for reference. The gear motor's gear, shaft, speed, ratio, torque                       and motor type can be customized.

                If you can't find the right motor or feel confused, please contact me. Our engineers will help                           you and evaluate the suitable motor for you.



Products Show

Item Name:   Planetary Gear motor With Gearbox

Model Number:  ET-PGM28-B

More Products

ET-PGM36

Planetary gearbox motor

ET-SGM51-B

Round gear motor

ET-WGM58A

Worm Gearbox Motor

ET-CGM95C

Flat gearbox motor

ET-SGM12C

Spur gear motor

ET-SGM37A

Spur gear box motor

Our Company

         Etonm Motor is an ISO9001:2008 company, Professionally in R&D and manufacturing Micro DC Motor and Gear Motor. We started our business since 2004, now we have two factories, one is for Mini DC Motor, the other is for Gearbox. With 13 years experience, we have the perfect team, excellent engineers and modernized production line.

          There are 5 series gear motor and 1 series encoder, over 100 types. They are Round Spur Gear Motor, Right Angle Gear Motor, Planetary Gear Motor, Flat Spur Gear Motor, Micro DC Motor and Magnet Encoder. In each series motor, we all have our own strong type.

         ET-WGM58A is very popular used on CNC machine. ET-CGM95C, ET-SGM27A, ET-WGM58C are popular for valve. ET-SGM51B is our another strong product. ET-PGM36, ET-PGM32, ET-PGM28A and ET-PGM28B have a excellent performent, because they are planetary gear motor.

         For round spur gear motor, ET-SGM12C is used on various industry this year. ET-SGM25A, ET-SGM37A, ET-SGM37D2, ET-SGM37E and ET-SGM37F, because their low price and good performance, many clients buy these type motors. ET-CGM95-A has big torque and high rpm, so lots of customers choose this type motor.

         These motors are used on various industries. Home Appliance, Office Equipments, Vending Machine and Bank Equipment, Robotics and Electric Valve, Safe and Security, Sanitary Dispenser. 80% gear motors are exported.

                Porduction Workshop

                 Production Process




Certifications
Packing & Shipping

Packing Details  : plastic film bags, foam, carton packing.

Delivery Details : 10-30 days after payment.

1. Special protecting packaging
2. Outer Packing 1
3.  Outer Packing 2
