Home > Industrial Equipment & Components > Valve > Ball Valve > Low Cost Hot Type 2W Series 24V Solenoid Valves for Gas

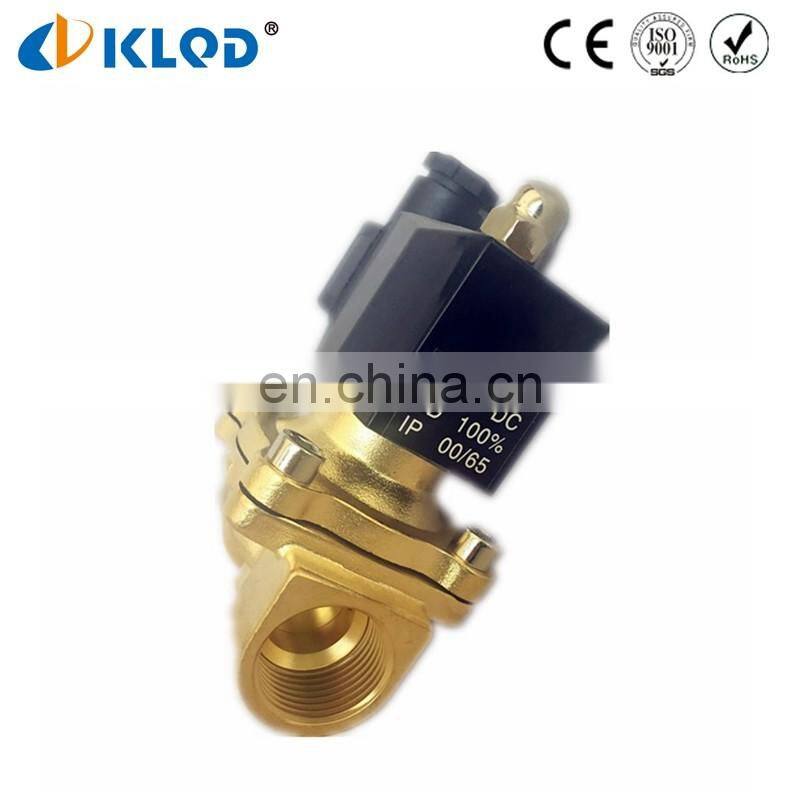

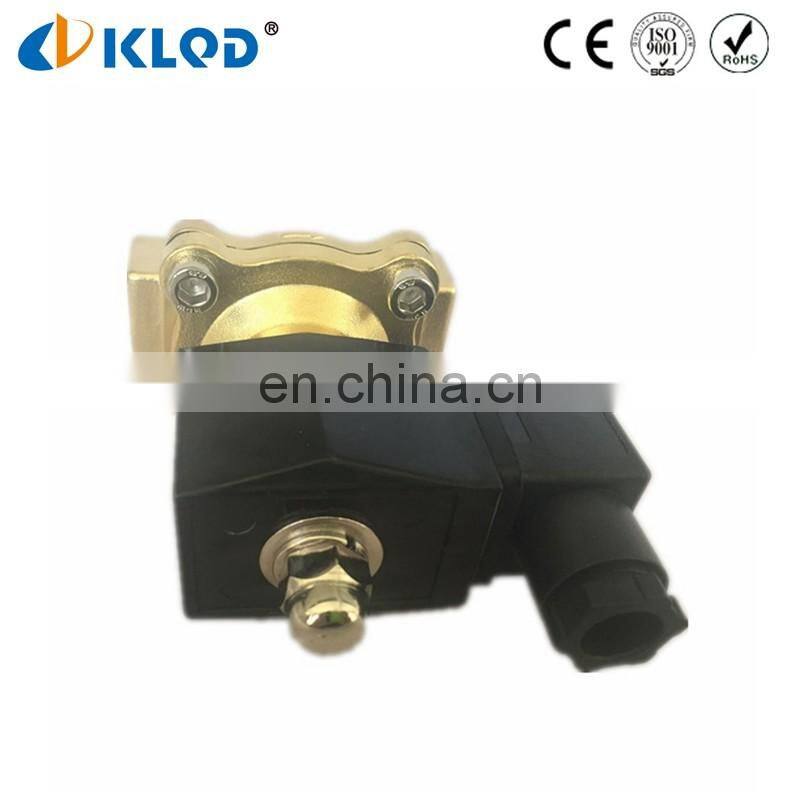

Low Cost Hot Type 2W Series 24V Solenoid Valves for Gas

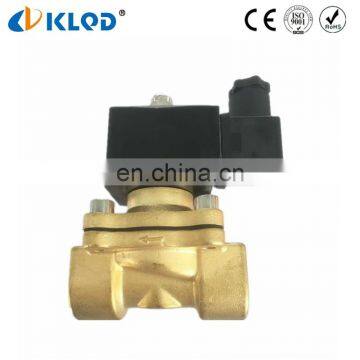

Low Cost Hot Type 2W Series 24V Solenoid Valves for Gas photo-1
Low Cost Hot Type 2W Series 24V Solenoid Valves for Gas photo-2
Low Cost Hot Type 2W Series 24V Solenoid Valves for Gas photo-3
US$ 9.5 - 19 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
KLQD
Place of Origin:
Zhejiang, China
Model Number:
2W200-20S
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo or ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name KLQD
Place of Origin Zhejiang, China
Model Number 2W200-20S
Application General
Structure Control
Standard or Nonstandard Standard
Power Solenoid
Port Size 3/4"
Media Gas
Temperature of Media Medium Temperature
Product Description
Model
2W160-10
2W160-15
2W200-20
2W250-25
2W350-35
2W400-40
Working Medium
Air,Water,Oil,Gas
Operation
Direct Acting
Acting Type
Normally Closed/ Normally Open
Orifice Size
16
20
25
35
40
CV Value
4.8
4.8
12
24
29
Port Size
3/8"
1/2"
3/4"
1"
1-1/4"
1-1/2"
Operation Fluid Viscosity
20 CST Below
Operating Pressure
Air:0~1.0Mpa  Water:0~0.7Mpa  Oil:0~0.9Mpa
Max.Pressure Resistance
1.0 Mpa(Normal Open Type Max.Pressure 0.8Mpa)
Operating Temperature
NBR for -5~80°C and VITON for -5~150°C
Voltage Range
-10%~+10%
Material of Body
Brass
Material of Oil Seal
NBR,EPDM,VITON,SI
Product Details
Our Company

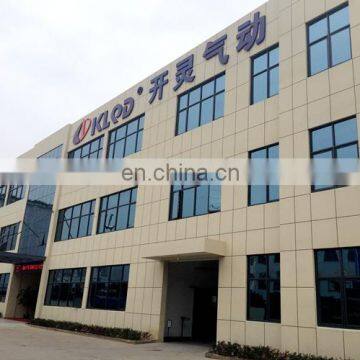

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Our Certifications

High quality of the raw materials, the precision of the parts, the hard tests during and at the end of production are a warranty of reliability and features. Our real strength is to develop customised products to solve any requirement of utilisation. The production runs conforming to the rigorous ISO 9001/2000 requirements .The product range consists of solenoid valves, process valves,Air source treatment units etc ,which are found in a variety of industrial applications such as machinery, metallurgy, food, textile and waste treatment.

Payment
Packing & Delivery

Carton Packing.

Use the strong Nylon bags to protect products.

Carton Packing.

Expert and careful packing to make sure all products are in good condition.

Pallet packing & delivery.

1. Use the pallet to protect products.

2. Sea shipment.

3. Air shipment.

4. Also has the cooperation with DHL/Fedex/UPS/EMS.
