2/2 Way KLS Series KLS-15-D1 Stainless Steel High Pressure Pilot Piston Type DC12V Solenoid Valve

2/2 Way KLS Series KLS-15-D1 Stainless Steel High Pressure Pilot Piston Type DC12V Solenoid Valve thumbnail-1
2/2 Way KLS Series KLS-15-D1 Stainless Steel High Pressure Pilot Piston Type DC12V Solenoid Valve thumbnail-2
2/2 Way KLS Series KLS-15-D1 Stainless Steel High Pressure Pilot Piston Type DC12V Solenoid Valve thumbnail-3
2/2 Way KLS Series KLS-15-D1 Stainless Steel High Pressure Pilot Piston Type DC12V Solenoid Valve thumbnail-4
2/2 Way KLS Series KLS-15-D1 Stainless Steel High Pressure Pilot Piston Type DC12V Solenoid Valve photo-1

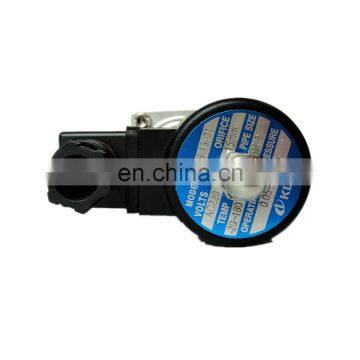

2/2 Way KLS Series KLS-15-D1 Stainless Steel High Pressure Pilot Piston Type DC12V Solenoid Valve photo-2

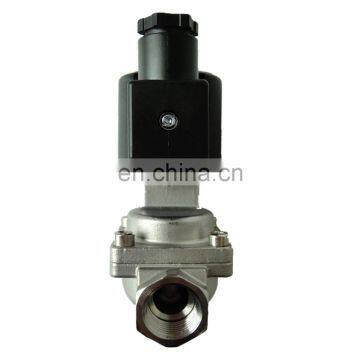

2/2 Way KLS Series KLS-15-D1 Stainless Steel High Pressure Pilot Piston Type DC12V Solenoid Valve photo-3

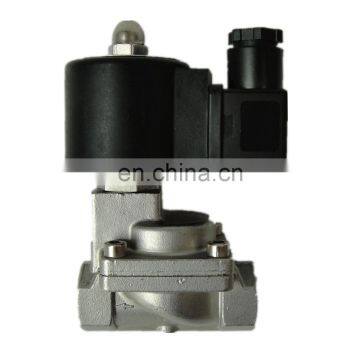

2/2 Way KLS Series KLS-15-D1 Stainless Steel High Pressure Pilot Piston Type DC12V Solenoid Valve photo-4
US$ 27 - 27 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
KLQD
Place of Origin:
Zhejiang, China
Model Number:
KLS-15-D1
Contact Supplier Request Quote Chat Now
Ningbo Kailing Pneumatic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name KLQD
Place of Origin Zhejiang, China
Model Number KLS-15-D1
Application General
Structure Pilot
Standard or Nonstandard Standard
Power Solenoid
Port Size G1/2''
Temperature of Media High Temperature
Product Description

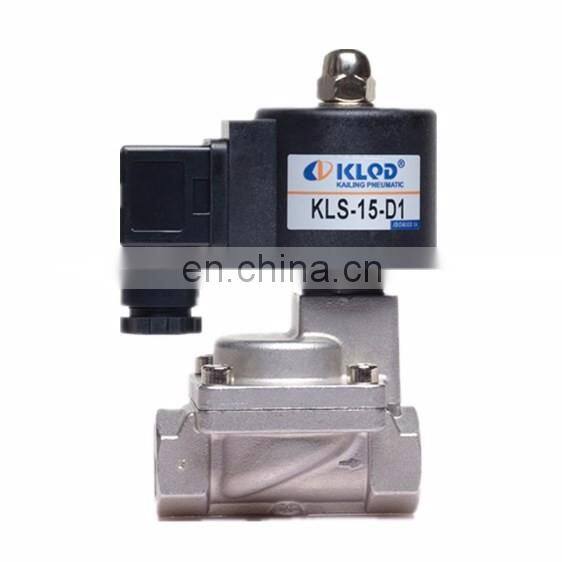

2/2 Way KLS Series KLS-15-D1 Stainless Steel High Pressure Pilot Piston Type DC12V Solenoid Valve

KLS
15
V
NO
D1
AC220V
Specification Code
KLS:KLQD Stainless Steel Pilot Piston Type Solenoid Vale
Port Size
15:G1/2''
20:G3/4''
25:G1''
32:G1-1/4''
40:G1-1/2''
50:G2''
Other customized
N:NPT
P:PT
Sealing Material
Blank:PTFE
V:VITON
E:EPDM
Other customized
Latching coil only use for rubber sealing
Blank:Normally Closed
NO:Normally Open
T:DIN coil with Timer
Customized Coil
D1:IP65 DIN 16433LP
D2:IP65 DIN AB410HP
D3:IP65 DIN AB510LP
D4:IP65 DIN AB510HP
L:IP65 DIN Latching Coil(Limited to DC6,12,24)
LD1:IP65 DIN 16433LP with LED
LD2:IP65 DIN AB410HP with LED
LD3:IP65 DIN AB510LP with LED
LD4:IP65 DIN AB510HP with LED
LL:IP65 DIN coil with LED latching coil(Limited to DC6,12,24)
W:IP65 wiring type coil AB410B
Z:Ex-proof coil 1680
A:IP67 waterproof coil 16431
Other customized coils
Standard Voltage
DC12V
DC24V

AC24V 50Hz/60Hz
AC110V
50Hz/60Hz
AC220V
50Hz/60Hz
Model
KLS-15
KLS-20
KLS-25
KLS-32
KLS-40
KLS-50
Port Size
G1/2''
G3/4''
G1''
G1-1/4''
G1-1/2''
G2''
Operation Medium
Steam,air,water,oil(below 50CST fluid),micro-corrosive media,multiple chemical fluids
Orifice Size
15mm
20mm
25mm
32mm
40mm
50mm
C Value
5
6
13
20
28
39.5
Pressure Difference
The minimum pressure:0.05MPa    the maximum pressure reference pressure table
When the medium is steam: the maximum operating pressure of 1.2MPa,
short-term maximum operating pressure of 1.6MPa
Rubber:Max.1.6MPa
Protection Degree
IP65; IP67; Ex-proof Grade; Ex mb I Mb; Ex mb II T4 Gb; DIP A20 TA T4
Detailed Images
Packing & Delivery
Payment
Our Company

NingBo Kailing Pneumatic Co ,LTD. is a professional company engaged in the production of Solenoid Valves and pneumatic parts.Our company has strong techologies and high capability in research and development of new products.The company has fine workmanship amd perfect inspection techniques. The products include Solenoid Valve , Air source treatment unit , control element and executive element etc which are widely used in industries such as machinery , metallurgy, food , textile and environmental protection .
