Sep Shipping Free 2 Way Valve DN15-25 AC 220V DC Electric 24V Water Control Valves Motor Drive Flow Control Motorized Ball Valve
- 1000 Piece / Pieces per Month
- T/T Credit Card
- CWX-15N 2 way brass electric motorized underground water ball valve bronze
- 5v 3.6v DN20 CWX-15N 2 way brass pressure reducing mini wireless electric motorized water ball valve
- industrial 12v 24v 2 3 way heating water horizontal vertical level cpvc electric actuated ball valve
- industrial ss 24vdc 2 3 way heating water level cpvc spring return ball valve
- Motorized industrial 12vdc 2 3 way heating water level cpvc ball valve
- Promotional Control Valve Motorized Ball 12vdc 3 way flange type ball valve
Product Details
Brand Name: | CWX | Place of Origin: | Tianjin, China | Model Number: | CWX15n |
Application: | General | Structure: | Ball | Standard or Nonstandard: | Standard |
Power: | Solenoid | Port Size: | DN8-DN32 | Media: | Water |
Temperature of Media: | Normal Temperature |
Product Description

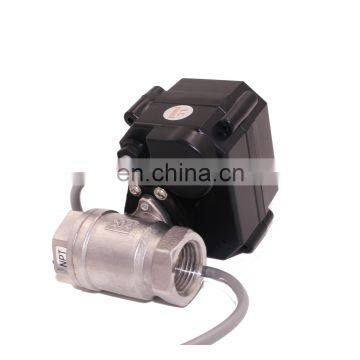

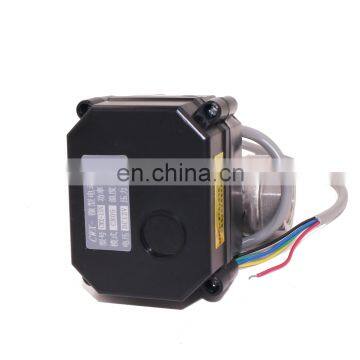

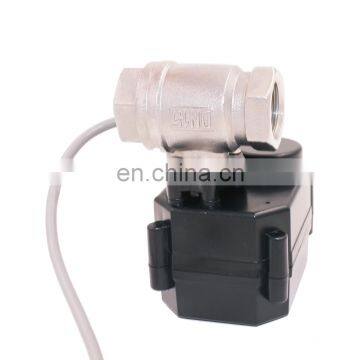

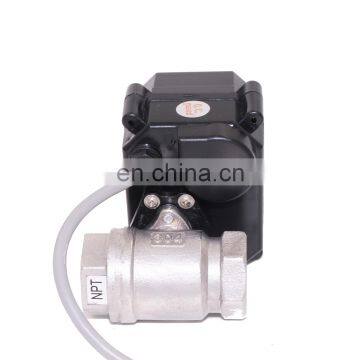

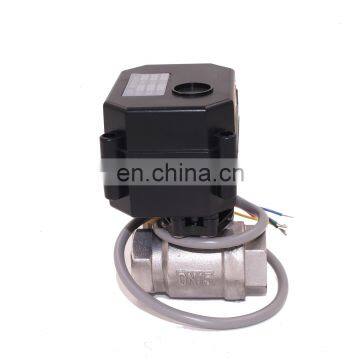

Sep Shipping Free 2 Way Valve DN15-25 AC 220V DC Electric 24V Water Control Valves Motor Drive Flow Control Motorized Ball Valve
1,Metal gearbox and POM gear design, low noise, perform reliably .
2,Long service life: more than 100000 circles.
3,electric limit and machinery limit design, located accurately, avoid gear run continuously.
4,Mufti-angle assembling, easy to install.
5,Float ball structure, no leakage,especially suitable for heavy pollution conditions.
1.Heat energy meters, fire work, save water system.
2.Auto control system, industrial mini auto control equipment.
3.Water saving equipment, drinking water equipment.
4.Air-conditioning fan coin(HVAC).
Product Model | Rated Voltage | Working current | Output Torque | Opening time | Caliber adapter |
CWX-15Q | DC3-6V DC12V AC/DC9-24V AC220V AC85-265V | Max100mA (CR04 except Max150mA) | Max1.5NM | <3s | DN8-DN20 |
CWX-15N | Max2.0NM | <5s | DN8-DN32 | ||
Working pressure | Power | Medium temperature | Control Mode | IP Grade | Special function |
Max1.0Mpa | <3W | 0-90℃ | CR01 CR02 CR02+ CR03 CR03A CR04 CR05 | IP65 | CR01 CR02 CR03 CR04(with singal feedback) |
Brass
| Connection-Way | Sizes | d | H | L |
Double-internal thread Full-Port | DN8 | 8 | 46 | 31 | |
DN15 | 15 | 57 | 38 | ||
DN20 | 20 | 71 | 45 | ||
DN25 | 23.5 | 72 | 49 | ||
Double-internal thread hole shrinkage | DN10 | 8 | 46 | 31 | |
DN20 | 15 | 66 | 38 | ||
DN25 | 20 | 72 | 47 | ||
DN32 | 25 | 86 | 60 | ||
Vertica Three-Way | DN15 | 12 | 63 | 49 | |
DN20 | 15 | 66 | 53 | ||
Iinternal and external Thread | DN15 | 15 | 63 | 38 | |
DN20 | 15 | 66 | 38 | ||
DN32 | 20 | 76 | 50 | ||
Double-internal thread | DN15 | 15 | 68 | 38 | |
SS304/316 | Double-internal thread | DN8 | 8 | 46 | 31 |
DN10 | 8 | 46 | 30.5 | ||
DN15 | 15 | 55 | 38 | ||
DN20 | 15 | 63 | 39 | ||
DN20 | 20 | 71 | 45 | ||
DN25 | 20 | 75 | 47 | ||
DN25 | 25 | 72 | 49 |
Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional
R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed the
ISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regions worldwide.
Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing, we are confident in providing you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice.
1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 year. So we have advantage in price. We also could do OEM.
2. What's the Payment Method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.
5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
