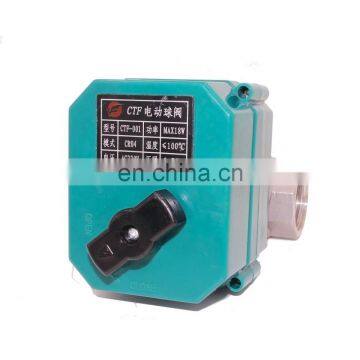

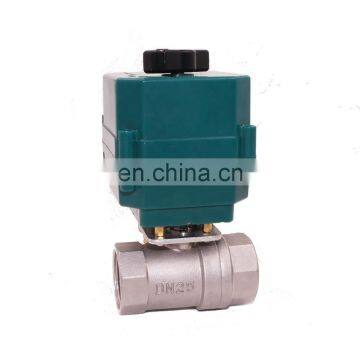

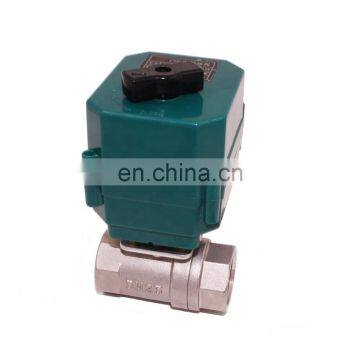

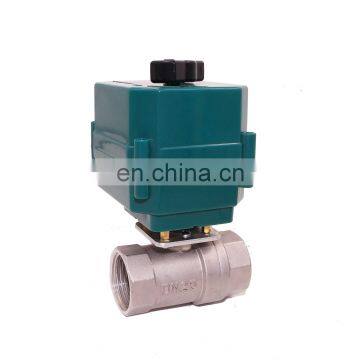

DN50 50mm 2" 2 way stainless steelball valvemotorized actuator control valve 12v with switch operation
- 1000 Piece / Pieces per Month
- T/T Credit Card
- Best selling valve in 2019 3/4" 2 way stainless steel 304/316 count down ball vale with electric actuator 12v
- China suppliers DC9-24V DN8-DN32 automatic timer two way brass ball valve with electric actuator
- 4-20mA-Discount Flow Control Electric Linear Actuator Proportional Ball Valve for Water 12v 24v
- TF Mini Motor 220V AC110V,AC120V Automatic Control 2 Way Brass Drain Shut Off System Water Valve
- Hot Selling DN20 24V 3/4inch mini motorized ball electric actuator valve water for Other Electrical Equipment
- Timely Solution Automatic Flush Air Vent Mini Motorized Ball Valve for Irrigation
Product Details
Brand Name: | CTF | Place of Origin: | Tianjin, China | Model Number: | CTF-001-DN50 |
Material: | Stainless Steel | Application: | General | Structure: | Ball |
Standard or Nonstandard: | Standard | ||||
Port Size: | DN50 | Media: | Water | Temperature of Media: | Medium Temperature |
Product Description
1.Simple shape, small size, all-metal gear driving, reliable performance, large torque
up to 15NM, is the interface between mini and industrial-grade valve, the valve sealed
with float structure, no dripping and suitable for heavy dirt and long-term non-action occasions.
2.Electrical and mechanical double limit, accurate positioning, high consistency.

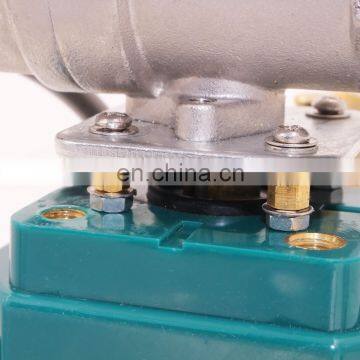

3.The connection of actuator and valve belong to ISO5211 standard, flange type
F03, F05,convenience for user choose valve body. And supply brass, stainless steel
ball valve and PVC ball valve, IP65 enclosure, can be used in a relatively humid environment.
4.Position indicator and manual override function (suitable for sudden power failure
or accident emergency switch )
1. University LABS, automotive laboratories.
2. Drug production, diesel fuel saving, etc.
3. Small equipment such as water saving, automatic control system and industrial
automatic control in colleges and universities.
4. Agricultural irrigation, environmental protection, water supply and drainage, water treatment works.
5. Water-saving appliances, drinking water equipment, etc.
Product model | Rated voltage | Output torque | Open/close time | Control model | Working pressure | Special function |
CTF001 | DC3-6V DC12V A/DC9-24V AC220V AC85-265V | Max10NM | <12s | CR01 CR02 CR03 CR04 CR05 | Max1.6Mpa | CR01 CR02 CR03 CR03 CR04(with signal feedback) |
Motor voltage | Power | Working current | Medium temperature | Size | IP Garde | |
5V | Max18W | <500mA | 0-90℃ | DN8-50 Two-way DN15-25 Three-way | IP65 | |
12V | Max22W | <300mA | ||||
24V | Max22W | <100mA |
Material | Sizes | d | L | H |
SS304/316 | DN15 | 15 | 62 | 55 |
DN20 | 20 | 71 | 63 | |
DN25 | 25 | 81 | 78 | |
DN32 | 32 | 93 | 84 | |
DN40 | 40 | 102 | 91 | |
DN50 | 50 | 118 | 107 | |
UPVC | DN15 | 15 | 121 | 50 |
DN20 | 20 | 135 | 62 | |
DN25 | 25 | 150 | 69 | |
DN32 | 32 | 165 | 82 | |
DN40 | 40 | 181 | 99 | |
DN50 | 50 | 206 | 122 |
Material | Sizes | d | L | W | H |
Horizontal Three-way (Brass) | DN15 | 15 | 61 | 48 | 46 |
DN20 | 20 | 67 | 48 | 54 | |
DN25 | 25 | 96 | 74 | 68 | |
DN32 | 32 | 89.32 | 68 | 57 | |
Horizontal Three-way (SS304/316) | DN15 | 15 | 80 | 52 | 54 |
DN20 | 20 | 82 | 62 | 59 | |
DN25 | 25 | 87 | 67 | 71 | |
DN32 | 32 | 115 | 90 | 89 |
Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve
and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed theISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regionsworldwide.
Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing,
we are confident inproviding you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice.
1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.
2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.
5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
