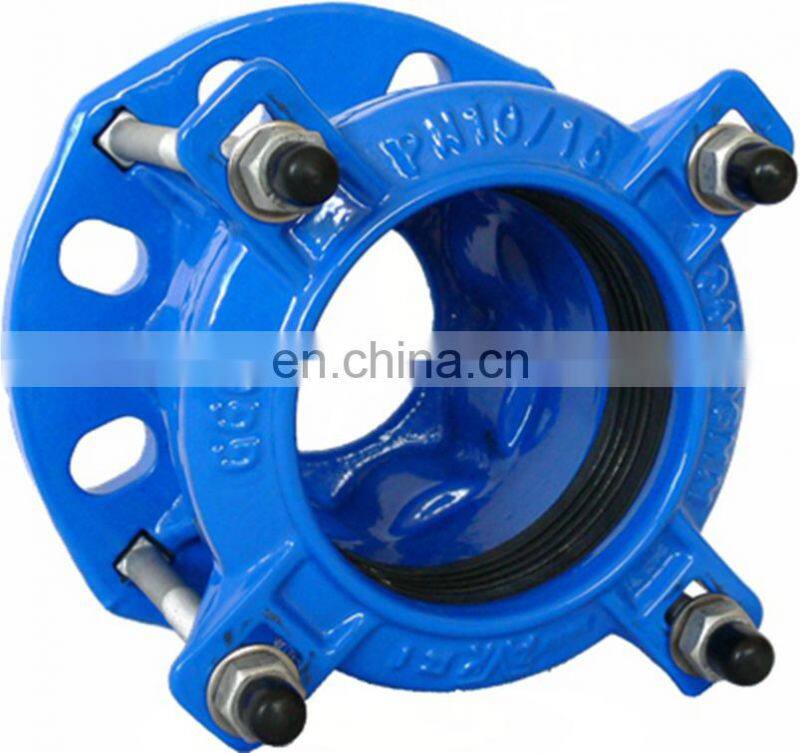

ISO2531 Standard waterworks industry use potable water pipe Ductile iron universal flange adaptor PN16
- 400 Ton / Tons per Month
- qingdao
- T/T Credit Card
You May Like
Product Details
Brand Name | VTM | Place of Origin | Shandong, China | |
Model Number | 2"-24" | |||
Shape | Equal | |||
Technics | Casting | Connection | Flange | |
Product Description
Ductile iron flange adaptor
Description
Ductile iron flange adaptor
Use
For use with potable & swerage water or waste
Manufacturing Standard
Manufactured to ISO2531 BSEN545
Coating
Coated to ISO3270
This comprehensive range of fittings are designed to meet the requirements of the
joint ISO2531 standard. This standard
ensures that all pipe fittings have consistent
dimensions and manufacturing tolerances,
and are fully interchangeable with other ISO2531 fittings.
Features
- Complies to ISO2531 Standard
- High strength, light weight ductile iron construction
- Socket ends or spigot ends to ISO2531
- Compatible with all current pipe types
- Standard spigot ends to ISO2531
End features
Flanged Ends
Flanged ductile iron flange adaptors are drilled to standard ISO2531 or with special drillings as required.
Seal
Seal is a range of socketed rubber ring joint end connections, for ductile iron fittings. The interchangeable dual rubber seal allow the
same fitting to be used for pipes with a common nominal bore with varying outside
diameters, such as series 1 and series 2 PVC pipes, ductile iron and steel pipe.
Universal flange adaptor PN 16
For cast iron, ductile iron, steel, PVC-U, PVC-M, PVC-O, AC and copper pipes
Flange drillings suit AS 4087 Fig B5; AS 2129 Tables D and E
Use: |
|
Materials: |
|
For water and sewage applications to |
|
Gland rings, |
Ductile iron, AS 1831 Gr. 400-12 min. |
max. 40°C |
|
flange |
|
Angular deflection of ±4 degrees |
|
Coating |
Fusion bonded epoxy to |
16 bar / 160 metres allowable operating |
|
|
AS/NZS 4158 |
|
|
|
|
pressure (AOP) |
|
Rubber seals |
Water: EPDM to AS 1646 |
Non tensile |
|
|
AS/NSZ 4020 compliant |
|
|
|
|
This product provides no longitudinal |
|
Nuts |
SS 316, PTFE coated |
joint restraint |
|
Washers |
SS 316 |
|
|
||
|
|
Bolts |
SS 316 |
|
|
|
|
|
|
|
|
Approvals: |
|
|
|
All materials are AS/NZS 4020 |
|
|
|
compliant |
|
|
|
|
|
|
Universal flange adaptor PN 16
For cast iron, ductile iron, steel, PVC-U, PVC-M, PVC-O, AC and copper pipes
Flange drillings suit AS 4087 Fig B5; AS 2129 Tables D and E
Component list |
|
|
|
|
|
|
1. |
End cap |
3. |
Nut |
5. |
Gland ring |
7. Flange |
2. |
Washer |
4. |
Bolt |
6. |
Rubber seal |
|
|
|
|
|
|
|
Dimensions
Notes
- Minimum wall thickness for other pressure classifications shall comply with ISO2531
- For details of spigots, see Lengthening Pieces brochure.
- For details of flanges, see OUR Brochure.
- For details of dimension f and socket profile, refer to manufacturer.
Welcome to the Valtech Products website;the home of one of the China's largest stockists of
Ductile Iron Pipe and Ductile Iron Pipe Fittings
for supply to the global Waterworks Industry.
We are proud to present our range of high quality
Fittings, Couplings and Valves
to the global Waterworks industry.
The Product Range
Supply a diverse range of components for many different sectors of the waterworks industry. We have a core of quality suppliers and we specialise in Ductile Iron pressure pipeline products for the water and wastewater industries of the world.
As part of the finishing process, we offer a comprehensive range of recognised finish coatings and linings that are safe for use in potable water pipelines. Please refer to our Quality pages.
Our range includes:
- Ductile Iron Pipes, Socket Spigot & Fabricated
- Ductile Iron Fittings with Flanged, Socketed or Mechanical joints
- Ductile Iron Fittings to suit Metric PVC pipe
- Flange Adaptors and Couplings
- Stainless Steel Tapping Saddles
- Waterworks and Commercial Services valves in both Cast and Ductile Iron
We can produce fittings up to 1600mm nominal bore, with a working pressure of up to 40 bar. Valve products are produced to all the relevant European Standards.
have a long history of supplying Quality EN, BS, DIN and ISO standard products to the United Kingdom and many other European countries including Germany, Holland, Belgium, Spain and Italy.
