Newest 808nm Diode Laser Nono Hair
Removal Mini
808nm Diode laser introduction:
C: Working principles
D: Diode laser application
E: Machine advantages
F: Technical parameter
G: Operation screen
H: Hand piece
I: Warranty& Service
J:Packing standard
K:payment terms you can choose
C.Diode laser Working principle:
808nm Diode Laser Depilator penetrates into the dermis, and is absorbed by the targeted melanin in the hair follicles. This will form enough thermal energy to destroy the targeted follicular epithelium because of the laser-induced photothermal effect.
In contrast, the surrounding skin tissue is spared due to lack of melanin. This way, the surrounding skin remains intact, while the hair follicles are selectively affected, which leads to non-invasive permanent hair reduction.
D.Diode laser application:
808nm diode laser hair removal
Any area of the body for hair removal, such as hairline, hair around lip area, beard, armpit hair, hair on arms, legs, breast and bikini area.
E.Machine advantages:
Unsurpassed safety and efficacy, reliability, and ease-of-use.
High-power diode technology delivers hiht fluency.
Large spot size, user-selected pulse width, aggressive contact cooling.
F.Technical parameter:
| Item | Parameter | Note |
| Wavelength | 808nm+/-10nm | 940nm optional |
| Pulse width | 25ms~950ms | |
| Repetition Rate | 1Hz~20Hz | |
| Energy Fluence | 0~120J/cm2 | Up to 150J/cm2 optional |
| Beam Type | Collimated | Un-collimated optional |
| Skin Cooling | TEC+Sapphire | <5°C |
| laser spot size | 10X16 mm | |
| Laser Cooling Liquid | Purified Water | Tap water allowed |
| Water Tank Volume | 3.0~3.5L | |
| Hand piece Flow Rate | 3.5~4.0L/min | |
| LCD Screen | 8''Touch LCD | 6''~10.4" optional |
| Pedal Switch | Support | |
| Environment Temperature | 5~30°C | |
| Environment Moisture | <80% | |
| Input VAC | 220VAC/50-60Hz | 110VAC optional |
| Dimension | 40X50X90cm | Optional |
| Weight | 40KG | Optional |
| Parts | Quantity | Note |
| Laser Machine | 1 SET | Available custom logo printing/attaching |
| Hand Piece | 1 PC | Available custom logo |
| Manual | 1 PC | According to custom request |
| CE(Electrical Test) Report | 1 PC | |
| VAC Plug Wire | 1 PC | |
| Pedal Switch | 1 PC | |
| Protection Goggles | 2 PCS | |
| CPC Water Connectors | Several PCS | |
| Silicone Soft Tube | 1 PC |
G:.Operation screen:

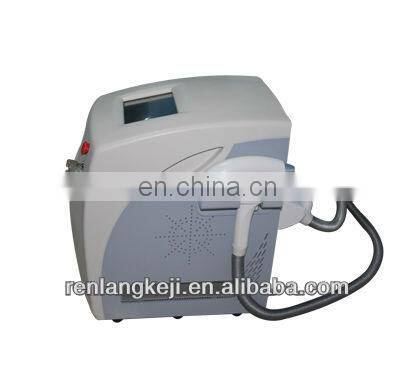

H.The Host:

I.Warranty& Service:
There is a user’s manuals for detailed instructions on the introduction, the operation, the maintenance, training video etc.
J.Packing standard:
1. Standard export carton, strong and firm enough for oversea shipping.
2. Selective air aluminum case, convenient for transfering from your original address to revised place
3. Carton is filled with EPE (Pearl cotton) for fixation and anti-collision.
K.payment terms you can choose:
L.The other verison:portable 808nm diode laser for hair removal beauty machine
Best After-sale Service:
1. One year warranty for the mainframe without charges for components or repairing.
2. Free trainingfor operate of the equipment in our company.,which provide by our specialized training.
3. On-line services.For example,technical consultancies provided byour skilled technique group concerning,and after-sale maintenance and more.
4. OEM/ODMservices are available. We haveour own developing and design deprtment.
