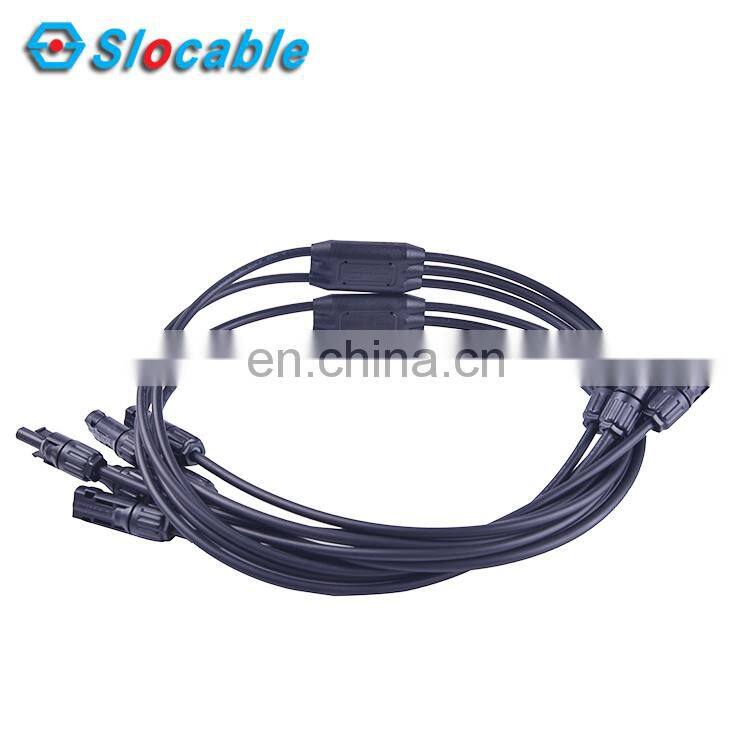

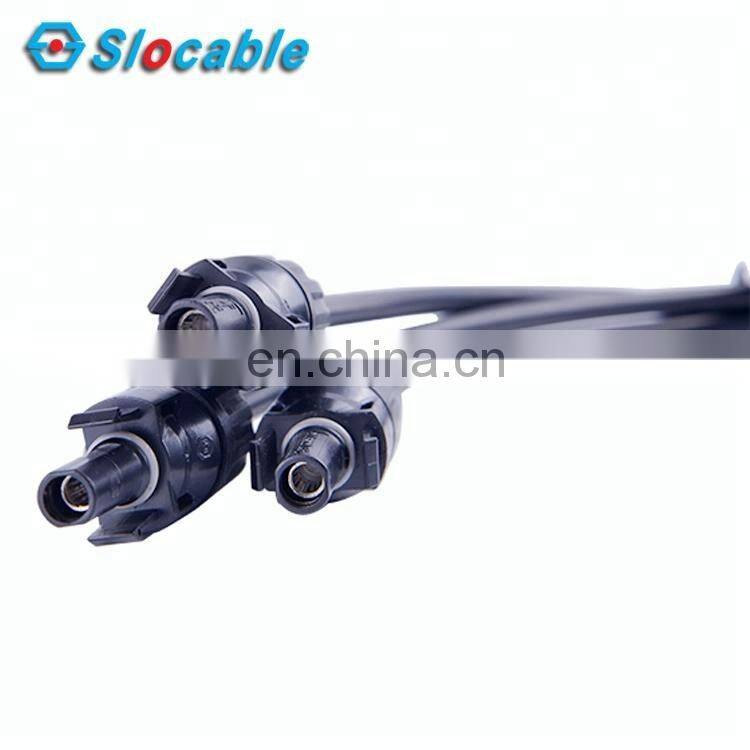

TUV and CE approved CN40 solar energy connector
Advantage
|
|
| Technical Data | |
|
Contact material: Copper, Tin plated |
Overvoltage category: CATⅢ |
|
Insulation material: PPO |
Pollution degree: 2 |
|
Degree of protection: IP2X/IP68 |
Flame class: UL94-V0 |
|
Rated current: 30A(2.5mm2), 50A(4.0mm2, 6.0mm2) |
Insertion force: Max.50N |
|
Test voltage: 8kV(50Hz, 1min) |
Withdralwal force: Min.50N |
|
Contact resistant: <0.5mΩ |
Ambient temperature range: -40℃~+90℃(IEC) |
|
Safety class: Ⅱ |
Connecting system: Crimp connection |
|
Suitable cable cross sections: 2.5/4.0/6.0/10.0mm2 14/12/10/8AWG | |
Male of CN40 connector
| Order No. | Part P/N | Cable Spec | ||
| Connector | Terminal | Conductor Size | Cable OD | |
| CN40-CMMM-14 | CN40-CMMM-H | CN40-CM-MT14 | AWG 14(2.5mm2) | Φ4.5~Φ8.5 |
| CN40-CMMM-12 | CN40-CM-MT12 | AWG12(4.0mm2) | ||
| CN40-CMMM-10 | CN40-CM-MT10 | AWG10(2.5mm2) | ||
Female of CN40 connector
| Order No. | Part P/N | Cable Spec | ||
| Connector | Terminal | Conductor Size | Cable OD | |
| CN40-CFPM-14 | CN40-CFPM-H | CN40-CM-FT14 | AWG 14(2.5mm2) | Φ4.5~Φ8.5 |
| CN40-CFPM-12 | CN40-CM-FT12 | AWG 14(2.5mm2) | ||
| CN40-CFPM-10 | CN40-CM-FT10 | AWG 14(2.5mm2) | ||
