Help CenterHotsell Cable Assembly PV Cable With APP Connector Battery Connector 30A for Solar System
Related Products
-
Solar Panel Extension Cable WireUS$ 6.9 - 7.5MOQ: 1 Set -
50A 600V SB50 APP Connector to Solar Connector in Battery ConnectionUS$ 3 - 10MOQ: 100 Pieces
-
2020 Hot Sell Cheap Price Solar DC Connector Terminal Crimping Tool Set for Wire, TerminalUS$ 50 - 54MOQ: 1 Piece
-
Slocable Multifunctional Solar PV Tool Kits With Crimper, Wire Stripper, Solar Connector, SpannerUS$ 50 - 54MOQ: 1 Piece
-
Slocable Factory Supply Solar Connector Crimper Tool Kit for 2.5mm 4mm 6mm Copper PinsUS$ 50 - 54MOQ: 1 Piece
Description of Anderson connectors:
·Silver-plated contact
·Different contact barrel size for choice(12AWG~1AWG )
·Genderless design to reduce the stocking
·Difference color recommended different voltage code
·Quick connect/disconnect
·Operating temperature: -20°C ~ +105°C
·Withstand voltage:2200V
·Mechanical life: 10000 times
Technical Data of Anderson connectors:
|
|
SC50 |
SC175 |
|
|
UL Rating Voltage |
50amps/600vdc |
175amps/600vdc |
|
|
Rating Current |
50amps on 6awg wire produces 30°C rise |
175amps on 1/0awg wire produces 30°C rise |
|
|
Maximum Wire Insulation Diameter |
0.44"/11mm |
0.75"/19mm |
|
|
average terminal holding force |
About 50lbs |
About 300lbs |
|
|
average contact resistance |
With 11/4" (32mm) of 6awg wire 200 micro-ohms |
With 13/4" (45mm) of 1/0awg wire 100 micro-ohms |
|
|
average insertion force |
15lbs (6.75kg) |
25lbs (11.25kg) |

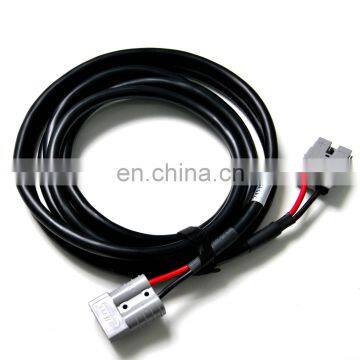

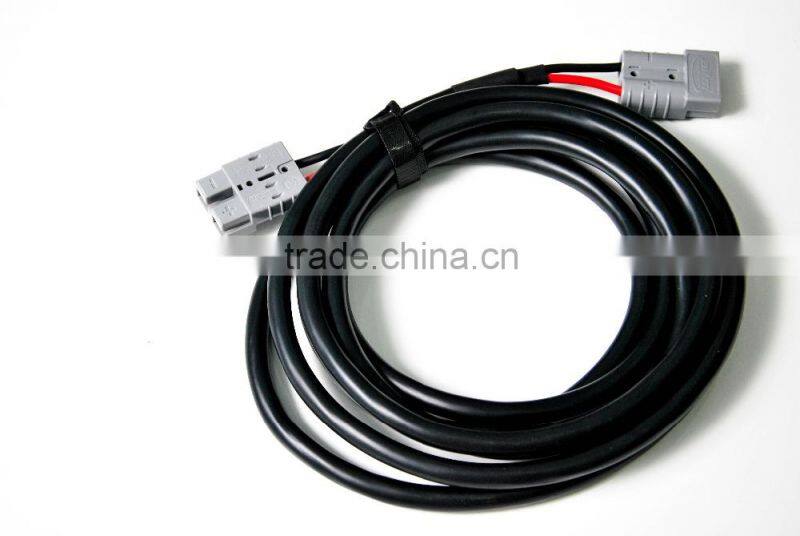

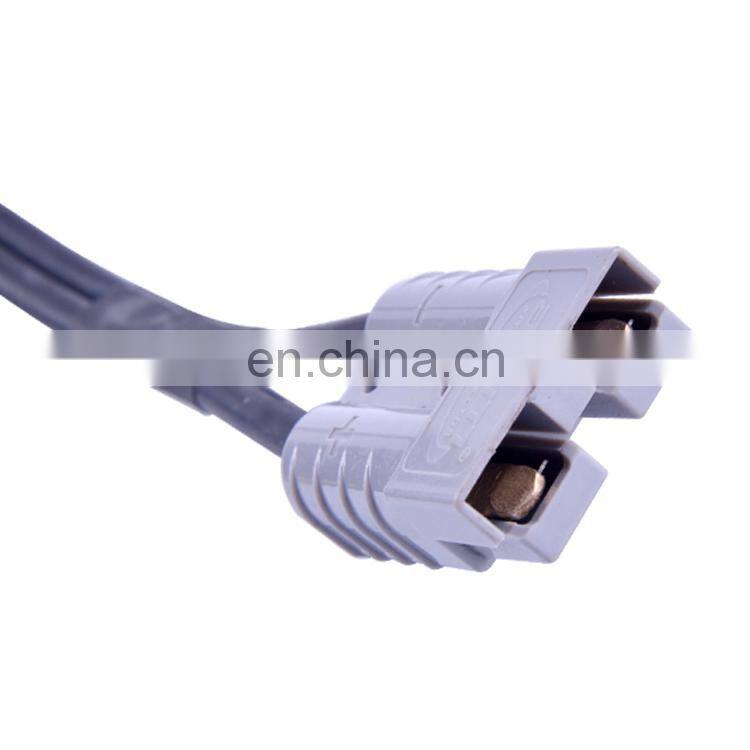

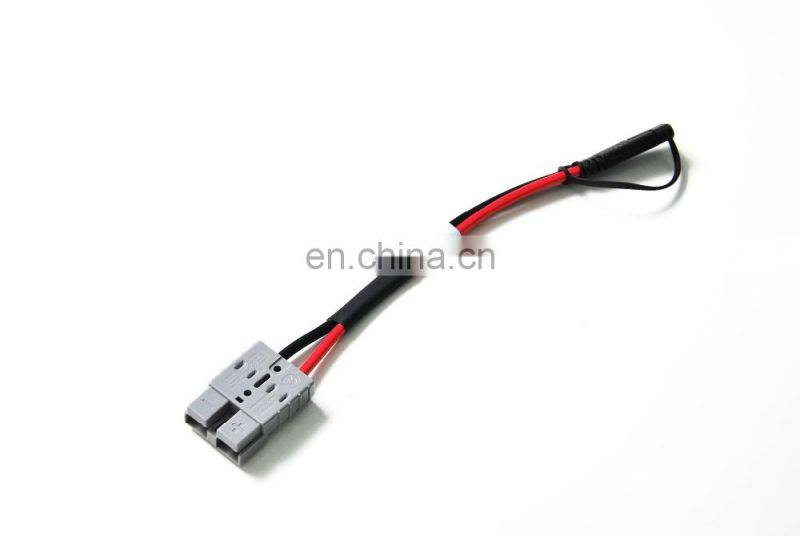

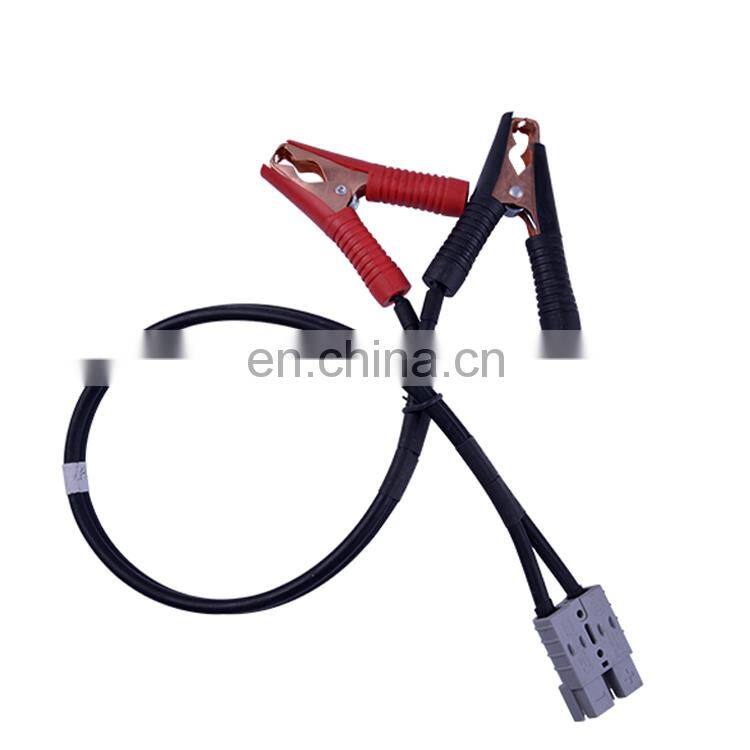

Product pictures :

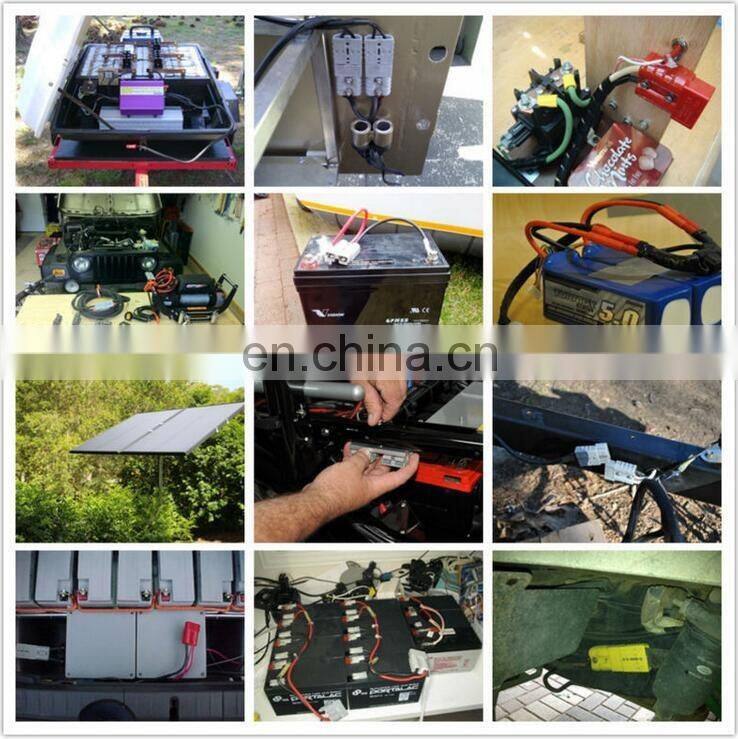

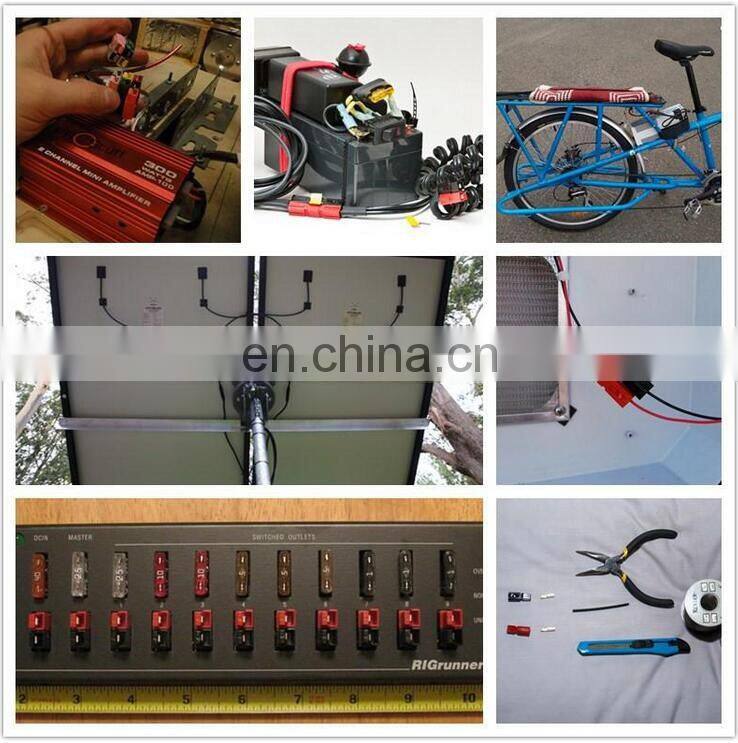

Application:
Our Projects :
