Slocable Solar Guangdong Province Hot Sell Connector dc Power Plug Connector

Slocable Solar Guangdong Province Hot Sell Connector dc Power Plug Connector photo-1

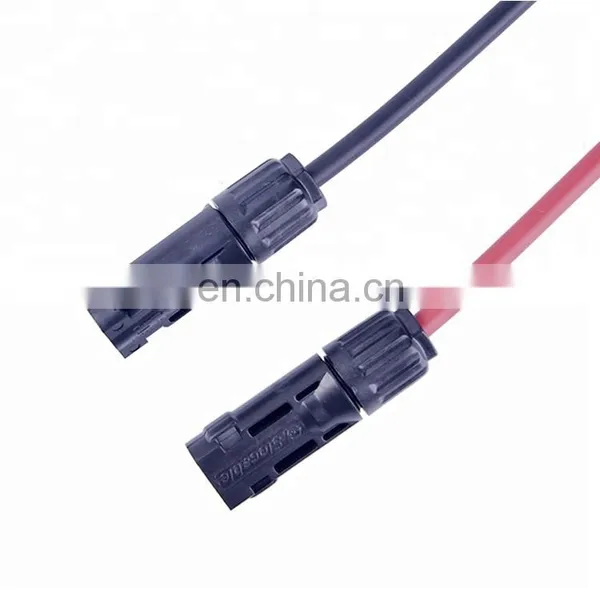

Slocable Solar Guangdong Province Hot Sell Connector dc Power Plug Connector photo-2

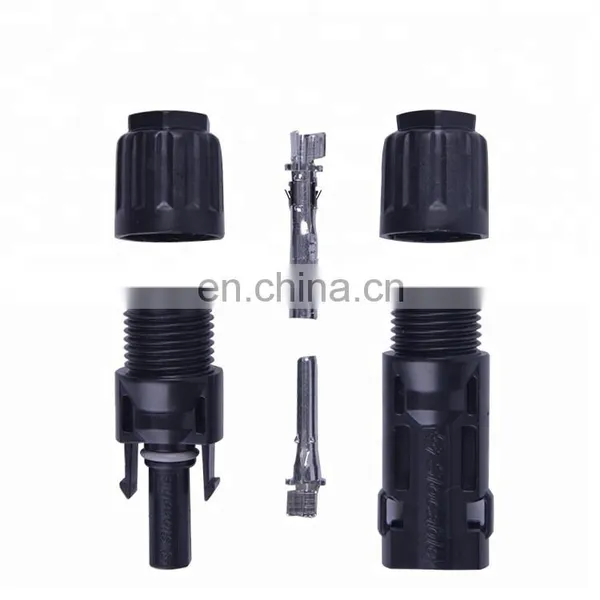

Slocable Solar Guangdong Province Hot Sell Connector dc Power Plug Connector photo-3

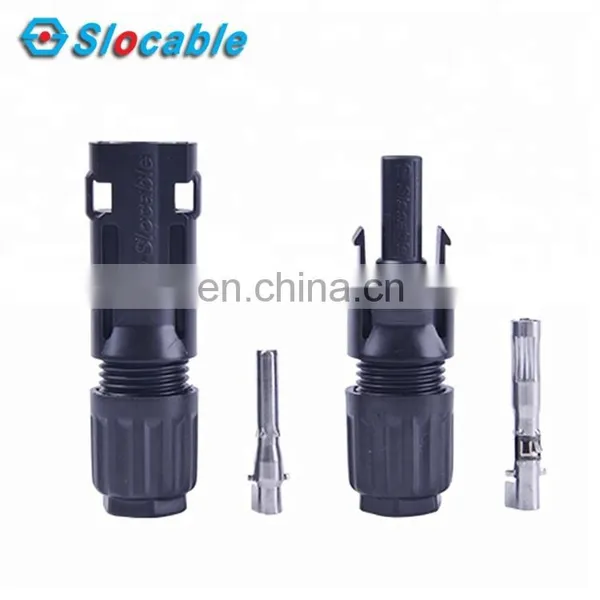

Slocable Solar Guangdong Province Hot Sell Connector dc Power Plug Connector photo-4

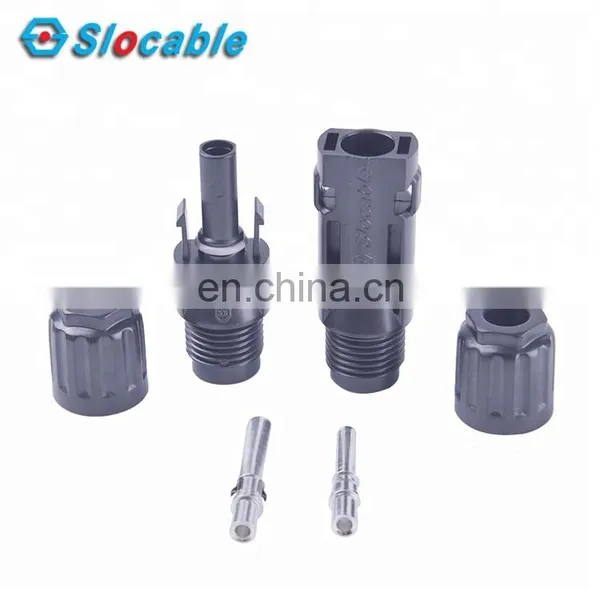

Slocable Solar Guangdong Province Hot Sell Connector dc Power Plug Connector photo-5
Slocable Solar Guangdong Province Hot Sell Connector dc Power Plug Connector photo-6
Slocable Solar Guangdong Province Hot Sell Connector dc Power Plug Connector photo-7
US$ 0.45 - 1 MOQ: 200 Sets
Key Specifications
Get Latest Price
Brand Name:
Slocable
Place of Origin:
Guangdong, China
Model Number:
CN40-CM plug connector
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Slocable
Place of Origin Guangdong, China
Model Number CN40-CM plug connector
Type MCX



Slocable solar Guangdong province hot sell connector dc power plug connector



1·Simple on-site processing

2·Mating safety provided by keyed housings

3·Mutiple plugging and unplugging cycles

4·Accomodates PV cable with deferent insulation diamaters

5·High current carrying capacity

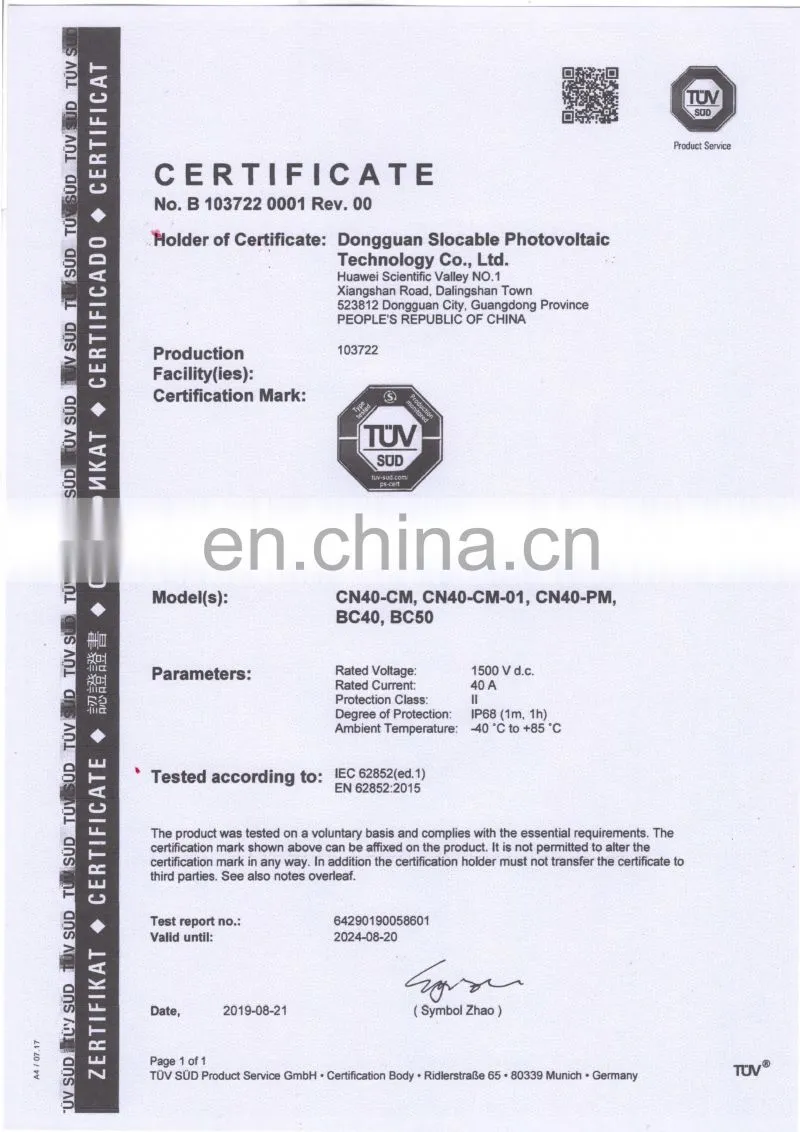

6·TUV and CE approved

7·Competive price



Technical Data

Rated current

40A

Degree of protection:

IP2*/IP68

Retaed voltage

1000V DC/1500V DC

Flame class  :

UL94-V0

Test voltage

6000V(50Hz,1min)



Safety class:

II

Overvoltage category

CATIII

Suitable class:

OD4.5-8.5(2.5-6.0mm²)

Contact resistance of plug connector

1.0mΩ

Insertion force/withdrawal force:

≤50N/≥50N

Contact material

Copper,tin Plated

Connecting System:

crimp connection

Insulation material

PPO

Temperature range:

-40~+125



 Male

Order No.

Part P/N

Cable Spec

Connector

Terminal

Conductor size(mm²)

Cable OD(mm)

CN40-CMMM-14

CN40-CMMM-H

CN40-CM-T14

AWG 14(2.5mm²)

ø4.5~8.5

CN40-CMMM-12

CN40-CM-T12

AWG 12(4.0mm²)

CN40-CMMM-10

CN40-CM-T10

AWG 10(6.0mm²)



 Female

Order No.

Part P/N

Cable Spec

Connector

Terminal

Conductor size(mm²)

Cable OD(mm)

CN40-CFPM-14

CN40-CFPM-H

CN40-CF-T14

AWG 14(2.5mm²)

ø4.5~8.5

CN40-CFPM-12

CN40-CF-T12

AWG 12(4.0mm²)

CN40-CFPM-10

CN40-CF-T10

AWG 10(6.0mm²)



 slocable solar Guangdong province hot sell connector dc power plug connectorslocable solar Guangdong province hot sell connector dc power plug connector

slocable solar Guangdong province hot sell connector dc power plug connectorslocable solar Guangdong province hot sell connector dc power plug connectorslocable solar Guangdong province hot sell connector dc power plug connectorslocable solar Guangdong province hot sell connector dc power plug connectorslocable solar Guangdong province hot sell connector dc power plug connector

slocable solar Guangdong province hot sell connector dc power plug connector





slocable solar Guangdong province hot sell connector dc power plug connectorslocable solar Guangdong province hot sell connector dc power plug connector
