IP68 Waterproof Solar Compatible Junction Box Connector Male Female Plug Socket
Product Description
Technical Data

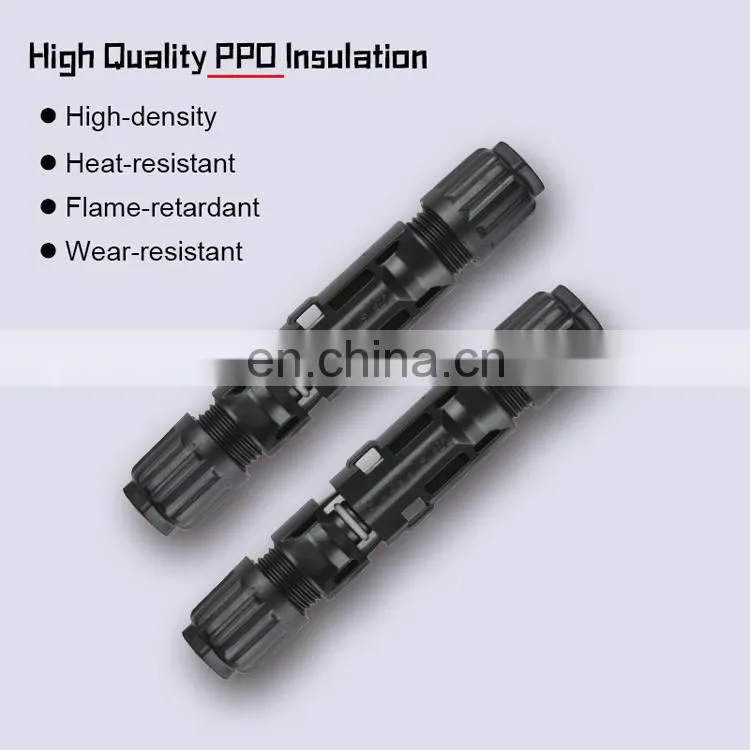

Insulation material: |
PPO |
Rated current: |
30A/50A |
|
Test voltage: |
8000V(50Hz,1min) |
Rated voltage: |
1000V DC/1500V DC |
| Contact resistance: | <5mΩ |
Degree of protection: |
IP68 |
| Overvoltage category: | CATIII/2 |
Flame class: |
UL94-V0 |
|
Safety class: |
II |
Contact material: |
Copper,tin plated |
| Temperature range: | -40℃ ~ +85℃ |
Suitable cable: |
2.5/4/6mm2, 14/12/10AWG |
| Connecting System: | Crimp connection |
Insertion force/ withdrawal force: |
≤50N / ≥50N |
Advantages of Product
- Simple on-site processing.
- Mating safety provided by keyed housings.
- Mutiple plugging and unplugging cycles.
- Accomodates PV cable with different insulation diamaters.
- High current carrying capacity.
- TUV and CE approved.
- Crimp connection.
Product Photos
Quality Comparison
Company Information
Frequently Asked Question
Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
Solar Cables, Solar Connectors, PV Fuse Holder,Circuit breakers and other
solar relative products.We're the Manufacturer with more than 11 years experience.
1
1) All raw material we selected the high quality one.
2) Professional & Skilful workers care every details in handling the producing.
3) Quality Control Department specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.
Q5: How Could I get the Sample?
We are honored to offer you samples,Samples is free provided,but need pay the courier freight.
If you have a courier account, you can send your courier to collect samples.
Q6: How long is the Delivery Time?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.
