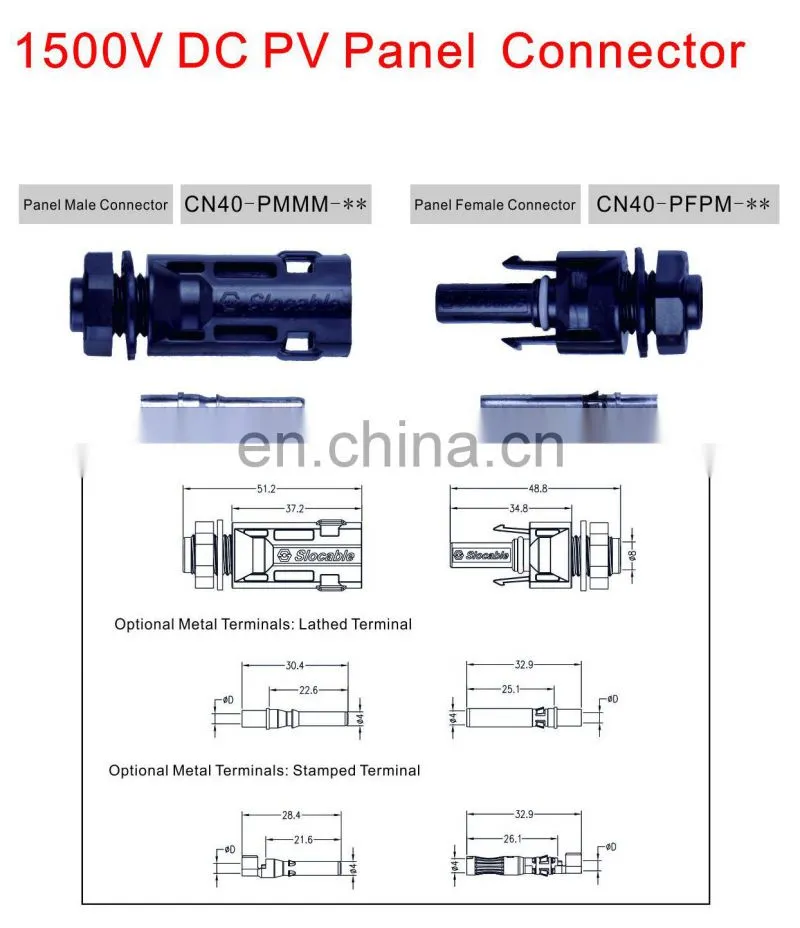

Male and Female Panel Coupler for PV Cables
| Technical data | |
| Insulation material | PPO |
| Rated current | 30A(2.5mm2) 50A(4.0mm2,6.0mm2) |
| Rated voltage | 1500V DC |
| Test voltage | 8kv(50HZ,1min) |
| Contact resistance | <0.5mΩ |
| Contact material | Copper,Tin plated |
| Degree of protection | IP2X/IP68 |
| Safety class | II |
Overvoltagecategory |
CATIII/2 |
| Flame class | UL94-V0 |
| Insertion force | Max.50N |
| Withdrawal force | Min.50N |
| Ambient temperature range | -40°C-+85°C(IEC) |
| Suitable cable cross sections | 2.5/4.0/6.0 mm2 14/12/10 AWG |
| Connecting system | Crimping connection |
Advantages of our connectors:
- Compatible for PV solar connector.
- Easy and quick for assembling.
- Material:PPO as insulation material and tinned copper as conductor ensure a firm connection after crimping the conductor to the cable and presence a perfect operation under heavy load.
- High carrying capacity:1500V DC rated voltage,30-50A rated current and IP68 water proof level perform well in PV system installation programs.
- Optional pins:different pins can be chosen to compatible with different insulation diameters(2.5mm2-10mm2/14AWG-8AWG)
- Quality reliable:TUV,CE and ISO certificates guarantee a 2 year warranty period and a 25-year working time.
- Safety design:lock design with special PV solar connector spanner tool avoids connector loosing and provides safety assurance.

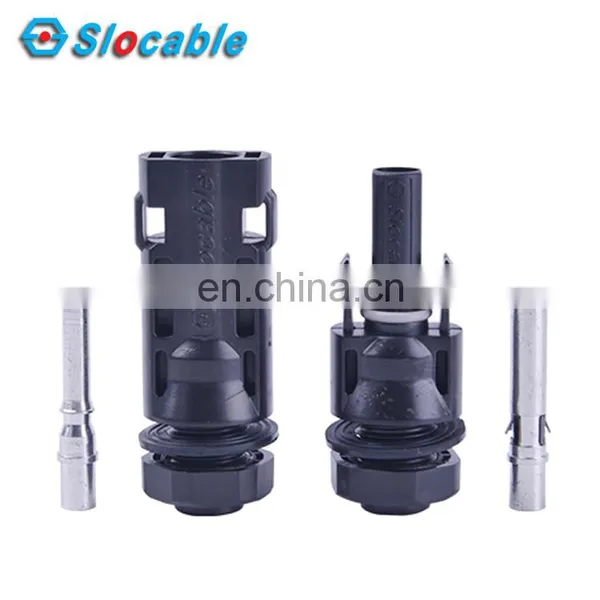

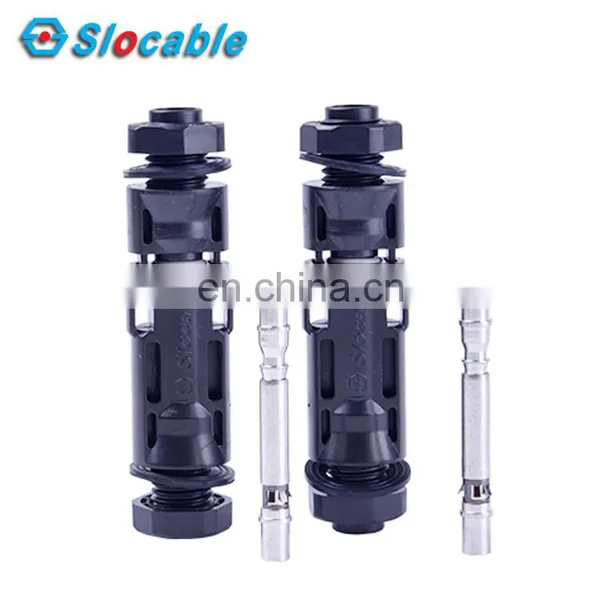

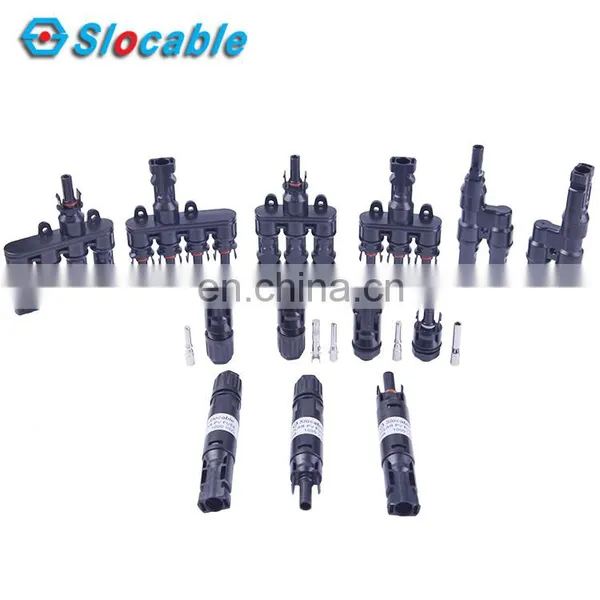

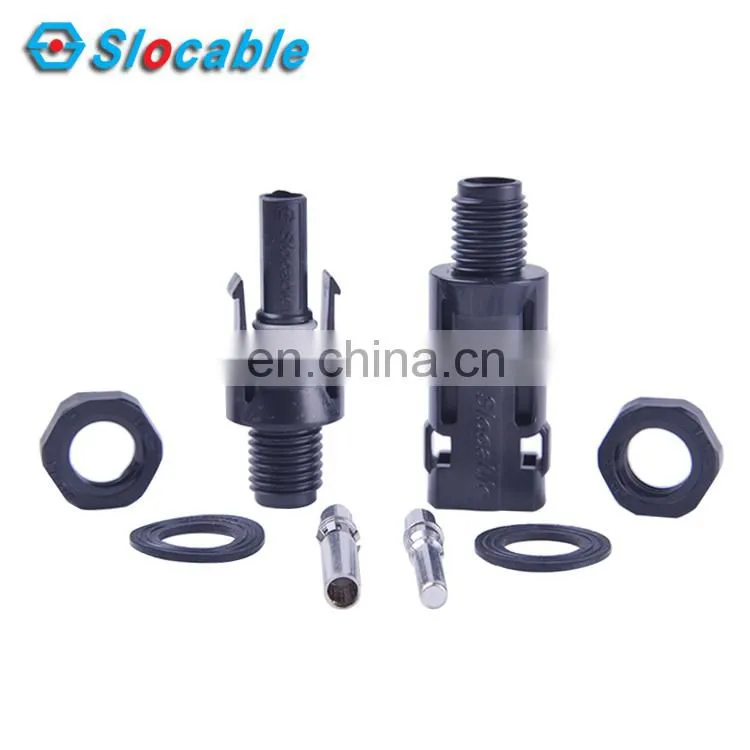

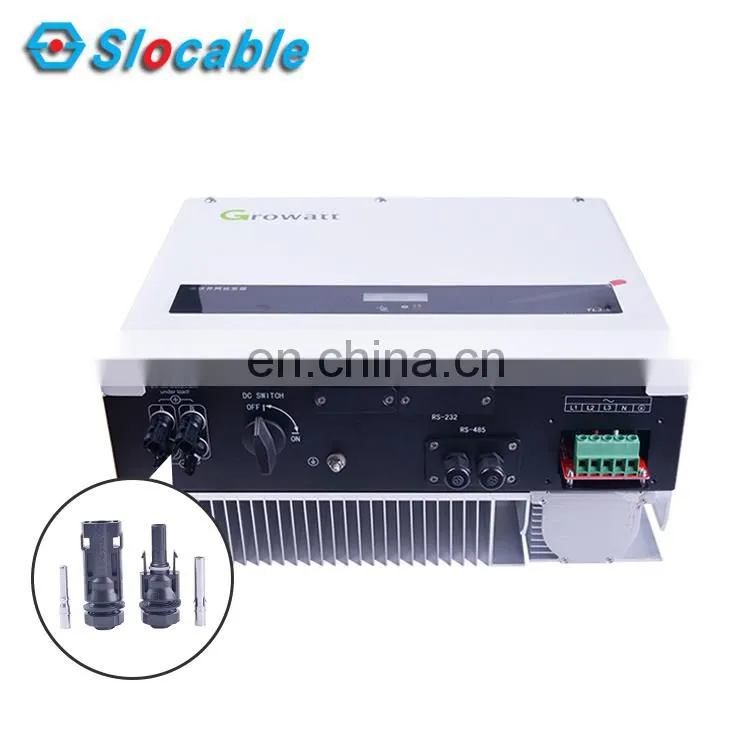

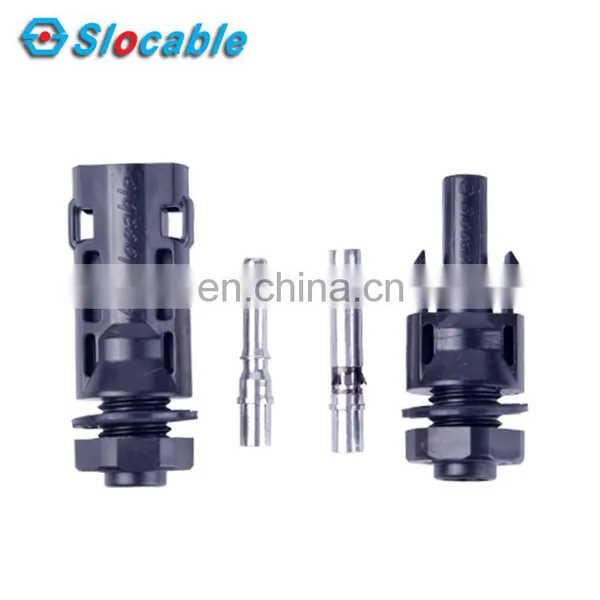

Detail pictures:
Latest 1500V TUV Certificate:
Click here to see other products:
Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
Solar Cables, PV solar connector, PV Fuse Holder,Circuit breakers and other solar relative products. We are the Manufacturer with more than 12 years experience.
Q2: How can I get the Quotation of the products
Message us by E-mail / TradeManager,We'll reply you within 1 hour in the Working Time.
Q3: How does your company do regarding Quality Control?
All raw material we selected the high quality one.
Professional & Skilful workers care every details in handling the producing.
Quality Control Department specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.
Q5: How Could I get the Sample?
We are honored to offer you samples,Samples is free provided,but need pay the courier freight.
If you have a courier account, you can send your courier to collect samples.
Q6: How long is the delivery time?
For Sample: 1-3 Days ; For small Orders: 3-10 Days;For mass Orders: 10-18 Days.
