Slocable 2.5mm2 4mm2 6mm2 DC 1000V Panel Cable Connector for Solar Inverter
Detail Information of PV Connector DC Receptacle
|
Technical Data of PV Connector DC Receptacle
Rated Current : 50A (2.5-6mm²) |
Degree of Protection: IP2*/IP68 |
Rated Voltage: 1000V/1500V DC |
Flame Class : UL94-V0 |
Test Voltage: 6000V (50Hz,1min) |
Safety Class: II |
Overvoltage Category: CATIII |
Suitable Class: OD4.5-8.5 (2.5-6.0mm²) |
Contact Resistance: <0.5mΩ |
Insertion / Withdrawal Force: ≤50N/≥50N |
Contact Material: Copper (Class5, Tin Plated) |
Connecting System: Crimp Connection |
Insulation Material : PPO |
Temperature Range: -40℃ ~ +85℃ |
| Order Number | Conductor Size | Panel Cut Size |
|
CN40-PMMM-14 CN40-PFPM-14 |
AWG 14(2.5mm2) | φ12.0mm ~ φ12.5mm |
|
CN40-PMMM-12 CN40-PFPM-12 |
AWG 12(4.0mm2) | |
|
CN40-PMMM-10 CN40-PFPM-10 |
AWG 10(6.0mm2) |

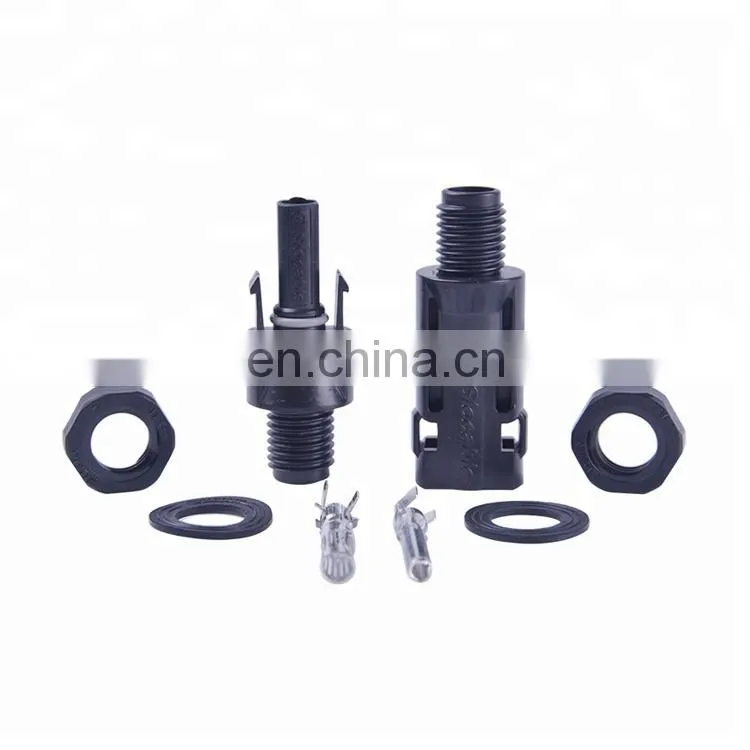

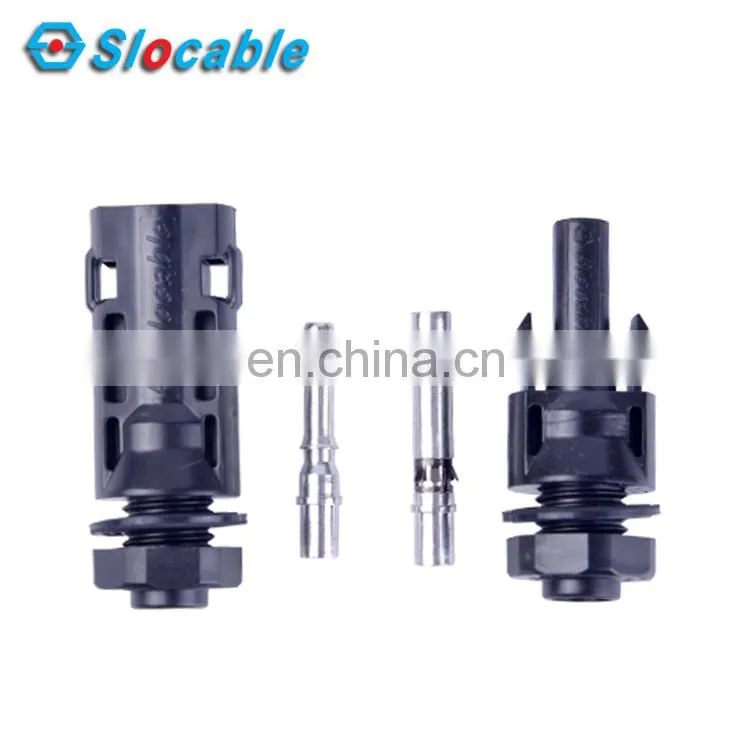

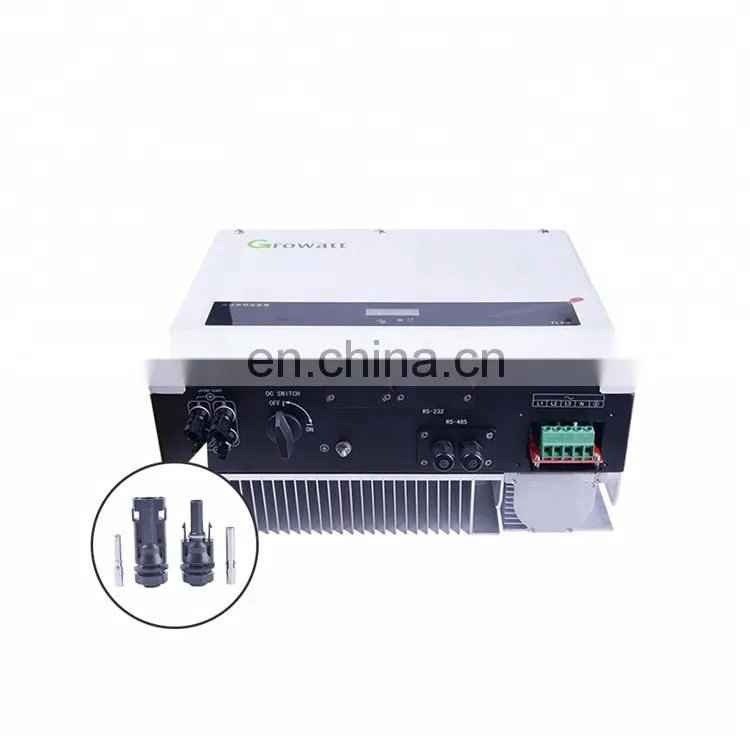

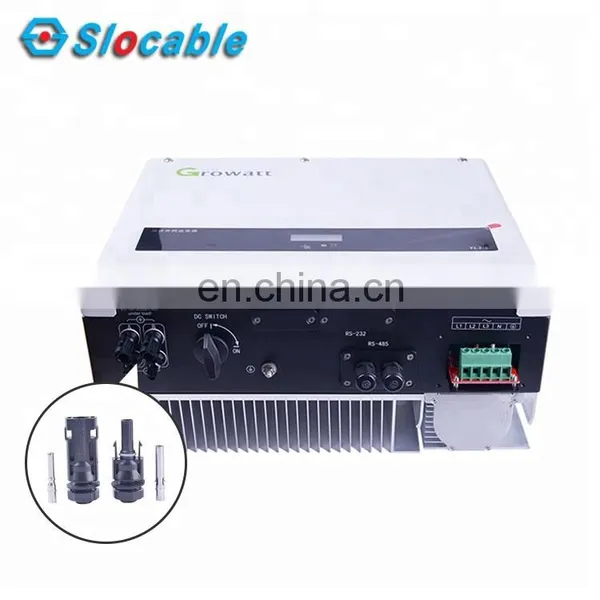

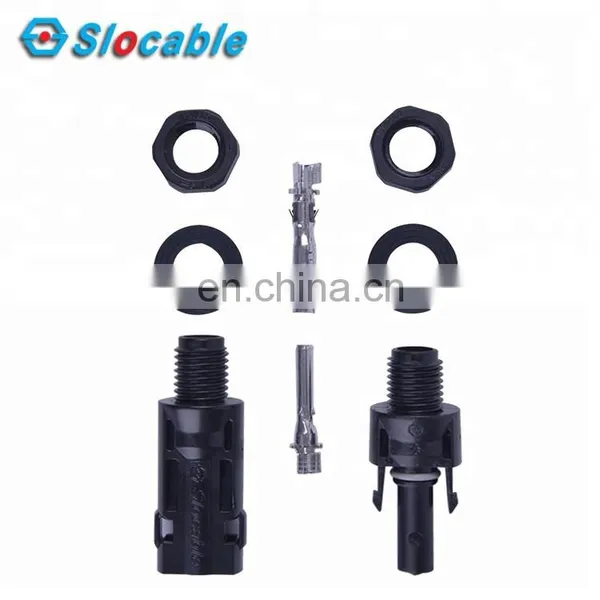

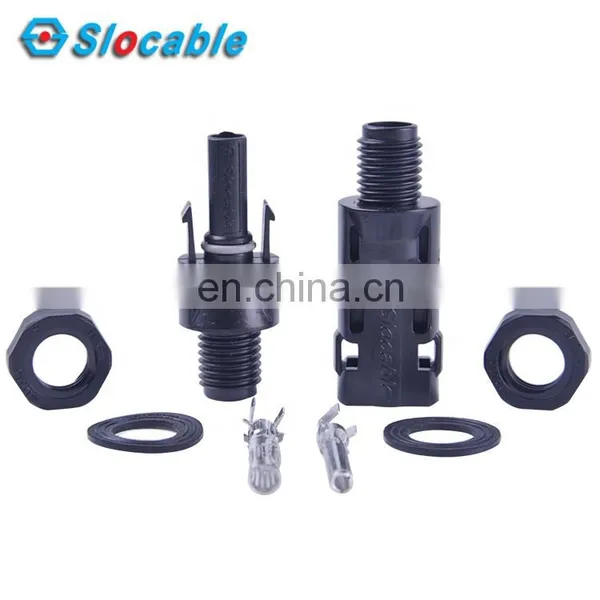

Pictures of PV Connector DC Receptacle
Click the following picture to check the Panel Connector with copper bar terminals:

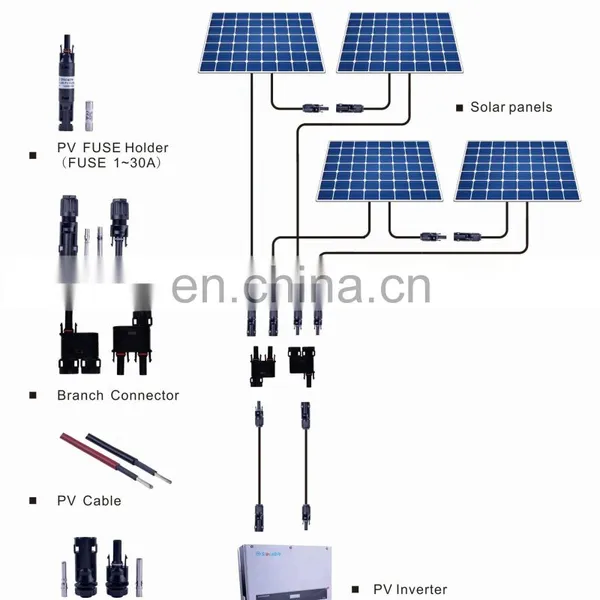

Click the following picture to get more info of our other PV Connector and solar cable:
IF any inquiry, please do not hesitate to contact me!
