Solar System Supplied Compatible CN40 Cable Connection
US$ 0.65 - 0.9
/ Set
100 Sets(Min. Order)
- Shenzhen
- T/T Credit Card
You May Like
-
4mm China Factory Supplier CN40 Photovoltaic Conector
-
Tin Plated Solar PV System Solar Panel Branch Connectors
-
SLOCABLE New Type PV System Solar Energy Green Energy 3 to 1 Branch Connector 3way
-
CN40 Connector Solar Panel Plug for Solar Cable
-
Slocable TUV SUD CE IEC Hight Waterproof IP67 1500V Branch Kits
-
CN40 Connector Plug in Solar System With Open Copper Terminal
Product Details
| Brand Name | Slocable | Place of Origin | Guangdong, China | |
| Model Number | CN40-CM-12 | Type | MCX | |
Product Description
Solar Cable Connector
| Advantage |
|
|
| Technical Data | |
|
Contact material: Copper, Tin plated |
Overvoltage category: CATⅢ |
|
Insulation material: PPO |
Pollution degree: 2 |
|
Degree of protection: IP2X/IP68 |
Flame class: UL94-V0 |
|
Rated current: 30A(2.5mm2), 50A(4.0mm2, 6.0mm2) |
Insertion force: Max.50N |
|
Test voltage: 8kV(50Hz, 1min) |
Withdralwal force: Min.50N |
|
Contact resistant: <0.5mΩ |
Ambient temperature range: -40℃~+90℃(IEC) |
|
Safety class: Ⅱ |
Connecting system: Crimp connection |
|
Suitable cable cross sections: 2.5/4.0/6.0/10.0mm2 14/12/10/8AWG |
|
Male of solar connector
| Order No. | Part P/N | Cable Spec | ||
| Connector | Terminal | Conductor Size | Cable OD | |
| CN40-CMMM-14 | CN40-CMMM-H | CN40-CM-MT14 | AWG 14(2.5mm2) | Φ4.5~Φ8.5 |
| CN40-CMMM-12 | CN40-CM-MT12 | AWG12(4.0mm2) | ||
| CN40-CMMM-10 | CN40-CM-MT10 | AWG10(2.5mm2) | ||
Female of solar connector
| Order No. | Part P/N | Cable Spec | ||
| Connector | Terminal | Conductor Size | Cable OD | |
| CN40-CFPM-14 | CN40-CFPM-H | CN40-CM-FT14 | AWG 14(2.5mm2) | Φ4.5~Φ8.5 |
| CN40-CFPM-12 | CN40-CM-FT12 | AWG 14(2.5mm2) | ||
| CN40-CFPM-10 | CN40-CM-FT10 | AWG 14(2.5mm2) | ||
More pictures
Product Processing
Certificates
Company Introduction

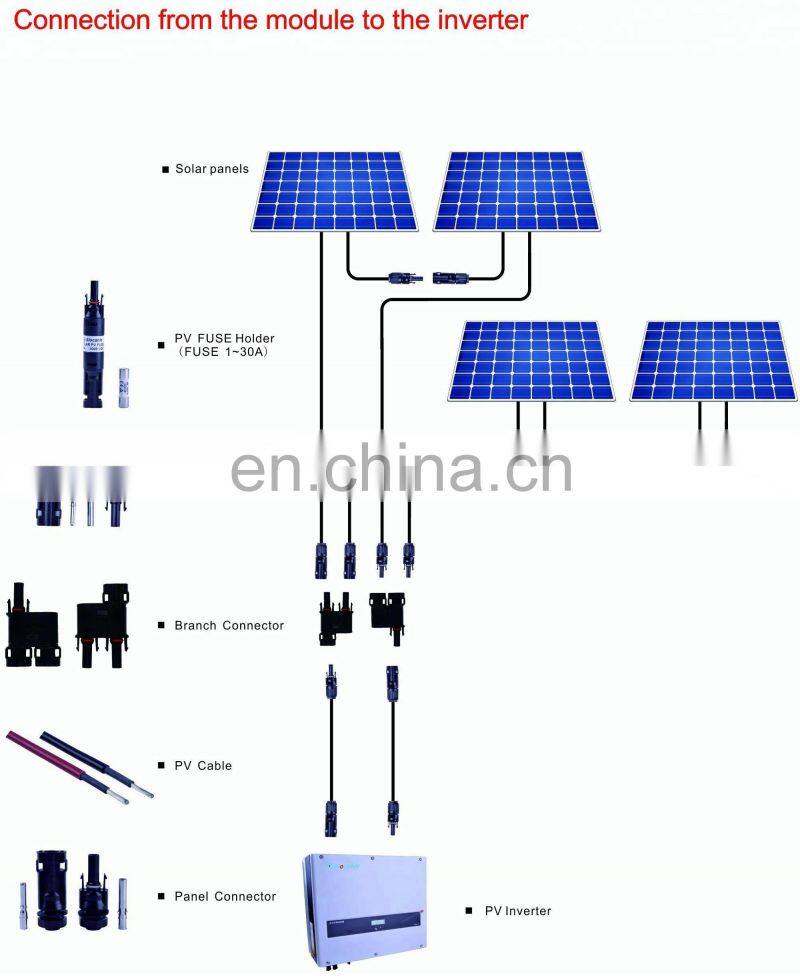

Application Project
