Home > Packaging & Printing > Package & Conveyance > Packing Tape > Green and Yellow Color Double Colors Insulation PVC Electraical Tape With Glue

Green and Yellow Color Double Colors Insulation PVC Electraical Tape With Glue

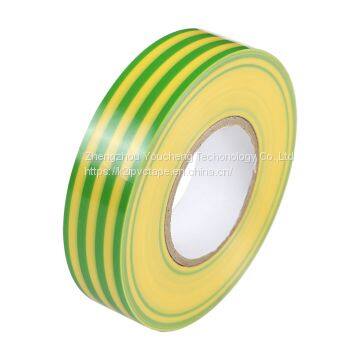

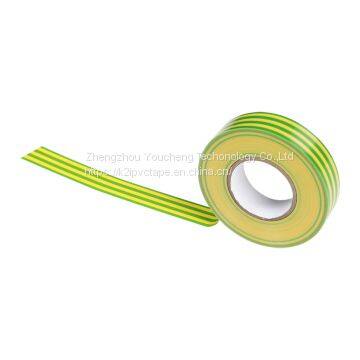

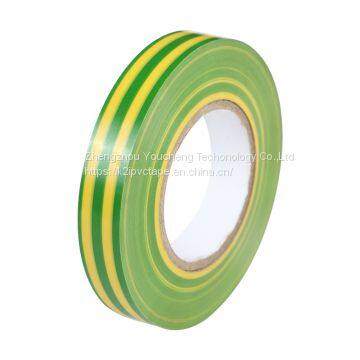

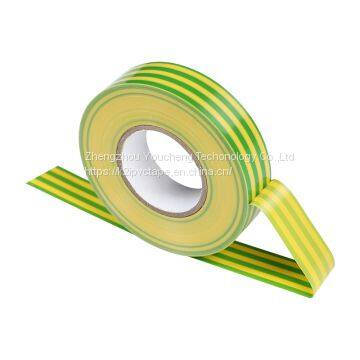

Green and Yellow Color Double Colors Insulation PVC Electraical Tape With Glue photo-1
Green and Yellow Color Double Colors Insulation PVC Electraical Tape With Glue photo-2
Green and Yellow Color Double Colors Insulation PVC Electraical Tape With Glue photo-3
Green and Yellow Color Double Colors Insulation PVC Electraical Tape With Glue photo-4
Green and Yellow Color Double Colors Insulation PVC Electraical Tape With Glue photo-5
US$ 0.09 - 0.12 MOQ: 1000 Rolls
Key Specifications
Get Latest Price
Brand Name:
K2
Place of Origin:
China
Model Number:
DG02
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name K2
Place of Origin China
Model Number DG02
Material PVC
Use Masking
Feature Heat-Resistant
Design Printing Offer Printing
Adhesive Type Pressure Sensitive
Adhesive Rubber
Adhesive Side Single Sided
Specifications: YC130F
Material: PVC film + pressure-sensitive rubber.
Color: Black  Red  Blue  Yellow  White  Green  Brown  Grey  Violet  Orange  Yellow/Green
PROPERTY
VAULE
UNIT
TEST METHOD
Total thickness
0.13
mm
ASTM-D-1000
Tensile strength
18
N/cm
ASTM-D-1000
Elongation at break
180
%
ASTM-D-1000
Voltage resistance
600
V
UL510
Temperature resistance
-10 -- 80
°C
ASTM-D-1000
Flame resistance
<3
S
ASTM-D-1000
Adhesion to steel
1.5
N/cm
ASTM-D-1000
Adhesion to backing
1.3
N/cm
ASTM-D-1000
Lead Content
<100
ppm
US EPA3052
Note: Data in table represent average test results and are not to be used for specification purposes. The product user should make his/her own tests to determine the product's suitability for the intended use.
Standard Size
Width
Length
Core
19mm
10m
32mm
19mm
20m
32mm
19mm
33m
32mm
19mm
45m
38mm
Other sizes and cores are available. Contact us about details.
Code
Total thickness(mm)
Tensile strength(N/cm)
Elongation at break (%)
Adhesive to steel (N/cm)
Adhesive to backing (N/cm)
Voltage resistance(V)
Temperature resistance (°C)
Flame resistance(s)
YC100F
0.10
13
160
1.5
1.3
600
-10 --80
<3
YC120F
0.12
16
180
1.5
1.3
600
-10 --80
<3
YC150F
0.15
22
180
1.5
1.3
600
-10 --80
<3
YC160F
0.16
23
180
1.5
1.3
600
-10 --80
<3
YC180F
0.18
26
180
1.5
1.3
600
-10 --80
<3
YC200F
0.20
28
180
1.5
1.3
600
-10 --80
<3
Other thickness are available. Contact us about details.
Products Description
Product Details




Electrical insulation tape is made of PVC film as the base material and coated with rubber pressure sensitive adhesive




Strong viscosity, can closely adhere to a variety of wire.




Voltage resistance 600v operating temperature -10°--80°C






Not easy to deform, super soft





Acid and alkali resistance, UV protection





Products are environmentally friendly and comply with RoHS indicators
Recommended by seller
wonder 600V insulation PVC tapeCN¥0.5873 - CN¥0.9788 / Roll1000 Rolls
0.13mm Silver Color Pipe Repair Custom Printed PVC Wrapping Fixing Adhesive TapeCN¥0.5873 - CN¥2.29 / Roll1000.0 Rolls
removable double side adhesive magic stick nano tape for hook, kitchen, bathroomCN¥4.57 - CN¥13.06 / Roll1000 Rolls
Adhesive carpet no residual cloth strong single - sided white duct tapeCN¥0.8483 - CN¥4.05 / Roll500.0 Rolls
Manufacturer OEM color single sided PVC jumbo roll adhesive tapeCN¥0.5873 - CN¥2.29 / Roll1000.0 Rolls
wholesale washi 2 inch masking tapeCN¥0.6526 - CN¥2.75 / Roll500.0 Rolls
Strong Adhesion OEM PVC floor marking tapeCN¥0.7178 - CN¥0.9788 / Roll5000 Rolls
PVC floor tape marking waterproof hazard adhesive tapeCN¥0.9788 - CN¥1.31 / Roll5000 Rolls
Easy unroll and PVC easy tear tape for maskingCN¥0.8483 - CN¥4.05 / Roll500.0 Rolls
About Us
It’s worth mentioning that we can make accurate sample customizations. If you have samples can send us, we can make 90% similar to your samples.
Treating your business as our own business and taking "growing together" as our principle, we deserve your trust. Just spend one minute telling us what you need, and then leave the rest to us. We strive for supplying you the most suitable products!
Until now we have 1 PVC Calendar film machine,4 coating lines , 1 paper core making machine,16 slitting machine and 15 automatic packaging in our manufacturing facility. Our yearly manufacturing capacity is 50 Millions Square meters.In our lab,we have the equipment to test the thickness,adhesion to steel,elongation,tensile strength,backing adhesion,hold power,flame of PVC tape,etc.Our testing equipment is calibrated periodically.We have 20 technicians in our manufacturing facilities.
Coating machine is mainly used for surface coating process production of film, paper, etc. This machine coats the rolled substrate with a layer of glue, paint or ink with a specific function, and then winds it after drying.
Select the best products, high-quality raw materials.
The warehouse strictly abide by the safety rules.
Transport a variety of packaging specifications, high-quality corrugated paper, standard container delivery. Containers, ships.
Certificate
Packing & Shipping

FAQ
Q: Can I get free sample?
A: Yes. Free sample can be provided. But if your size is not on our stock list, it may take more or less 7 days for production.
And the freight is on your part, hope you can understand. Thank you.
Q: Do you accept customized order?
A: Yes. Any customized requirement including color, size, package and logo etc. are welcomed.
Q: What's your MOQ?
A: It depends. but small order is also acceptable for the purpose of long time cooperation.
Q: How do you ensure the quality of your products?
A: At Youcheng Tech. you receive products under guarantee of ISO9001, RoHS.
Q: What are your best lead-times?
A: Immediately shipments are available for stock adhesive tapes. Otherwise we need more or less 25 working days for production.
Q: How can you make sure that my money is safe with you?
A: As an Alibaba Trade Assurance member, your funds are under protection of Alibaba group. Payment will not be released to vendor until buyer confirms receipt and good material of delivery.
