Home > Products > Trauma Implants > 2.4mm and 2mm plate for radius T locking plate system bone plates and screws fit for bone shape
2.4mm and 2mm plate for radius T locking plate system bone plates and screws fit for bone shape
- 10000 Piece / Pieces per Month
- T/T Credit Card
- Multiaxial tibia proximal medial titanium surgical locking compression plate
- Recovery head fracture implants orthopedic T plate for maxillofacial
- Metacarpal Lokcing miniature plate for hand bone broken L Type medical titanium metacarp plate ortho traumatic mini bone healing
- Humeral proximal implants for osteosynthesis
- Price for surgery clavicular titanium fracture implants
- Veterinary bone plate for T type
Product Details
Brand Name: | HESHUN | Place of Origin: | Sichuan, China | Model Number: | DC12Z05 |
Product Description
Recovery head fracture implants orthopedic T plate for maxillofacial

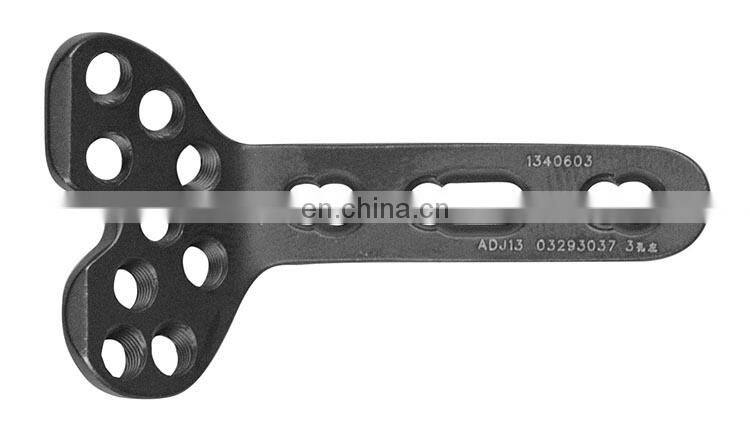

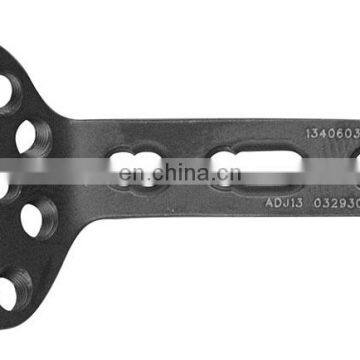

Name: Locking Compression T-Plate -2, oblique-angled
Indications: Distal radius fracture
model number: DC12Z05
Description:
Part Number | Description | ||
Ti | |||
Left | Right | Length(mm) | Holes |
1340603 | 1341603 | 47 | 3 |
1340604 | 1341604 | 56 | 4 |
1340605 | 1341605 | 65 | 5 |
Screw Sizes:
2.4mm cortex screws
2.4mm locking screws
Product Name | Specification/Diameter Length |
Cortex screw | 2.4mm 8to 30mm with 2mm difference |
locking screw | 2.4mm 8to 20mm with 5mm difference |
Related products
1. Anatomically shaped plate design minimizes the need of plate bending.
2. Rounded and tapered plate ends support percutaneous plate insertion.
3. Locking screw has large core diameter that improves bending and shear strength, and distributes the load over a large area in the bone.
4. Double lead thread and self-tapping flutes reduce screw insertion time.
5. Stardrive recess allows improved torqure transmission, increased resistance to stripping relative to a hexagonal recess.
6. Periarticular locking holes have multidirections which all insertion screw to support articular surface.
7. Angular stability prevents primary and secondary loss of reduction, especially for osteopenic bones.
8. Titanium implant provides greater biocompatibility.
9. Insertion guide for sure insertion of drill guide, which prevents the risk of cross threading the screw to the plate.
10. Oblong hole in the plate shaft for temporarily fixing the plate with independent screw onto the bone.
11. Oblong hole allows cortical screw to be placed in either eccentric or neutral position, depending on whether intrafragmentary compression is required.
Q: Who we are ?
A: We are a professionally-managed profitable company focus on distributing and exporting a complete rage of medical equipment & consumables.
Q: What we do ?
A: We build a one-step purchase centre of a wide range of high quality medical equipment & consumables, which are also supplied to China Top 10 Hospitals.
Q: Why do our products cost more than other competing Chinese Companies ?
A: Because our quality is the best of China. We only get cooperated with the biggest and well equipped powerful factories in China, rather than the cheapest sources resulting in zero quality control. All the products are also provided for China Top 10 Hospitals by our sub-dealers.
Q: How can I be sure that SHM is the best source ?
A: Seeing is believing. We invite you to our stores, cooperated facilities and check for yourself. We shall be glad to take you to the other companies for comparison. This will clear all your questions and doubts.
Q: What is your quality policy ?
A: Not only our products conform to ISO 9001:2008, EN ISO 13485:2012 & CE standards, but we also constantly exceed international quality norms. We boast of the most modern factories which have the state of the art manufacturing facilities. Also, rigorous quality assurance resources ensure stricter quality control.
Q: What is the company's philosophy ?
A: The company believes in long term relationship and mutual growth as objective. At SHM, quality is a culture and service a tradition.
Q: Where are you located ?
A: SHM is located in Chengdu, China. Welcome to visit.
Q: Do you ship to my country ?
A: The company is currently exporting to more than 80 countries.
