Bone Clasp With Rivet Teeth Ring Shaped TiNi SMA Fixater

Bone Clasp With Rivet Teeth Ring Shaped TiNi SMA Fixater photo-1
Bone Clasp With Rivet Teeth Ring Shaped TiNi SMA Fixater photo-2
Bone Clasp With Rivet Teeth Ring Shaped TiNi SMA Fixater photo-3
Bone Clasp With Rivet Teeth Ring Shaped TiNi SMA Fixater photo-4
Bone Clasp With Rivet Teeth Ring Shaped TiNi SMA Fixater photo-5
Bone Clasp With Rivet Teeth Ring Shaped TiNi SMA Fixater photo-6
US$ 93 - 95 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SHM
Place of Origin:
Sichuan, China
Model Number:
TiNi SMA Bone Fracture Fixater
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu or as demanded
Delivery Detail:
Delivery time depends on order quantity.
Brand Name SHM
Place of Origin Sichuan, China
Model Number TiNi SMA Bone Fracture Fixater
Product Description

We do not provide lowest-price products of poor quality, but

We do promise that our orthopedic implants & interventional materials are used in 70% of the aaa hospitals in China, including the TOP 10 Hospitals, such as Peking Union Medical College Hospital, Peking Jishuitan Hospital, West China Hospital, etc.


Bone Clasp TiNi SMA Fixater


TiNi SMA Bone Clasp is for internal fixation for the patient with oblique fracture or spirals type fracture in tubular shape bone of four limbs. It is a kind of adjunctive treatment.

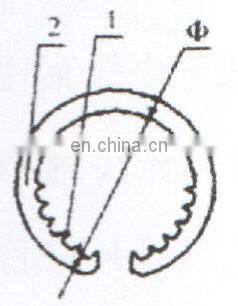

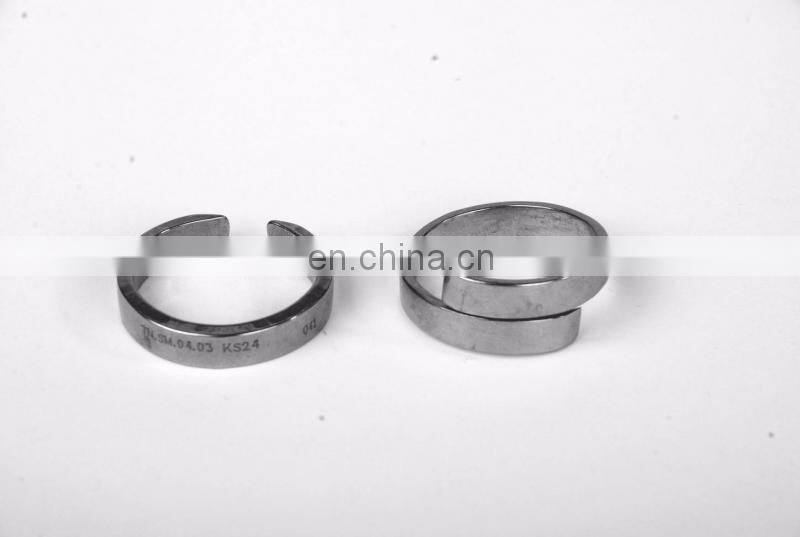

Type I  Ring & Double Ring Shaped Bone Clasp

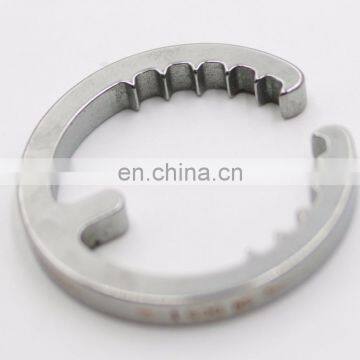

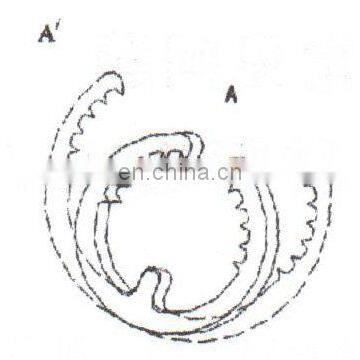

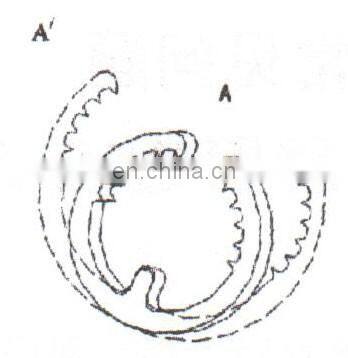

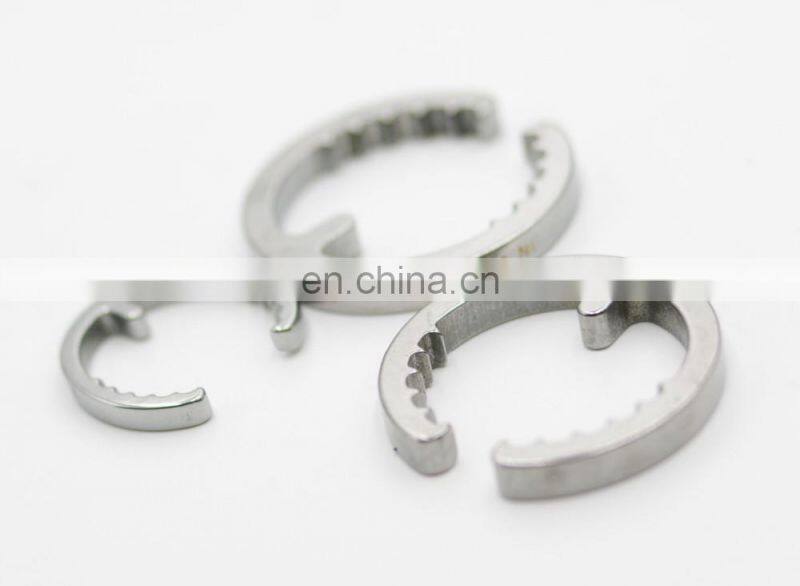

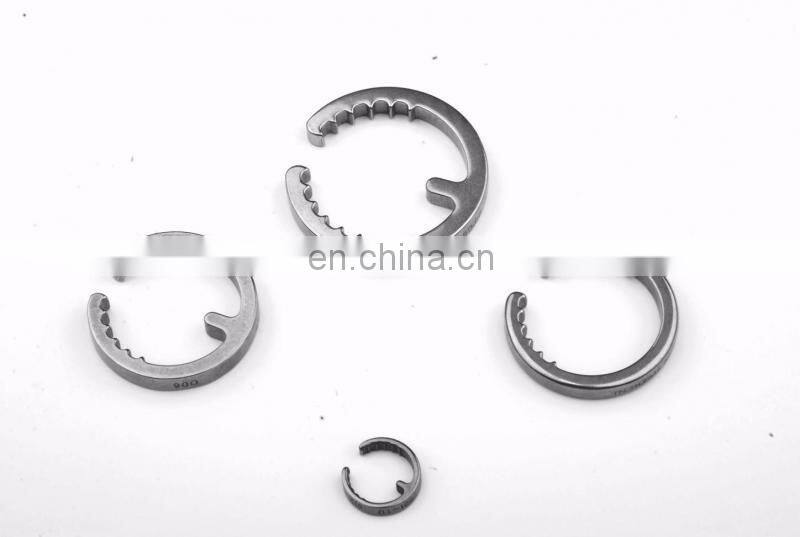

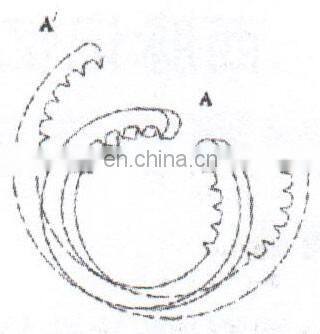

Type II  Bone Clasp with Rivet Teeth

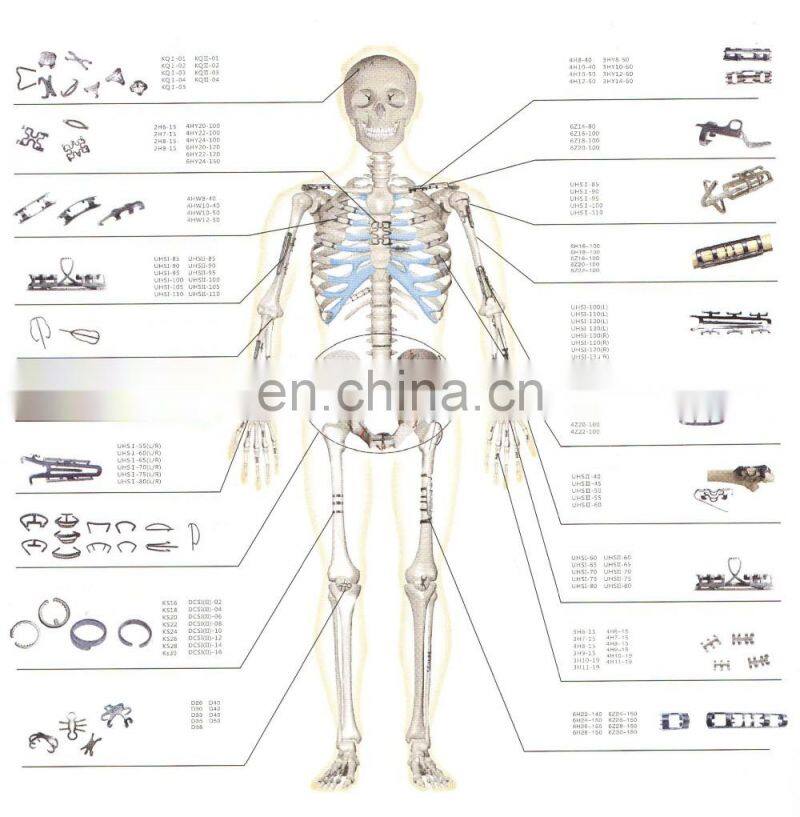

Clinical Applications


TiNi SMA Bone Fixater Implant
Titanium-Nickel Shape Memory Alloy Bone Fracture Implant

Titanium-nickel shape memory alloys (TiNi SMA) have a unique thermal shape memory effect, super-elasticity, good bio-compatibility, osteo-conductivity, corrosion resistance, bio-degradability, initial mechanical strength and high damping properties. These properties make it an ideal biomaterial, especially in orthopaedic surgery and orthodonitics.

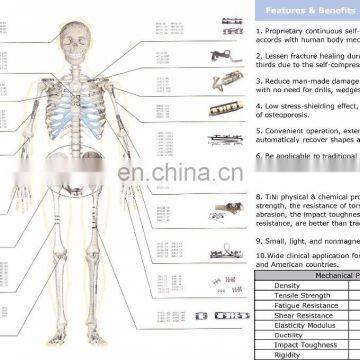

Features & Benefits


1. Proprietary continuous self-compression technology accords with human body mechanics.

2. Lessen fracture healing duration by up to two-thirds due to the self-compressive function.

3. Reduce man-made damage and surgical intensity with no need for drills, wedges, or screws.

4. Low stress-shielding effect, greatly reduce the rate of osteoporosis.

5. Convenient operation, extend at 0-5℃, automaticaly recover shapes at body temperature.

6. Be applicable to traditional intractable cases, such as acetabulum comminuted fracture.

7. Excellent biocompatibility.

8. TiNi physical & chemical properties, the mechanical strength, the resistance of torsion, corrosion, abrasion, the impact toughness, and the shear resistance, are better than traditional meterials.

9. Small, light, and nonmagnetic, density 6.5/cm3

10.Wide clinical application for millions case in Asia and American countries.

Operation Steps


Step 1: Select appropriate memory fixater according to the condition of the fracture.

Step 2: Routine disinfection.

Step 3: Distract the fixater in iced saline at 0~5℃ after cooling for 3~5 minutes.

Step 4: Incision operation.

Step 5: Install the fixater at fracture site.

Step 6: Hot compress the fixater with gauzes soaked in 45℃ sterile saline.

Step 7: Shape recover automatically, and the fixater is fixed in the injured bone firmly.


Mechanical Property

Density:
 6.5g/cm3
Tensile Strength:      1050-1290Mpa
Fatigue Resistance:  565Mpa
Shear Resistance:     820-945Mpa
Elasticity Modulus:  56
Ductility:                        25-40
Impact Toughness:
27.5kg·m/cm3
Rigidity:                         200-350



Welcome to our homepage for more options...

Our Certifications

               CE                             ISO                                FDA                             GMP

Our Company

SHM is dedicated to provide our global customer with orthopedic implants & interventional materials of the best quality. With a professional understanding about the market, SHM has established a strong relationship with hospitals and other healthcare institutions, through a robust sales & sub-dealer network, working together with our key strategic suppliers, who have become leaders in quality, innovation, and cost-efficiency.


You may enjoy the one-step purchase experience of a wide range of medical products, as well as our excellent customer service, professional technical support, superb quality, reasonable price, fast delivery, and accountable after-sales service etc.

Packing & Delivery

Packing:      PE Inner bag + Dialyzing Paper + Carton

Delivering:  1 - 30 days after payment

                        (1) 1 day for regular order;

                        (2) 30 days for costomized order (OEM / ODM).

Shipping:     Express is avaiable at your convenience.

FAQ

Q: Who we are ?
A: We are a professionally-managed profitable company focus on distributing and exporting a complete rage of medical equipment & consumables.


Q: What we do ?
A: We build a one-step purchase centre of a wide range of high quality medical equipment & consumables, which are also supplied to China Top 10 Hospitals.


Q: Why do our products cost more than other competing Chinese Companies ?
A: Because our quality is the best of China. We only get cooperated with the biggest and well equipped powerful factories in China, rather than the cheapest sources resulting in zero quality control. All the products are also provided for China Top 10 Hospitals by our sub-dealers.


We sell products connected to health and lives of human beings, hence we believe in providing quality of highest level. God forbid, if you or your loved ones needs an orthopedic implant, would you settle for the cheap and low quality product? Your answer to this would certainly be 'NO'. You will buy the best one as you would not risk the life and mobility of a loved one in order to save a few dollars. Do not buy or sell cheap and low quality implants and risk the life and limb of your countrymen.


Q: How can I be sure that SHM is the best source ?
A: Seeing is believing. We invite you to our stores, cooperated facilities and check for yourself. We shall be glad to take you to the other companies for comparison. This will clear all your questions and doubts.


Q: What is your quality policy ?
A: We believe in providing quality of highest level. The fact that we are in a business which is directly linked to the health and well being of the people makes us more responsible company, and no matter what, no compromises are made. No doubt, life is precious.


Not only our products conform to ISO 9001:2008, EN ISO 13485:2012 & CE standards, but we also constantly exceed international quality norms. We boast of the most modern factories which have the state of the art manufacturing facilities. Also, rigorous quality assurance resources ensure stricter quality control.


Q: What is the company's philosophy ?
A: The company believes in long term relationship and mutual growth as objective. At SHM, quality is a culture and service a tradition.


Q: Where are you located ?
A: SHM is located in Chengdu, China. Welcome to visit.

Q: Do you ship to my country ?
A: The company is currently exporting to more than 80 countries.
