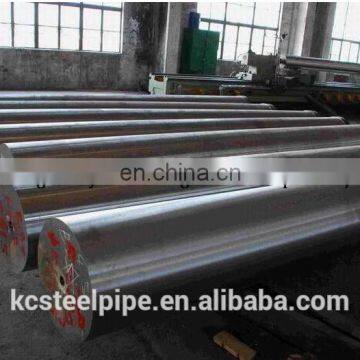

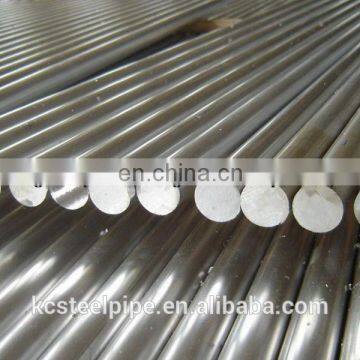

Cold Drawn JIS G4105 Grade SCM435 Alloy Steel Round Bar
- shanghai/tianjin/qingdao
- T/T Credit Card
You May Like
-
Steel Round Rod Carbon Steel Price per Ton Steel Rod 5mm Hot Rolled Round Bar Price
-
S235JR Cold Rolled Perforated L Profiles Sizes
-
1500x3000MM Size S275 Mild Steel Plate/steel Sheet
-
Hot Rolled S275 Steel Plate1500x3000mm Size
-
Steel Profile Welded S235jr S275jr S355jr Corrugated Web H Beam I Beam
-
400*100 Sy295 Water-resisting u Type Hot Rolled Steel Sheet Pile for Sale
Product Details
| Brand Name | LCKCGY | Place of Origin | Shandong, China | |
| Model Number | 8MM-36MM | Type | Alloy Steel Bar | |
| Application | Structural Steel Bar | Technique | Cold Drawn | |
| Standard | AISI, ASTM, BS, DIN, GB, JIS | Alloy Or Not | Is Alloy | |
| Special Use | Mold Steel | Steel Grade | SCM435 ALLOY STEEL |
Product Description
JIS Grade SCM435 is a quenched and tempered steel with good weldability due to its lower carbon content. It's known for its high strength, toughness and high hardness properties. This grade is associated with the Japanese material standard JIS G4105. SCM435 is a chrome molybdenum steel.
Mechanical | |||
| Elastic modulus E | Poisson's ratio ν | Tensile strength Rm | Yield strength YS |
| 210 GPa at 20 °C | 0.3 [-] at 20 °C | 930 MPa at 20 °C | 785 MPa at 20 °C |
Chemical properties | |||||||
| Fe | Cr | Mn | C | Si | Mo | S | P |
| 96.86 - 97.87 | 0.9 - 1.2 | 0.6 - 0.85 | 0.33 - 0.38 | 0.15 - 0.35 | 0.15 - 0.3 | 0.03 | 0.03 |
SCM435 has high fatigue limit of static strength, impact toughness and high hardenability, higher
than 40Cr, has high creep strength and rupture strength under high temperature, long-term working temperature of 500 degree; cold plastic deformation medium, poor weldability.
SCM435 Alloy Steel used for vehicles, engines and machines-axles, turbine components, chains, Forgings, Truck, turbine or rotor drive shafts, gearbox gears, axles, half-shafts for rear axle stays.Shafts of All types, gears and any components subject to fatigue stresses.
Hot rolled technology:EAF+LF+VD
Forged technology:EAF+LF+VD+ESR+Forging+Q T+Machined surface
Heat treatment:
Annealing or Q+T
Surface treatment:
Black/Peeling/Polishing/machined
