Underground Rainwater Soakaway ( Attenuation ) Crates Tank  is also known as stormwater infiltration tank, and it also can be named as rainwater modular tank, stormwater attenuation crates, stormwater detention tank or rainwater retention tank, etc.

PRODUCT DETAILS:

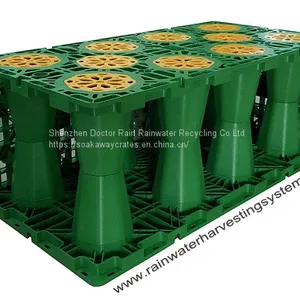

Model No.: YBS-M1000

Size: 1000x500x400mm

Weight: 16kg/tank

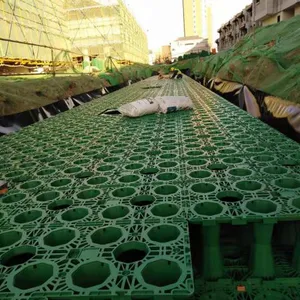

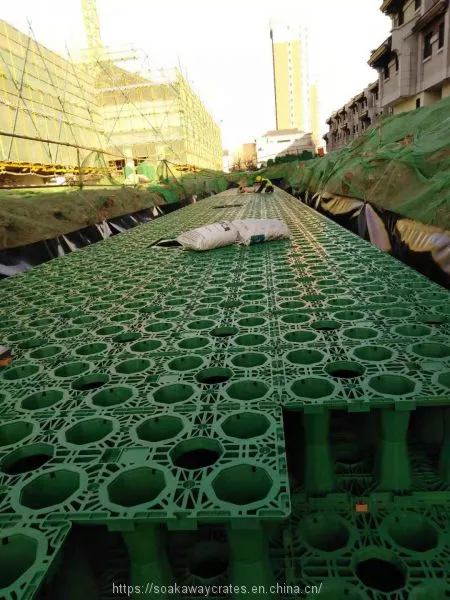

Installation: Underground

Void Ratio: 95%

Storage Capacity: 190L/tank

Load Capacity: 300KN/m2 -600KN/m2

Temperature: -30℃-120℃

Material: 100% recyclable

Service Life: 50 years

PACKAGING DETAILS:

The mainbody of a modular tank is made up of two modules,they are stackable,they are piled up on pallets.

For 40'HQ container,one pallets can hold 128pcs module (normal pallets) or 192pcs (large pallets). We can put 22 pallets in a 40'HQ container,  that is about 294.4m3.

For 40'GP container,one pallets can hold 112pcs module (normal pallets),We can put 22 pallets into it,that is about 246.4m3.

For 20'GP container, one pallets can hold 112pcs module (normal pallets),We can put 10 pallets into it,that is about 112m3.

PRODUCT ADVANTAGES:

Flexible Design: The size and shape of the underground pool which made of of the modular rainwater tank can be assembled according to the need of the site.

High Loading Capacity: the vertical loading capacity of the rainwater modular tank can reach 60 tons,which the heavy truck can pass the road above the tank system.

High Void Ratio: the void space inside the rainwater tank reaches 95%.

Long Service Life: The designd service life of the modular tank is 50 years.

Easy Installation: the modular tank can be assembled just by hands, no large machines required.

Time Saving: one person can install 75 cubic meters each day.

Compact Storage: the modular tank can be piled on pallets, one 40'HC container can hold 294.4 cubic meters.

Environmental protection: the modular rainwater tank is made of 100% Recyclable PP.

Money Saving: Compared with the traditional stainless steel and concrete pools, it reduces the time cost, transportation cost and later maintenance cost in many ways.

APPLICATONS:

The installation area covers a wide range of areas, including urban residential areas, municipal public roads,driveway, alongside railway or high way,squares, hosiptal,public park, greening area, industrial parks, car parking area,sport field,stadium,playground,golf courses,etc.

COMPANY INTRODUCTION:

We are the largest manufacturer for rainwater modular tank (soakway crates,attenuation tank, infiltration tanks), established in 2013, with two large plants in Shenzhen. We are the first maker of rainwater harvesting system in China, we have 10 production lines, more than 20 engineers in R&D department and about 300 skilled workers.

We have our own mold design and making workshop, all the plastic injection molds for producing the soakaway tanks are designed and made by our own shop.

Our production capacity reachs more than 1500m3 per days for soakaway crates, which can meet the needs of any large rainwater harvesting projects.

We are a national qualified third grade construction contractor which enable us to conduct construction of rainwater harvesting system in China, and we have completed more than 500 large or small projects for rainwater harvesting system.

Now our company can offer full sets of accessories for making a whole rainwater harvesting system, including Rainwater  Sewage (silt, sand, garbage trap) Interception basket Device, Initial Rainfall Removal(discarding-dirty-flow) Device,Rainwater Automatic Filter, Soakaway Crates, Inspection Chamber (Inspection well), Pipe Connection Box. All these accessories are made by ourselves.

Our company has passed the following qualifications: ISO9001:2015, ISO14001:2015 and OHSAS18001:2007.
