---- Product Characteristics----
1. Name: Farm machinery rotavator, cultivator, rotary tiller ,agricultural tiller/cultivator/machine/equipment
2.Side gear/chain box driven, Suitable for 4 wheel tractors
3. Each flanges with 4/6 knives
4.This cultivator's Speed of PTO shaft is:540RPM,
Linkage method:three point linkage
5.Alibaba Trade Assurance to protect your cargo safe.CE, SGS certificate to gurentee the quality of products.
6.First hand manufacture
Model |
1GLN-125 |
Dimensions(L*W*H) |
1450*800*700mm |
Weight |
240 kg |
| no. of blades | 24 |
Working width |
1200mm |
Working depth |
120mm |
PTO Input speed |
540r/min |
Power required |
25-30 HP |

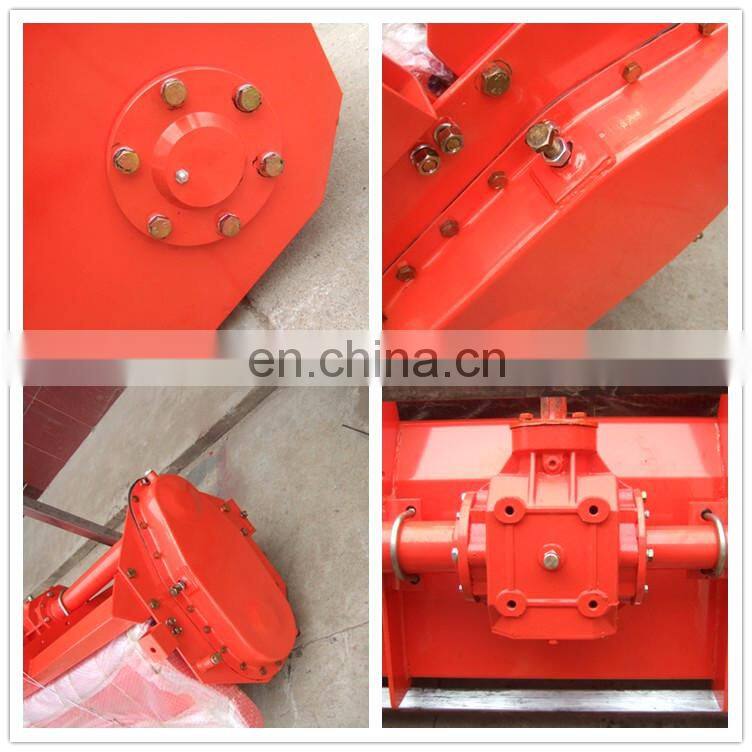

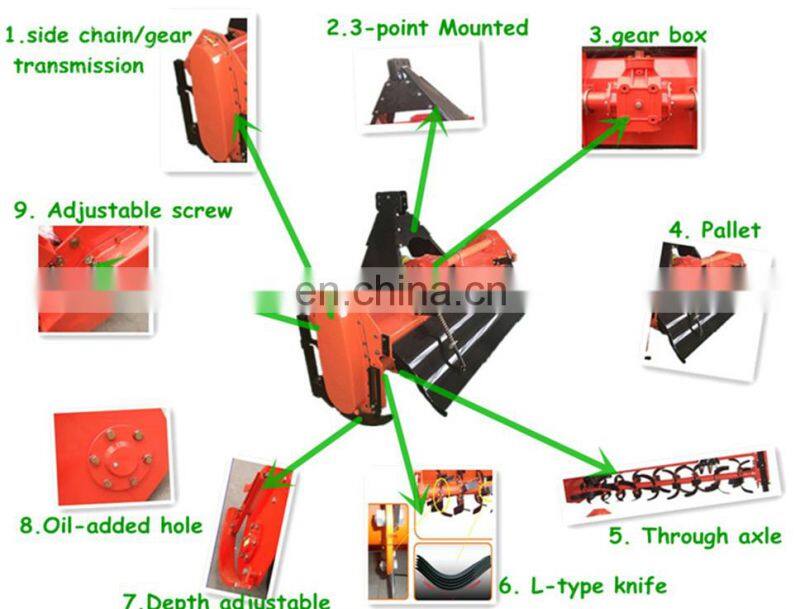

Details of the rotary tiller:
Advantages of Rotary tiller:
1.1GLN series heavy-duty rotary tiller with side gear transmission, it can be mounted with 15-55hp tractor.
2. Gantry-type Bracket are more stronger.
3. Our machine uses big nodular cast iron gear box with perfect processing, high strength than generally iron gear box. And it has a view oil hole on its surface to convenient your using.
4. Ajustable Front Pin has two hole to convenient your adjustment.
5. The pallet using S-streamlined design, it adopts a special process, greatly improves the strength, surface flatness after tillage, better degree of compaction
6. The Rotary cultivator is a through shaft without intermediately leaking plowing and grass hanging phenomena.

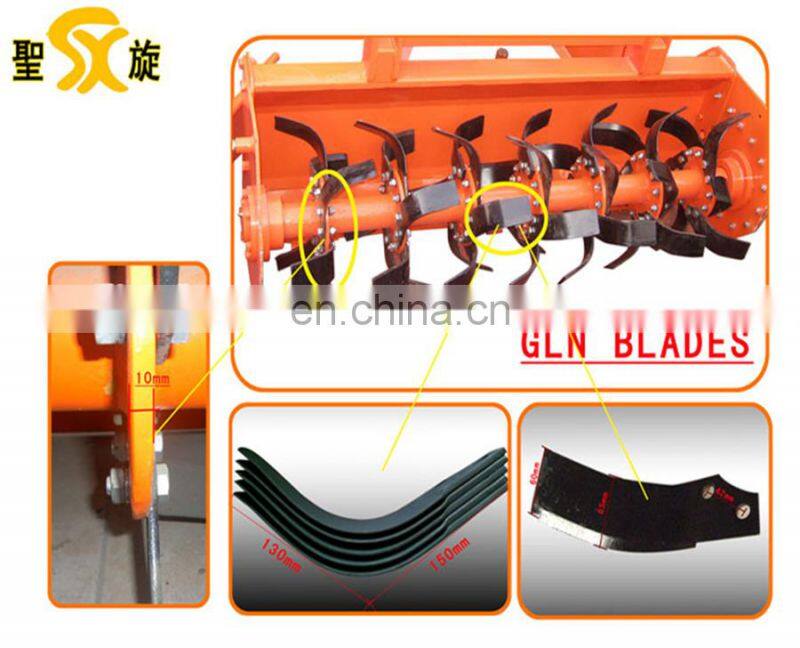

7. It adopts wide knives L-type which hitched on disc knife seat.
Its stubble, soil effect will be far higher than traditional tools. At a certain speed it can crush straw, reach a multi-purpose machine
8. Anti-tipping is through the connection plate and steel tube with 2 Spring rack system is to be achieved. Can be more fine soil particles, more plain.
9. Integrated welded frame cover plate, so that the whole structure is more compact, more robust
10. Whole machine adopts the polyester powder coated or baking varnish technology with brightly colour, strong and durable paint adhesion.

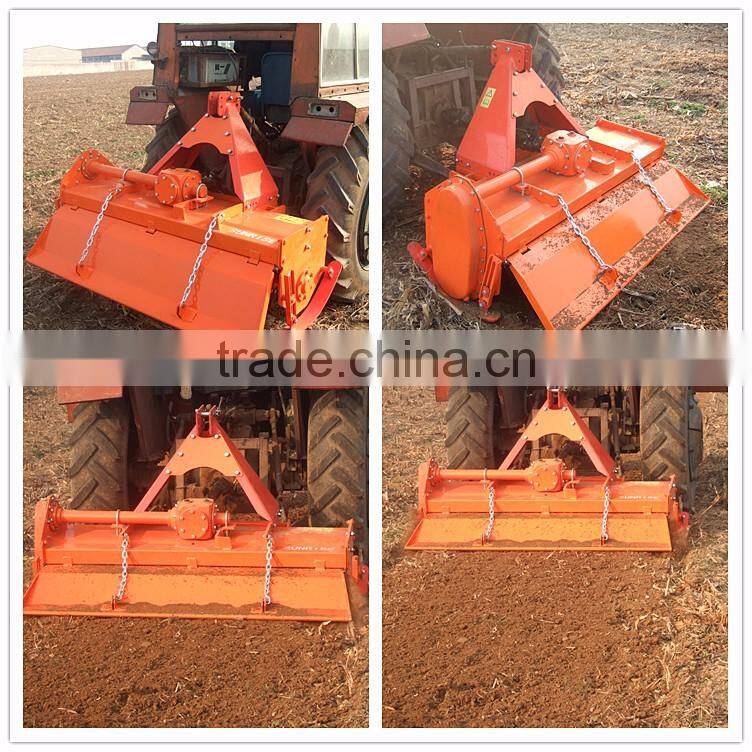

Working pictures:
Certificates of the rotavator and the workshop:

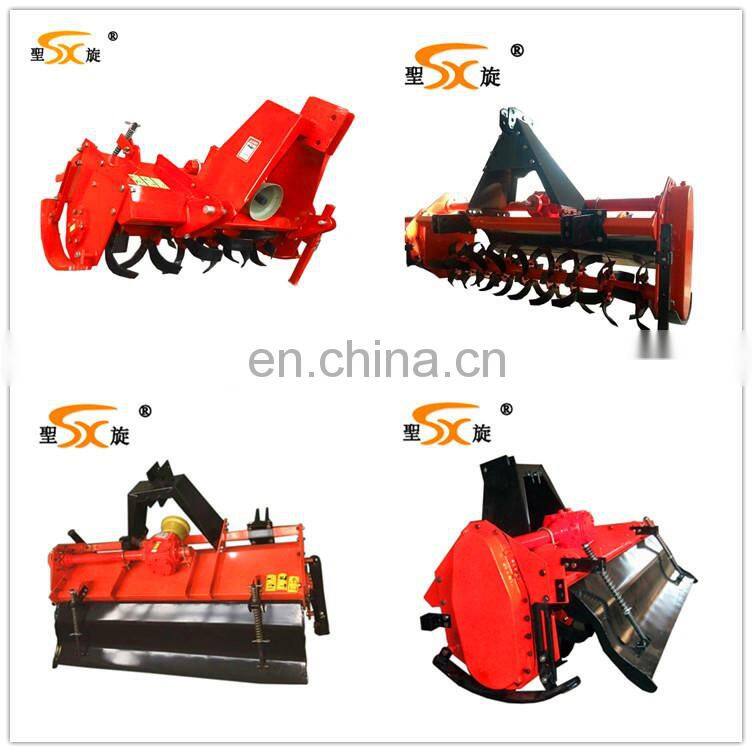

Other models:
| model | 1GLN-85 | 1GLN-105 | 1GLN-125 | 1GLN-140 | 1GLN-150 | 1GLN-160 | 1GLN-180 | 1GLN-200 |
| Dimensions(mm) |
1050*800 *800 |
1250*800 *800 |
1450*800 *800 |
1650*800 *800 |
1700*800 *800 |
1800*800 *800 |
2000*800 *800 |
2200*800 *800 |
| Weight(kg) | 180 | 220 | 240 | 260 | 310 | 320 | 440 | 460 |
| working width(mm) | 800 | 1000 | 1200 | 1350 | 1450 | 1550 | 1750 | 1950 |
| working depth(mm) | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| PTO input speed(r/min) | 540 | 540 | 540 | 540 | 540 | 540 | 540 | 540 |
| no. of blades | 16 | 20 | 24 | 28 | 32 | 36 | 40 | 40 |
| matched power(hp) | 20 | 20-25 | 25-30 | 25-30 | 40-50 | 40-50 | 50-70 | 55-75 |
Factory Advantages:
1. We are one of the TOP-rank suppliers on Alibaba. Our factory is establised in 1984,it has so experienced technical team ,superior equipment ,reliable quality,complete after-sales service,which let it get good reputation at home.
2. All rotary tillers are installed by technical workers with more than 20 rich experiences.
3. All rotary tillers parts can be found in my factory, which relieves the worry of customers, while, saves the precious time of the clients.
4. As weifang is near Qingdao port,it makes the reliable guarantee for the delivery time.
5. Alibaba Trade Assurance to protect your cargo safe.CE, SGS certificate to gurentee the quality of products.
Trade Assurance:
As a member of alibaba, we gain the support form Alibaba depends on the good quality and reputation, such as “Trade Assurance”
Trade Assurance is a free protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.
It will reassure your worries about delivery time and the quality.
