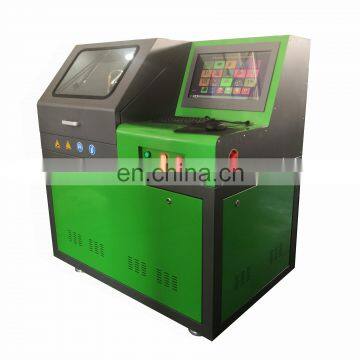

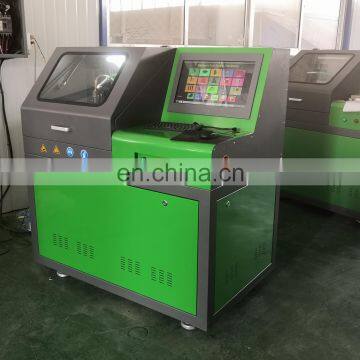

CRS3000 High Pressure Common Rail Injector Tester Common Rail Pump Test Machine
US$ 3,000 - 4,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
haoshiyuan
Place of Origin:
Shandong, China
Model Number:
CRS3000
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Common Rail Injector Tester of QR1000 Common Rail Injector And Pump TesterUS$ 720 - 750MOQ: 1 Set -
Diesel Fuel Common Rail Injector Tester QR1000 With Coding FunctionUS$ 720 - 750MOQ: 1 Set
-
Common Rail Diesel Injector Tester Crdi Injector Tester Cr1000a for Common Rail Injector TestUS$ 180 - 185MOQ: 1 Set
-
CR738 Common Rail Diesel Injector Test Bench HEUI Test Bench For Cat C7 C9 C-9 3126US$ 8,500 - 14,000MOQ: 1 Piece
-
CR738 Diesel Injection Pump Test Bench Diesel Fuel Injection Pump Test BenchUS$ 8,500 - 14,000MOQ: 1 Piece
Brand Name
haoshiyuan
Place of Origin
Shandong, China
Model Number
CRS3000
Type
Engine Analyzer
Certification
iso
Voltage
380v or 220v
Power
1.5kw
Warranty
12 Months
Applicable Models
all trucks
Products Description
CRS3000 CR common rail diesel fuel injector test bench is our latest independent researched special device to test the performance of high pressure common rail injector, controlled by industrial computer, Windows operating system.
The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved.
It adopts BOSCH original common rail pump to provide 0~2000 bar for rail pressure.
The rail pressure can be adjusted automatically, and it also provide pressure overload protect.
It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO.
Advanced technology, steady performance, precise measurement and so on.
The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved.
It adopts BOSCH original common rail pump to provide 0~2000 bar for rail pressure.
The rail pressure can be adjusted automatically, and it also provide pressure overload protect.
It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO.
Advanced technology, steady performance, precise measurement and so on.
output power |
1.5KW |
power voltage |
220V 1phase |
motor speed |
0-3000RPM |
Oil pressure |
0-2000bar |
flow measure range |
0-600ml/1000times |
flow measurement accuracy |
0.1ml |
temperature control range |
40+-2 |
Main Features
CHARACTERISTIC:
1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4 tactile LCD screen.
3. More than 700 kinds of injector data can be searched and used.
4. It is installed BOSCH common rail pump to provide 0~2000 bar.
5. Rail pressure can be tested in real time.
6. Provide pressure overload protect.
7. Pulse and frequency of the injector can be adjusted.
8. Injection time can be set.
9. Protection function of short-circuit.
10. Precise measurement, easy operation, low noise.
11.Frequency converter inside to keep the RPM.
2. Oil quantity is measured by sensor and displayed on 10.4 tactile LCD screen.
3. More than 700 kinds of injector data can be searched and used.
4. It is installed BOSCH common rail pump to provide 0~2000 bar.
5. Rail pressure can be tested in real time.
6. Provide pressure overload protect.
7. Pulse and frequency of the injector can be adjusted.
8. Injection time can be set.
9. Protection function of short-circuit.
10. Precise measurement, easy operation, low noise.
11.Frequency converter inside to keep the RPM.
FUNCTION:
1.Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.
Piezo injector testing(option function)
2. Test 1 piece of injector.
3. Test the Leakage performance of common rail injector.
4. Injection oil quantity and back oil quantity(pre-injection, Idling, emissions, full load)
5. Electronic fuel delivery measuring, automatic testing and detection.
6. Data can be searched and saved.
Piezo injector testing(option function)
2. Test 1 piece of injector.
3. Test the Leakage performance of common rail injector.
4. Injection oil quantity and back oil quantity(pre-injection, Idling, emissions, full load)
5. Electronic fuel delivery measuring, automatic testing and detection.
6. Data can be searched and saved.
Product packaging
Packaging
The normal package is polywooden
box(Size: L*W*H). If export to
european countries,the wooden box
will be fumigated.If container is too
tigher,we will use pe film for packing
or pack it according to customers
special request
box(Size: L*W*H). If export to
european countries,the wooden box
will be fumigated.If container is too
tigher,we will use pe film for packing
or pack it according to customers
special request
Company Profile
Tai'an haoshiyuan automobile testing equipment company has its own factory, and Italy is a joint venture founded in 1995, the company is located in the beautiful at the foot of Taishan, the existing 5 million yuan in fixed assets, more than 80 employees. Several of the earliest engaged in the frequency conversion speed injection pump test bench of senior engineers, engineers, technicians and computer software and hardware development experts. The introduction of advanced production and processing equipment and a full set of production technology and product design software, Italy has the world's advanced level of a variety of automotive testing and testing equipment.
Why Choose Us
Product production process using microcomputer control and digital display system, advanced production technology, strong technical force, can produce a variety of equipment 2330. Product quality, high technical performance, with micro control and digital display function. Products are sold all over the country, exported to more than and 20 countries and regions in the world.
Our business purpose is: by virtue of strong technical force, advanced equipment and scientific management to produce high quality products.
The company products Three Guarantees, transport agent, life-long service, training and technical personnel, to provide long-term technical advice
Our business purpose is: by virtue of strong technical force, advanced equipment and scientific management to produce high quality products.
The company products Three Guarantees, transport agent, life-long service, training and technical personnel, to provide long-term technical advice
