PQ1000 Common Rail Diesel Injector Test Bench From China Factory

PQ1000 common rail injector test bench

PQ1000 COMMON RAIL INJECTOR TEST BENCH

function

1,  To test if the CR injector is still function,to connect a CR injector to a high pressure fuel source by a high pressure fuel line and to the CR tester by harness.The tester is set to condition is injection mode.The CR injectors in normal condition,if it is capable to inject fuel under the driving signals by the tester.

2,  To test injector spray atomization,to connect a CR injector to a high pressure fuel source by a high pressure fuel line and to the CR tester by harness.The tester is set to single injector mode to allow observing the nozzle spray pattern to judge if the nozzle is normal or orifice plugged.

3,  Checking the injection return oil and injection oil.

4,  With ultrasonic cleaning tester to clean the nozzle.

It is used to test  the common rail injector,and it also can clean the common rail injector by Ultrasonic Cleaning Instrument. common rail injector tester

Technical data:

1.High pressure 0-1800bar

2. Check the injector starting pressure

3.Assessment of the injector spray fog quality

4. Inspeciton of the injector spray oil range

5.Check of the injector seal and angel

6.Check of the injector oil flow

7.The machine has  fog dissipation convulsion device to improve the work condition.

8.It has the two garde filter to ensure the cleanliness of test.

9.The parameter of common rail injector ( fuel spray counts, frquency, pulse width, pressure etc..)

can be set willfully.

10. it also can clean the common rail injector by Ultrasonic Cleaning Instrument

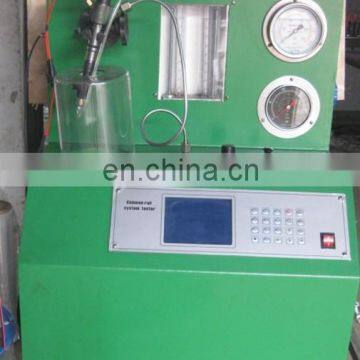

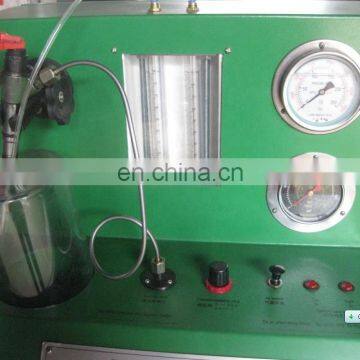

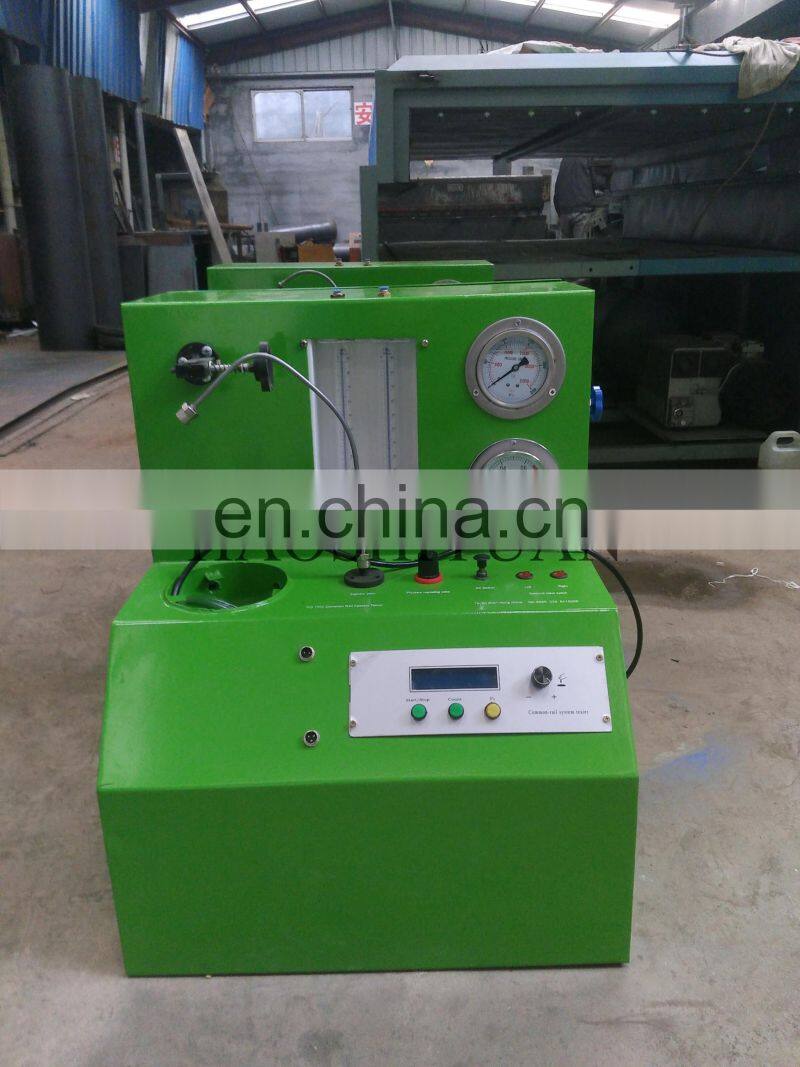

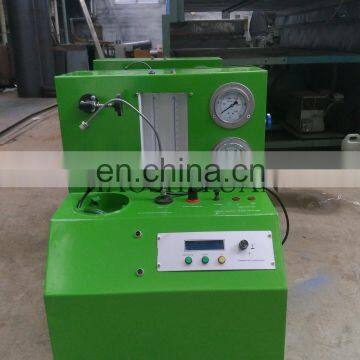

PQ1000 common rail injector tester

the machine detile picture:

12 months

  Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
