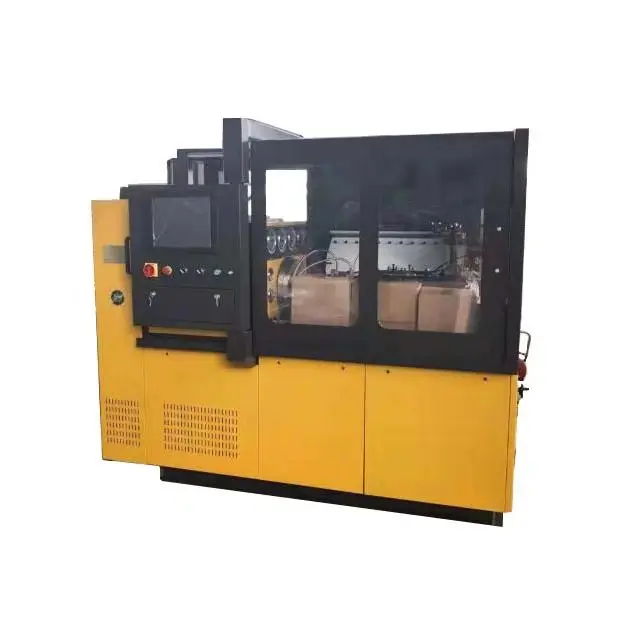

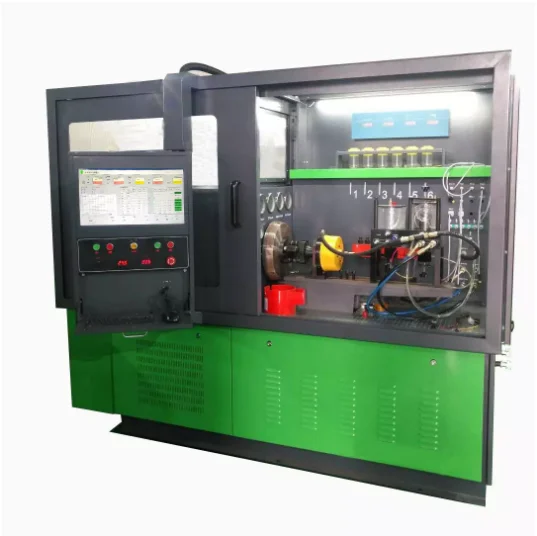

CR825 Test Bench to Test Most of the Common Rail Injectors and Pumps

Taian Haoshiyuan Auto Equipment Co., Ltd.
CR825 Test Bench to Test Most of the Common Rail Injectors and Pumps thumbnail-1
CR825 Test Bench to Test Most of the Common Rail Injectors and Pumps thumbnail-2
CR825 Test Bench to Test Most of the Common Rail Injectors and Pumps thumbnail-3
CR825 Test Bench to Test Most of the Common Rail Injectors and Pumps thumbnail-4
CR825 Test Bench to Test Most of the Common Rail Injectors and Pumps thumbnail-5
CR825 Test Bench to Test Most of the Common Rail Injectors and Pumps thumbnail-6
CR825 Test Bench to Test Most of the Common Rail Injectors and Pumps thumbnail-7
CR825 Test Bench to Test Most of the Common Rail Injectors and Pumps photo-1

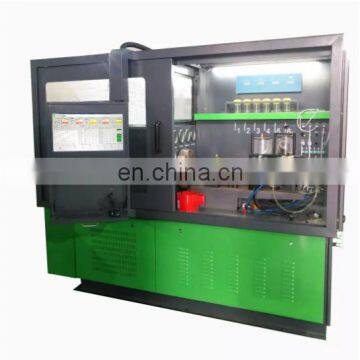

CR825 Test Bench to Test Most of the Common Rail Injectors and Pumps photo-2

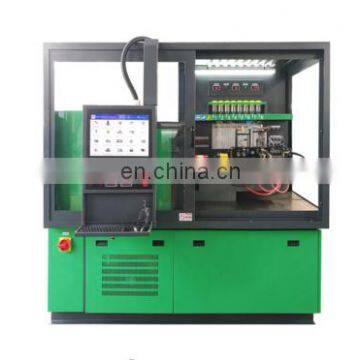

CR825 Test Bench to Test Most of the Common Rail Injectors and Pumps photo-3

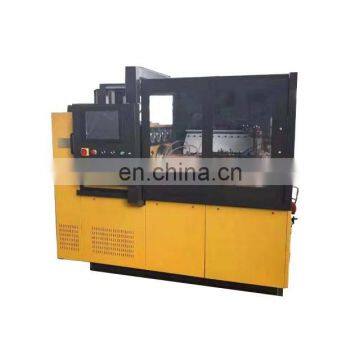

CR825 Test Bench to Test Most of the Common Rail Injectors and Pumps photo-4

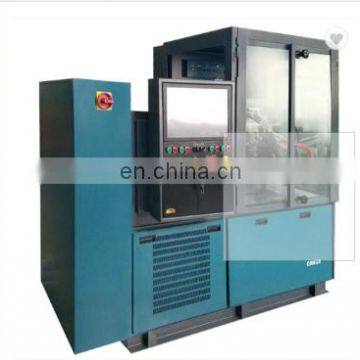

CR825 Test Bench to Test Most of the Common Rail Injectors and Pumps photo-5

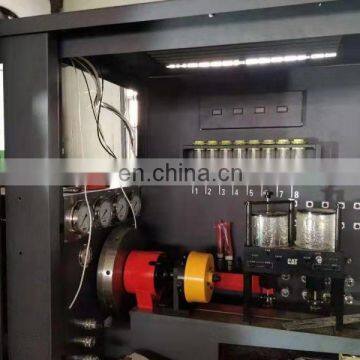

CR825 Test Bench to Test Most of the Common Rail Injectors and Pumps photo-6

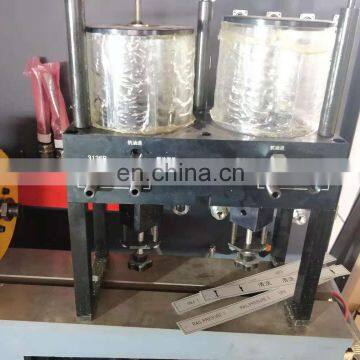

CR825 Test Bench to Test Most of the Common Rail Injectors and Pumps photo-7
US$ 10,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HAOSHIYUAN
Model Number:
CR825
Type:
Engine Analyzer
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HAOSHIYUAN
Model Number CR825
Type Engine Analyzer
Certification CE/ISO9001
Voltage 220V/380V
Power 7.5kw
Warranty 12 Months
Applicable Models all car
Products Description
BD- CR825 common rail control system by controlling the operation of the common rail test bench to complete the common rail pumps, common rail injector, high-pressure fuel rail test. Wide range of equipment, can be widely measurement Boch, Denso, Delphi, Siemens and other common rail pump and injector, the injector system is equipped with more than 1600 injectors data, in maintenance and inspection can be used as a reference value or reference value, allowing users repair work more convenient.
Technical Specification
Power supply
3 phase 380v 50hz ,optional 3phase 220v 60hz
Motor power
22kw
Motor rotate
0-4000RPM/MIN
Control circuit
DC 12V/24V 350W
Oil motor HP/Flow
0.19KW/
ECU internal voltage
0-200V DC(MAX)
Diesel motor HP/Flow
0.19kw/13L/MIN
Temperature control
Heating/forced cooling
Oil tank volume
30L
Max rail pressure
180Mpa,240Mpa(optional)
Diesel tank volume
52L
Flowmeter(fuel supplying)
1-400L/H
Flowmeter(injection)
4-550ml/min
Flowmeter(oil)
5-600L(H)
Flowmeter(fuel flow back)
4-550ml/min
Weight
1700kg
Test bench dimension
2250x1260x1920mm
Wooden case
2350x1500x2100mm

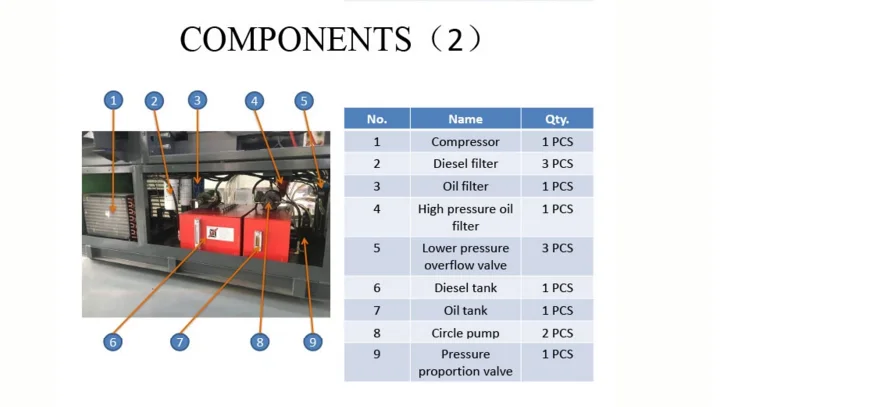

Details Images

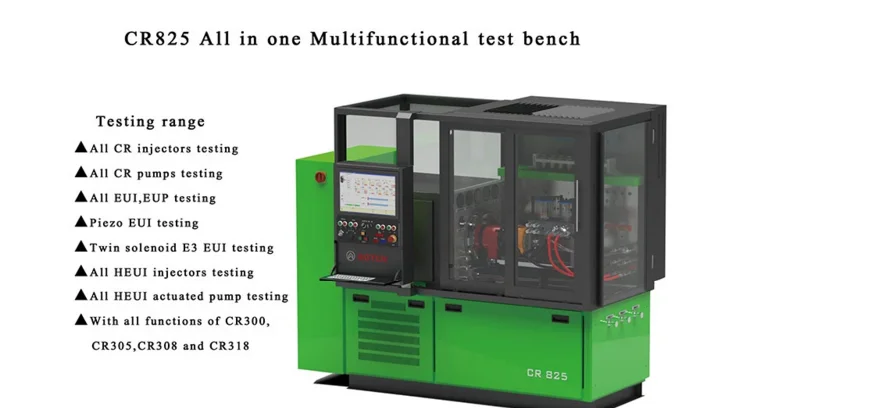

H- CR825 common rail control system components can be flexibly matching, to form different control platforms to meet the functional, cost, size, and many other needs, to achieve the best quality. In addition the device driver parameters can be flexibly adjusted to suit the pump and injector testing special models, ease of maintenance personnel working status Common Rail System judge and maintenance. The system can also be extended, such as centralized management of multiple devices, unified data reporting, especially for common rail device manufacturers batch testing.
CHARACTERISTIC:
1.Test all the manufacturers of common rail injector
2.Test all the manufacturers of piezo injector
3.Test all the manufacturers of common rail pump
4.Test DENSO HP0 pump
5.Test CAT common rail (HEUI) injector
6.Test CAT common rail (HEUI) engine oil pump
7.Test CAT 320D common rail pump (the world’s first successful development)
8.Test EUI/EUP (can adjust the lift but not to change the camshaft)
9.Test VP44 VE VP37 pump
10.Test RED3 RED4 TICS ZEXEL electronic control pump
11.Drive circuit board(solenold valve electric parameters to enhance the voltage
current,time,pull in voltage ,current,time,keep voltage ,current,time,according to the setting of parameters of production factory)
12.Accept the speed sensor ,encode signal,high speed solenoid valve drive signal.Accept the speed sensor ,encoder signal,output 2PWM drive signal, 2 way solenoid valve drive signal,1 high speed solenoid valve drive signal.
Driving signal waveform can be programed.
Product packaging
Packaging
The normal package is polywooden

box(Size: L*W*H). If export to

european countries,the wooden box

will be fumigated.If container is too

tigher,we will use pe film for packing

or pack it according to customers

special request
Company Profile
Tai'an haoshiyuan automobile testing equipment company has its own factory, and Italy is a joint venture founded in 1995, the company is located in the beautiful at the foot of Taishan, the existing 5 million yuan in fixed assets, more than 80 employees. Several of the earliest engaged in the frequency conversion speed injection pump test bench of senior engineers, engineers, technicians and computer software and hardware development experts. The introduction of advanced production and processing equipment and a full set of production technology and product design software, Italy has the world's advanced level of a variety of automotive testing and testing equipment.
Why Choose Us
Product production process using microcomputer control and digital display system, advanced production technology, strong technical force, can produce a variety of equipment 2330. Product quality, high technical performance, with micro control and digital display function. Products are sold all over the country, exported to more than and 20 countries and regions in the world.
Our business purpose is: by virtue of strong technical force, advanced equipment and scientific management to produce high quality products.
The company products Three Guarantees, transport agent, life-long service, training and technical personnel, to provide long-term technical advice
