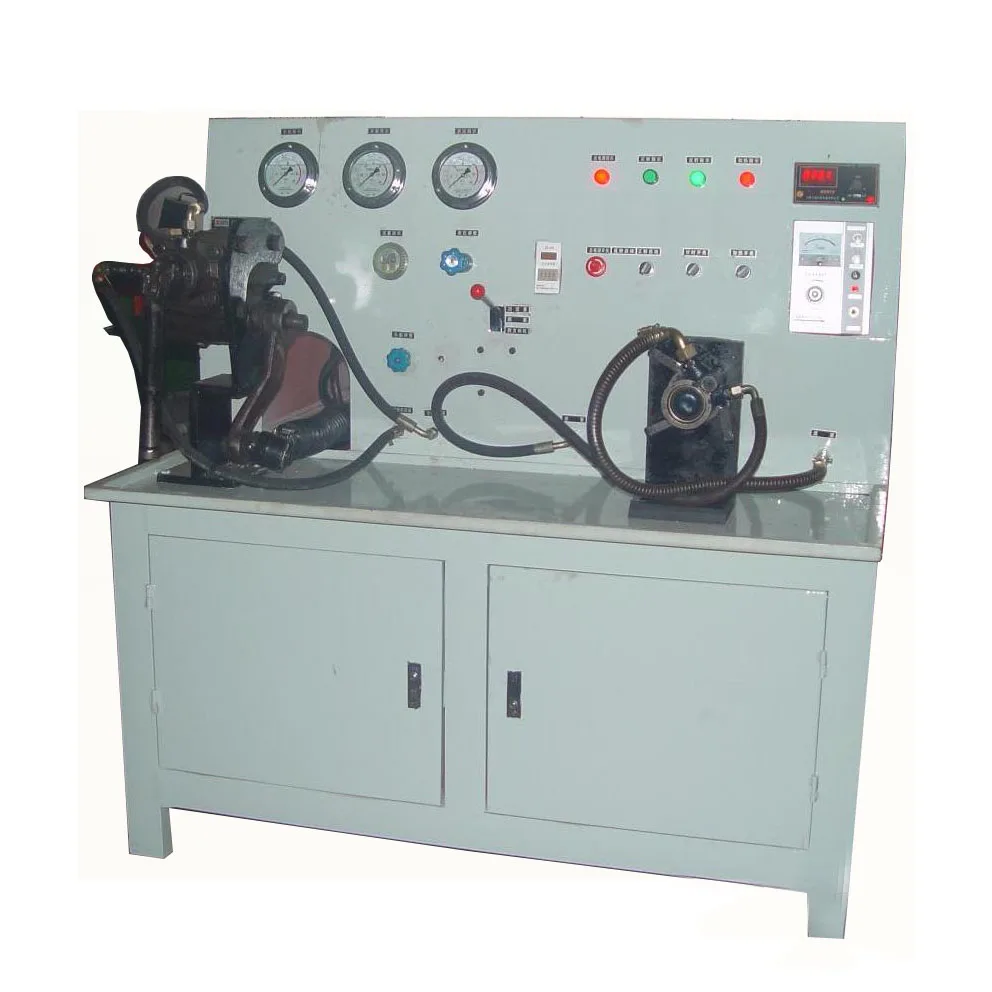

Best Selling Automotive Power Steering Pump Test Bench With High Quality
US$ 2,500 - 3,000
MOQ: 1 Set
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Factory Sale Power Steering Gear Pump Testing Hydraulic Test BenchUS$ 12,000 - 22,000MOQ: 1 Set -
Haoshiyuan Hydraulic Pump Test Bench for SaleUS$ 4,200 - 8,800MOQ: 1 Set
-
Hydraulic Pump Test BenchUS$ 4,200 - 8,800MOQ: 1 Set
-
Haohiyuan Brand Hydraulic Pump Test BenchUS$ 4,200 - 8,800MOQ: 1 Set
-
Auto Service Power Steering Test Bench Injector Pump MachineUS$ 2,500 - 3,000MOQ: 1 Set
Brand Name
Haoshiyuan
Company Profile
Tai'an haoshiyuan automobile testing equipment company has its own factory, and Italy is a joint venture founded in 1995, the company is located in the beautiful at the foot of Taishan, the existing 5 million yuan in fixed assets, more than 80 employees. Several of the earliest engaged in the frequency conversion speed injection pump test bench of senior engineers, engineers, technicians and computer software and hardware development experts. The introduction of advanced production and processing equipment and a full set of production technology and product design software, Italy has the world's advanced level of a variety of automotive testing and testing equipment.
Product Description
introduction
The direction of machine testing equipment using hydraulic system, the host constant speed digital table shows the test oil constant temperature control.
Symmetry detection power steering, left and right torque, internal leakage, steering, heavy unilateral. Power steering pump pressure, flow, sealing and valve sealing hydraulic steering system failure. Hydraulic pump can be adjusted at any time of the working conditions of the hydraulic system to detect various parameters of the components. Particularly adapted to the inspection and testing of heavy vehicles hydraulic steering and performance. The machine uses pressure gauge torque, work pressure and other parameters.
Adjustments for heavy steering, shock and vibration, manipulation instability, steering kickback steering noise, oil leakage.
Symmetry detection power steering, left and right torque, internal leakage, steering, heavy unilateral. Power steering pump pressure, flow, sealing and valve sealing hydraulic steering system failure. Hydraulic pump can be adjusted at any time of the working conditions of the hydraulic system to detect various parameters of the components. Particularly adapted to the inspection and testing of heavy vehicles hydraulic steering and performance. The machine uses pressure gauge torque, work pressure and other parameters.
Adjustments for heavy steering, shock and vibration, manipulation instability, steering kickback steering noise, oil leakage.
Function
01.Detection vehicle direction of machine to help force-cylinder the output power of symmetry.
02.Detection, vehicle direction of machine left and right torque.
03.Testing help force cylinder internal leakage.
04.Detection of power steering pumps pressure flow, sealing performance.
05.Detection, vehicle direction of machine, Steering resistance
06.Detection, vehicle direction of machine Shock and vibration
07.Detection, vehicle direction of machine,Shock and vibration.
08.Detection, vehicle direction of machine shifting back jump.
09.Detection, vehicle direction of machine Steering noise.
10.testing Hydraulic oil leakage.
01.Detection vehicle direction of machine to help force-cylinder the output power of symmetry.
02.Detection, vehicle direction of machine left and right torque.
03.Testing help force cylinder internal leakage.
04.Detection of power steering pumps pressure flow, sealing performance.
05.Detection, vehicle direction of machine, Steering resistance
06.Detection, vehicle direction of machine Shock and vibration
07.Detection, vehicle direction of machine,Shock and vibration.
08.Detection, vehicle direction of machine shifting back jump.
09.Detection, vehicle direction of machine Steering noise.
10.testing Hydraulic oil leakage.
Voltage | 380V50HZ |
Hydraulic pump | three-phase motor |
Power | 5.5kw |
Speed | 0--4000r/mm |
Pressure range | 0-25mpa continuously adjustable |
Torque | 0-4200n. M |
Air source | 0~1MPa continuously adjustable |
Number of turning turns | 0-9999.9 |
Around the corner | ?5 |
Hydraulic components | 0~15Mpa |

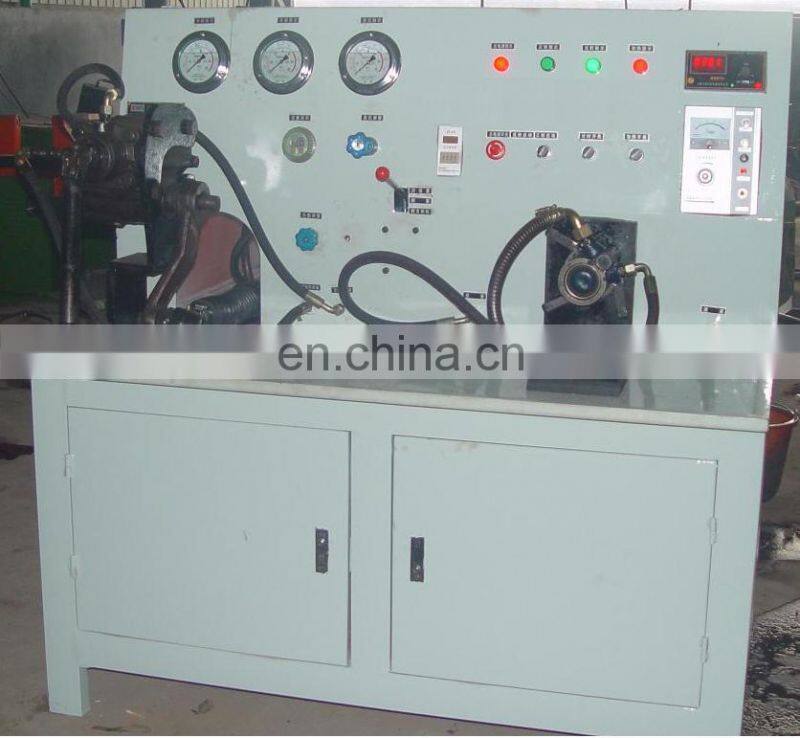

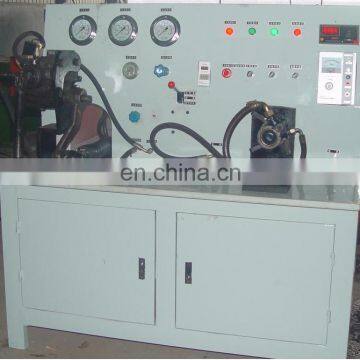

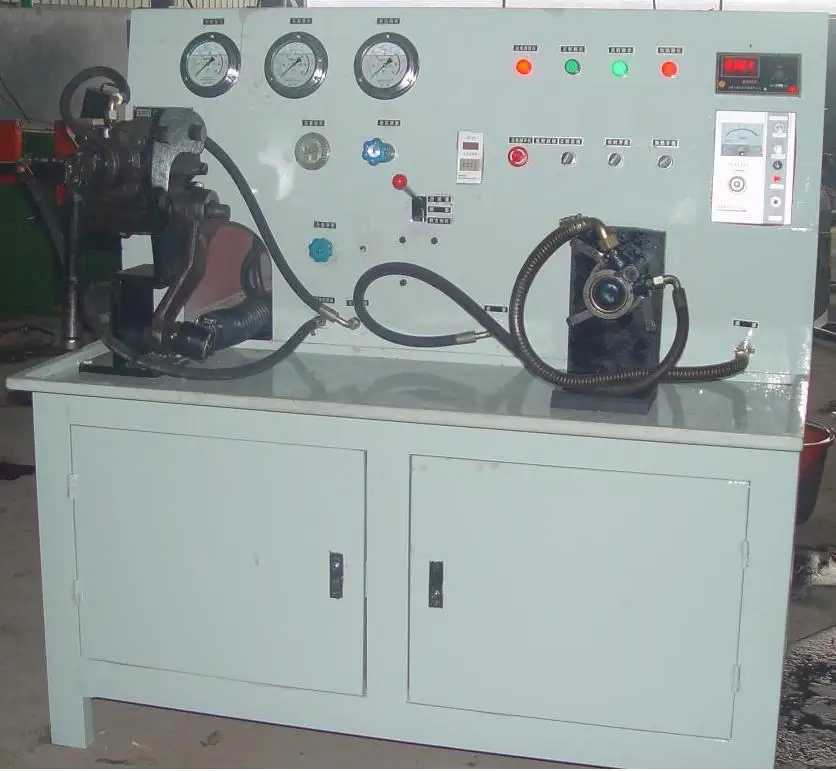

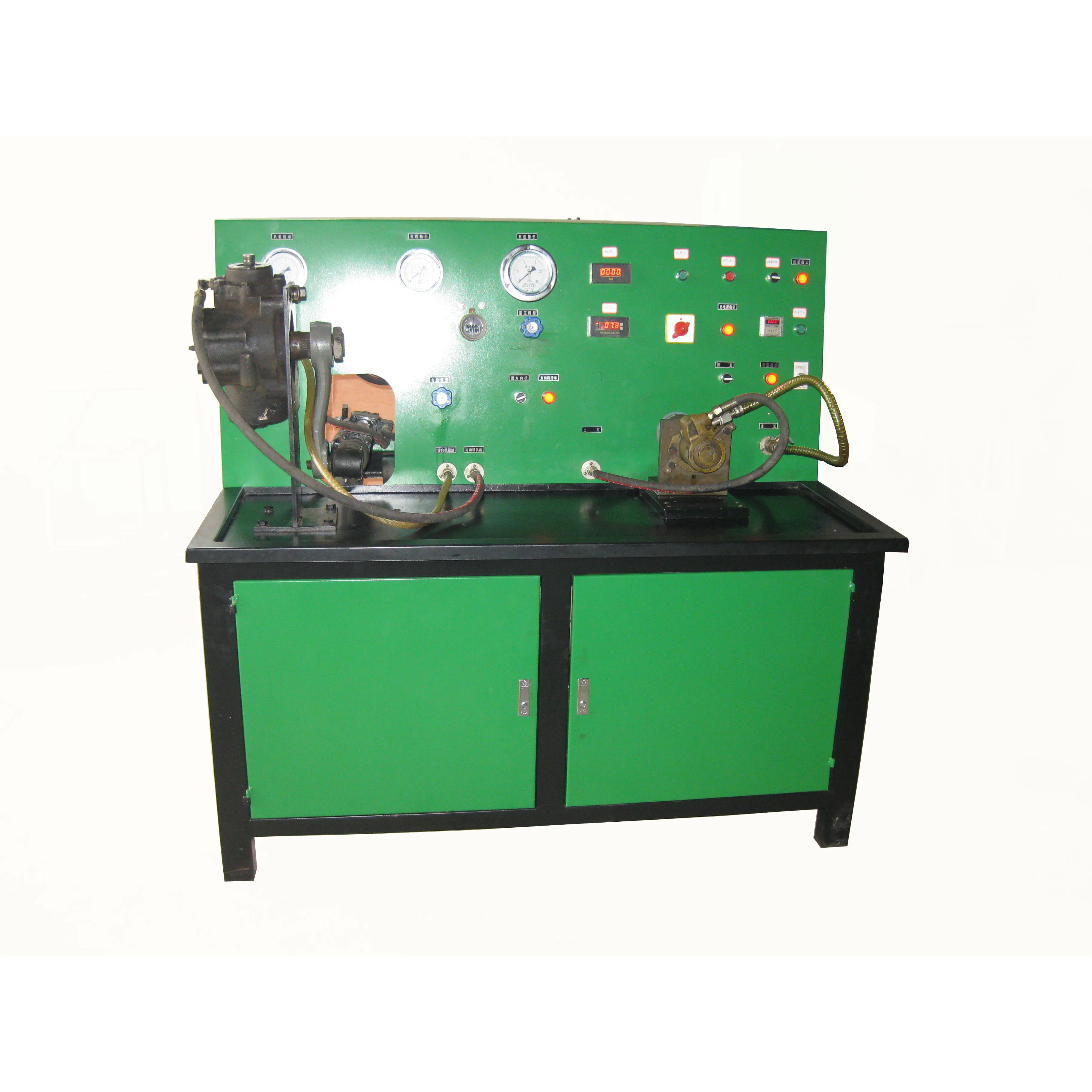

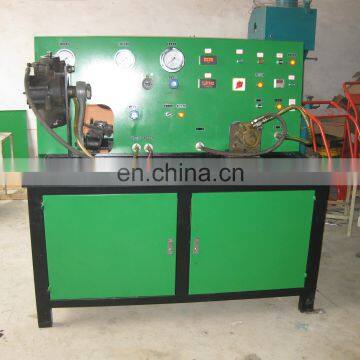

Details Images
Standard configuration:
display: Torque, speed Voltage, current
02.Mechanical table display: oil pressure
03.power supply:380V 50Hz
04.Pump supply: Three-phase electric motor
05.Output power :4 KW
06.Rotation rate:950 R/M
07.Oil Pump:0-15 MPa
08.Moment of torsion:0-4200N
09.Corner:+/-45oC
10.Net weight:600 KG
11.Overall dimensions:1600X1300X1500mm
display: Torque, speed Voltage, current
02.Mechanical table display: oil pressure
03.power supply:380V 50Hz
04.Pump supply: Three-phase electric motor
05.Output power :4 KW
06.Rotation rate:950 R/M
07.Oil Pump:0-15 MPa
08.Moment of torsion:0-4200N
09.Corner:+/-45oC
10.Net weight:600 KG
11.Overall dimensions:1600X1300X1500mm
Product packaging
Packaging
The normal package is polywooden
box(Size: L*W*H). If export to
european countries,the wooden box
will be fumigated.If container is too
tigher,we will use pe film for packing
or pack it according to customers
special request
box(Size: L*W*H). If export to
european countries,the wooden box
will be fumigated.If container is too
tigher,we will use pe film for packing
or pack it according to customers
special request
Why Choose Us
Product production process using microcomputer control and digital display system, advanced production technology, strong technical force, can produce a variety of equipment 2330. Product quality, high technical performance, with micro control and digital display function. Products are sold all over the country, exported to more than and 20 countries and regions in the world.
Our business purpose is: by virtue of strong technical force, advanced equipment and scientific management to produce high quality products.
The company products Three Guarantees, transport agent, life-long service, training and technical personnel, to provide long-term technical advice
Our business purpose is: by virtue of strong technical force, advanced equipment and scientific management to produce high quality products.
The company products Three Guarantees, transport agent, life-long service, training and technical personnel, to provide long-term technical advice
