China BD960-CCIT New Model of 12 PSDW 12PSB Diesel Injection Pump Test Bench,injector Pump Test Bench

China BD960-CCIT New model of 12PSB diesel fuel injection pump test bench,injector pump test bench

China BD960-CCIT New model of 12PSB diesel fuel injection pump test bench,injector pump test bench

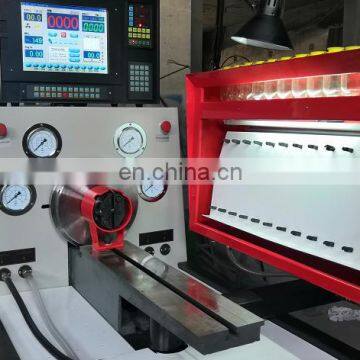

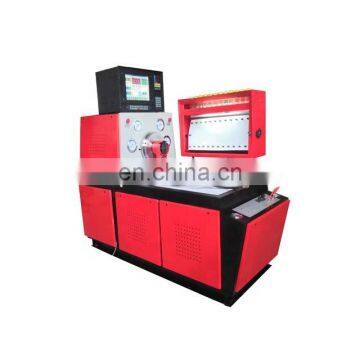

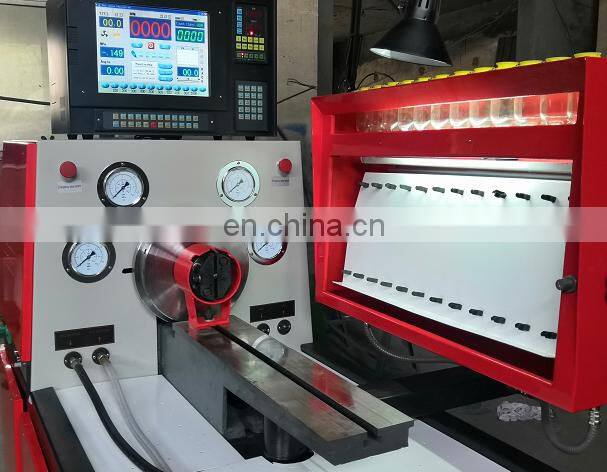

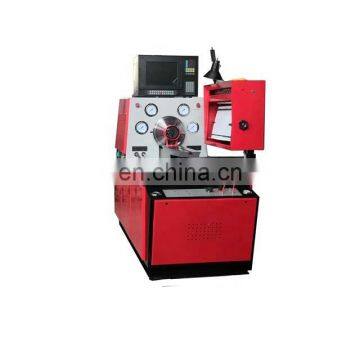

BD960-CCIT diesel fuel injection pump test bench adopts industrial pc with color CRT, it is the newly researched device  for the direction of high power and environment protection.

It has human-machine interface, digital control of rpm, temperature, pressure, diesel fuel pump technical parameter etc. and prints synchronously.

It is operated easily and quickly and human-machine dialog realized.

The test bench is installed with high quality frequency conversing device and  cast-iron based supper size bed.

Technical Parameters of common rail diesel injector tester:

China BD960-CCIT New model of 12PSB diesel fuel injection pump test bench,injector pump test bench

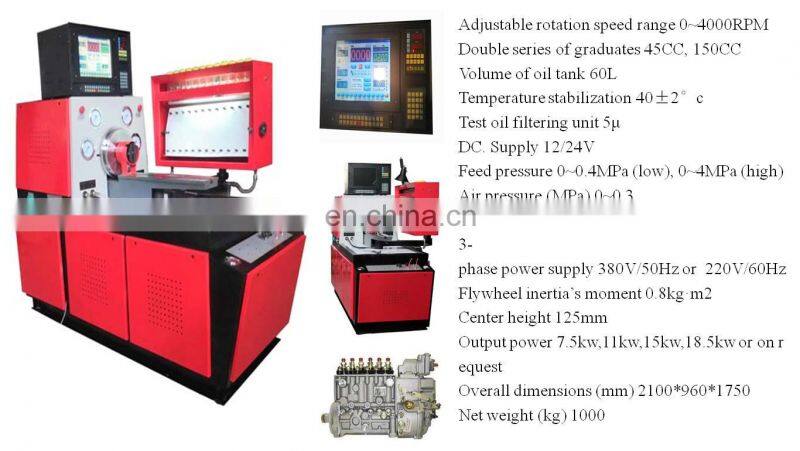

Parameter:

1. Adjustable rotation speed range: 0~4000RPM;

2. Double series of graduates: 45CC and 150CC

3. Volume of oil tank: 60L;

4. Temperature stabilization: 40±2℃;

5. Test oil filtering unit: 5μ;

6. DC. Supply: 12/24V;

7. Feed pressure: 0~0.4MPa (low), 0~4MPa (high);

8. Air pressure (MPa): -0.03~0.3;

9. Rack travel range: 0~25mm;

10. 3-phase power supply: 380V/50Hz or on request;

11. Flywheel inertia’s moment: 0.8kg·m^2;

12. Center height: 125mm;

13. Output power: 11kw etc.

14. Overall dimensions (mm): 2100×850×1700;

15. Net weight (kg): 800kg.

Function of 12psb injection pump test bench:

1.Measurement of each cylinder delivery at any speed.

2. Test point and interval angle of oil supply of injection pump.

3. Checking and adjust the mechanical governor.

4. Checking and adjusting the distributor pump.

5.Experiment and adjusting of behavior of supercharging and compensatory device.

6. Measurement of oil return of distributing pump

7. Testing of the electromagnetic valve of distributor pump.(12V/24V)

8. Measurement of the internal pressure of distributor pump.

9. Checking of the advance angle of advance device.(on request)

10. Checking the sealing of injection pump body

11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)

12. Checking the travel of stroke

13. Oil lubricate(on request)

14.Cast iron base(on request)

Advantage of 12psb injection pump test bench:

1. human-machine interface, digital control of rpm, temperature, pressure

2. is installed with high quality frequency conversing device and  cast-iron based supper size bed

3. Provide pressure overload protect

4. operated easily and quickly and human-machine dialog realized

5. Injection time can be set.

6. Protection function of short-circuit.

7. Precise measurement, easy operation, low noise.
