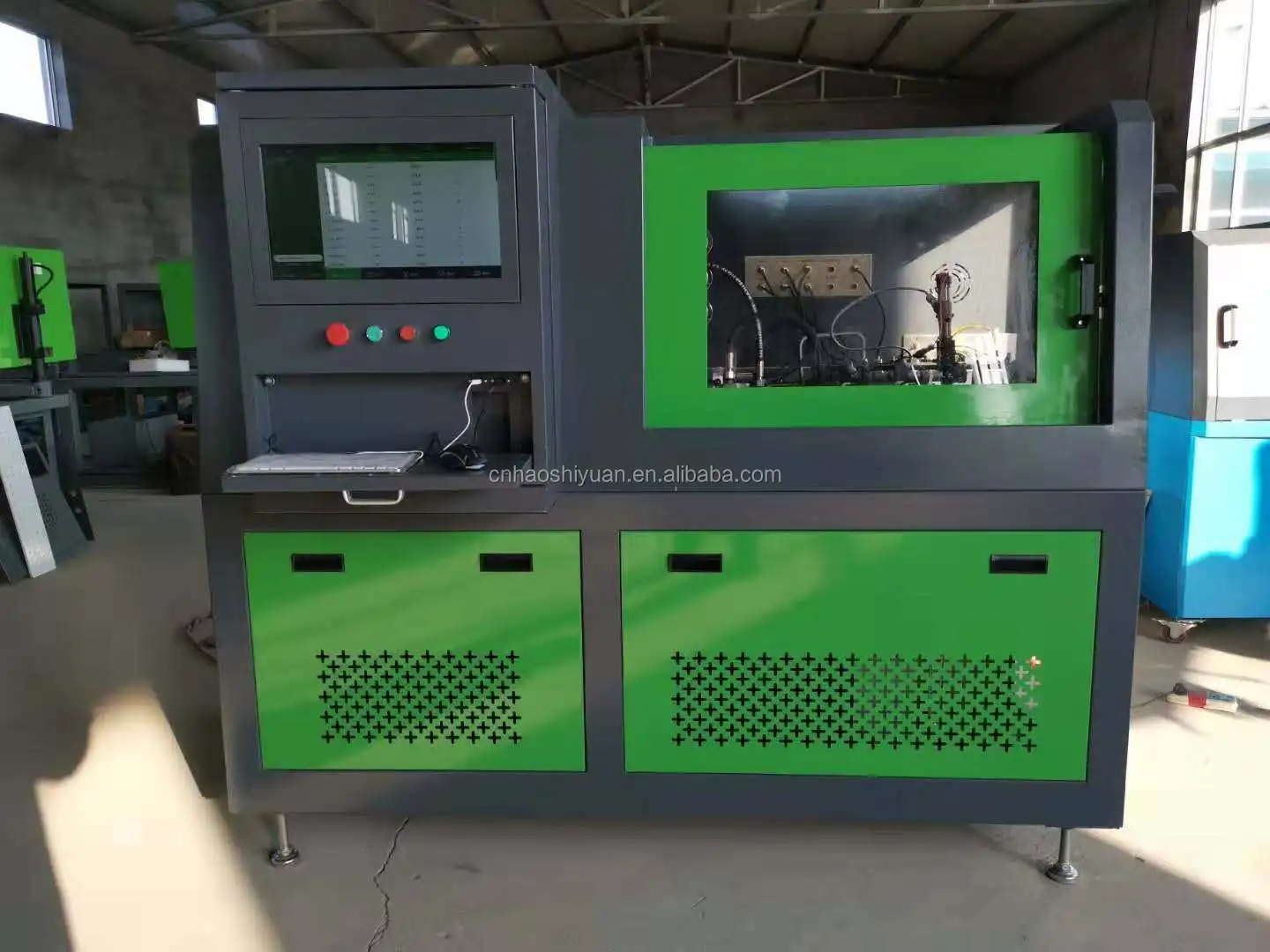

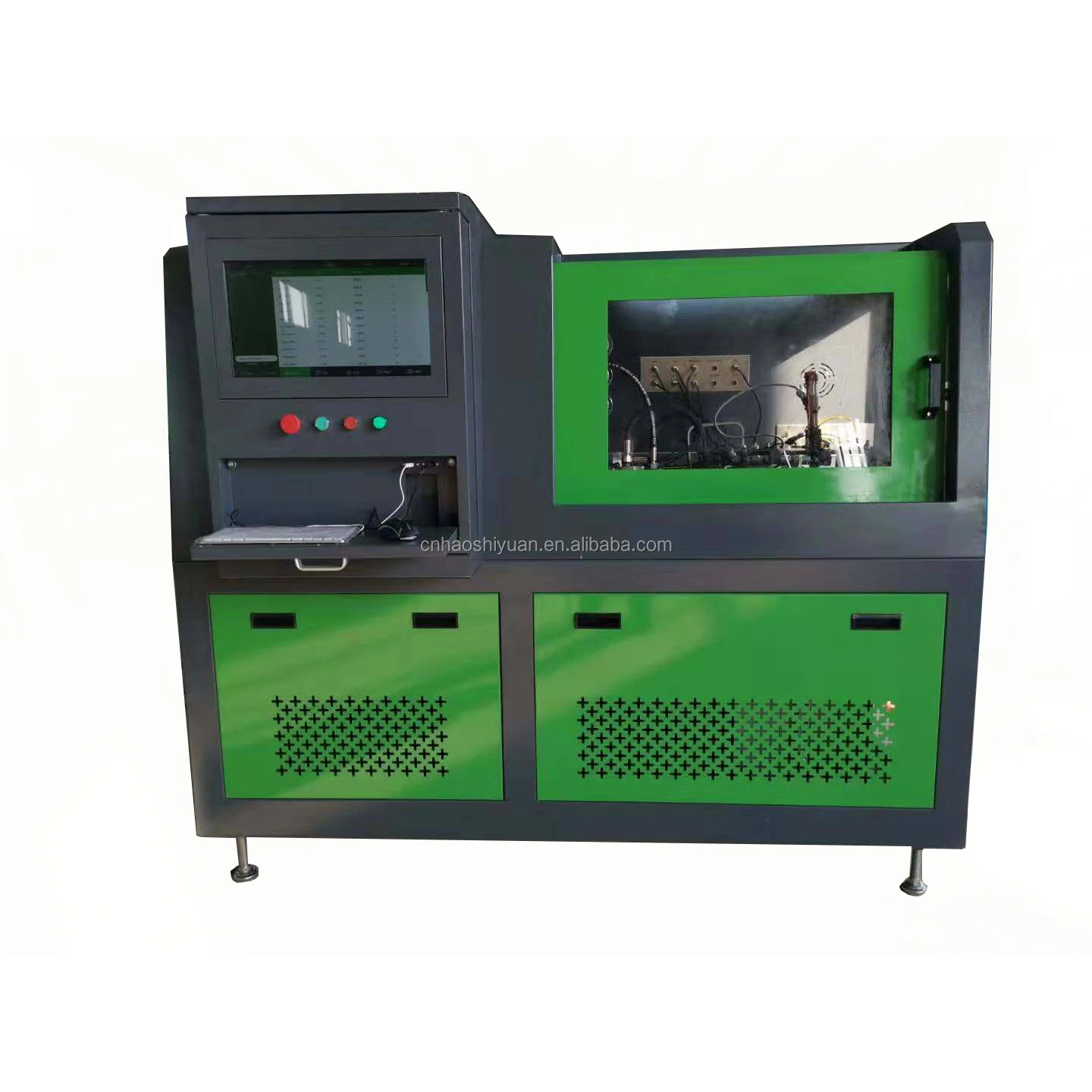

Home > Auto, Motorcycle Parts & Accessories > Vehicle Repair Equipment & Tools > Diagnostic Tool > CR819 Common Rail Injector And Pump Tester
US$ 7,500 - 8,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HAOSHIYUAN
Place of Origin:
Shandong, China
Model Number:
CR819
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CRI201 Common Rail Injector Tester Diesel For SaleUS$ 120 - 140MOQ: 1 Set -
CR819 Common Rail Diesel Injector Test Bench With Industrial Computer Real-time Monitoring and ControlUS$ 7,500 - 8,500MOQ: 1 Set
-
CRI201 Common Rail Electronic Injector Tester Diesel Injector Pump Test BenchUS$ 120 - 140MOQ: 1 Set
-
CRI201 Common Rail Injector Tester Diesel For SaleUS$ 120 - 140MOQ: 1 Set
-
CR819 Common Rail Injector Test Bench Common Rail Diesel Injector Test BenchUS$ 7,500 - 8,500MOQ: 1 Set
Brand Name
HAOSHIYUAN
Place of Origin
Shandong, China
Model Number
CR819
Type
Engine Analyzer
Certification
CE, ISO
Voltage
220V/380V
Power
7.5kw
Warranty
12 Months
Applicable Models
all car
Products Description
Rated output power Electronic | 7.5KW ,11KW,15KW,18.5KW (on request) |
power | 3PHASE 380V 50HZ 1PHASE 220V 60HZ |
Motor speed | 0-4000RPM |
Model Number | CR819 |
Pressure adjustment | 0-2500bar |
Certification | CE, ISO |
Fuel temperature | 40 ±2℃ |
Flow testing range | 0-600ml/1000times |
Flow measurement accuracy | 0.1ml Filter accuracy less than 5um |
MOQ | 1 Piece |
Fuel tank capacity | 60L |
Size | 1900MM * 900MM * 1500MM |
Weight | 800KG |
Main Features
1. Industrial computer real-time monitoring and control, windows system, 19 # LCD display
2. The amount of oil system imported flow sensor (imported from Australia)
3. The original high pressure common rail pump CP3H produces 0-1600 bar rail pressure.
4. Real-time measurement of rail pressure, closed-loop control, and has high pressure protection.

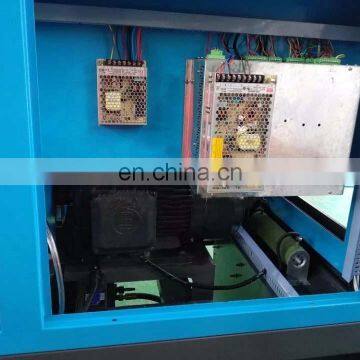

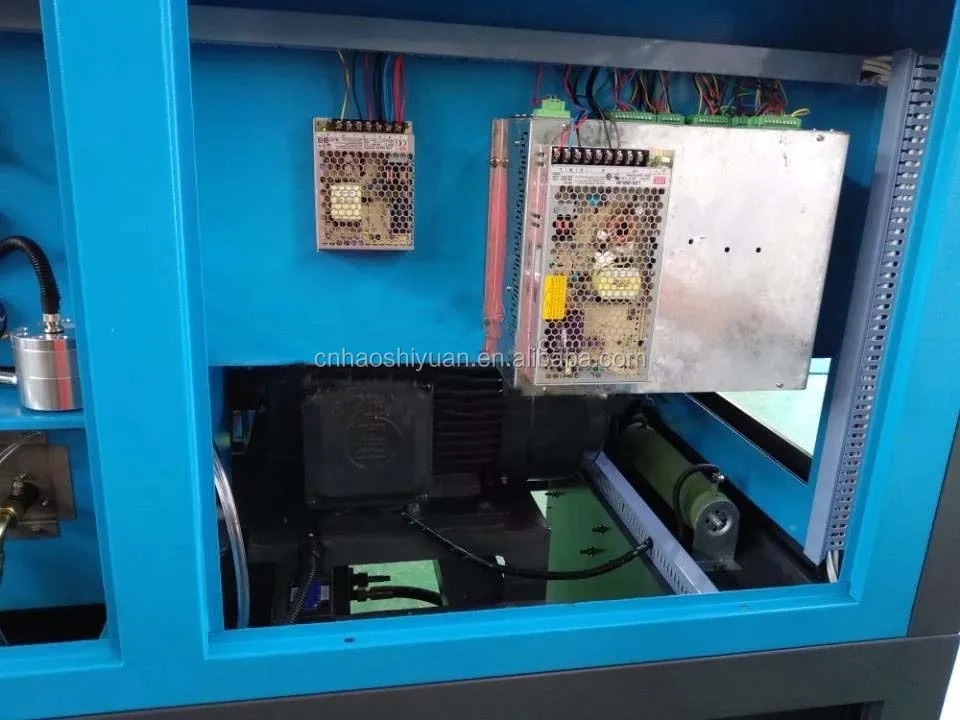

5. Rail pressure control hardware, circuit using Group, proportional valve control amplifier made to ensure the
2. The amount of oil system imported flow sensor (imported from Australia)
3. The original high pressure common rail pump CP3H produces 0-1600 bar rail pressure.
4. Real-time measurement of rail pressure, closed-loop control, and has high pressure protection.
5. Rail pressure control hardware, circuit using Group, proportional valve control amplifier made to ensure the
stability of the control accuracy
6. Fuel injector drive circuit using sine wave PWM low power consumption pulse width modulation drive circuit
6. Fuel injector drive circuit using sine wave PWM low power consumption pulse width modulation drive circuit
to improve the current waveform and stability, to achieve accurate test requirements
7. Support high-speed solenoid valve common rail injector, and CRIN high-pressure common rail technology of
7. Support high-speed solenoid valve common rail injector, and CRIN high-pressure common rail technology of
the piezoelectric crystal common rail injector, the maximum can start 4-6 injector (optional)
8. Built-in 1600 kinds of common rail injector standard test data.
9. According to the measured fuel injection, the system can automatically assess the fuel injector is qualified,
8. Built-in 1600 kinds of common rail injector standard test data.
9. According to the measured fuel injection, the system can automatically assess the fuel injector is qualified,
according to the measured results, print the test data report.
10. Support Internet remote control, real-time remote control operation and remote operation assistance.
11. Equipped with a key to restore the system to prevent misuse due to the loss of system data.
10. Support Internet remote control, real-time remote control operation and remote operation assistance.
11. Equipped with a key to restore the system to prevent misuse due to the loss of system data.
Function
1. Can detect Bossch, Densso, Siesmens and other common rail injectors.
2. Detection of the maximum fuel injection, oil return, discharge points, pre-injection, idle point.
3. Check the sealing of the common rail injector, check the nozzle, grease cap, solenoid valve body, etc. are oil.
4. Can be cleaned to repair the fuel injector due to pollution caused by the failure.
5. Can be carried out atomization test, observe the atomization of the injector nozzle and determine whether the
2. Detection of the maximum fuel injection, oil return, discharge points, pre-injection, idle point.
3. Check the sealing of the common rail injector, check the nozzle, grease cap, solenoid valve body, etc. are oil.
4. Can be cleaned to repair the fuel injector due to pollution caused by the failure.
5. Can be carried out atomization test, observe the atomization of the injector nozzle and determine whether the
nozzle is blocked, smooth.
6. Can query, store, compile, modify, print and save data, into the database.
7. Can be a key automatic operation, improve efficiency

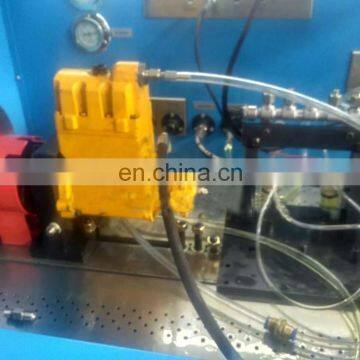

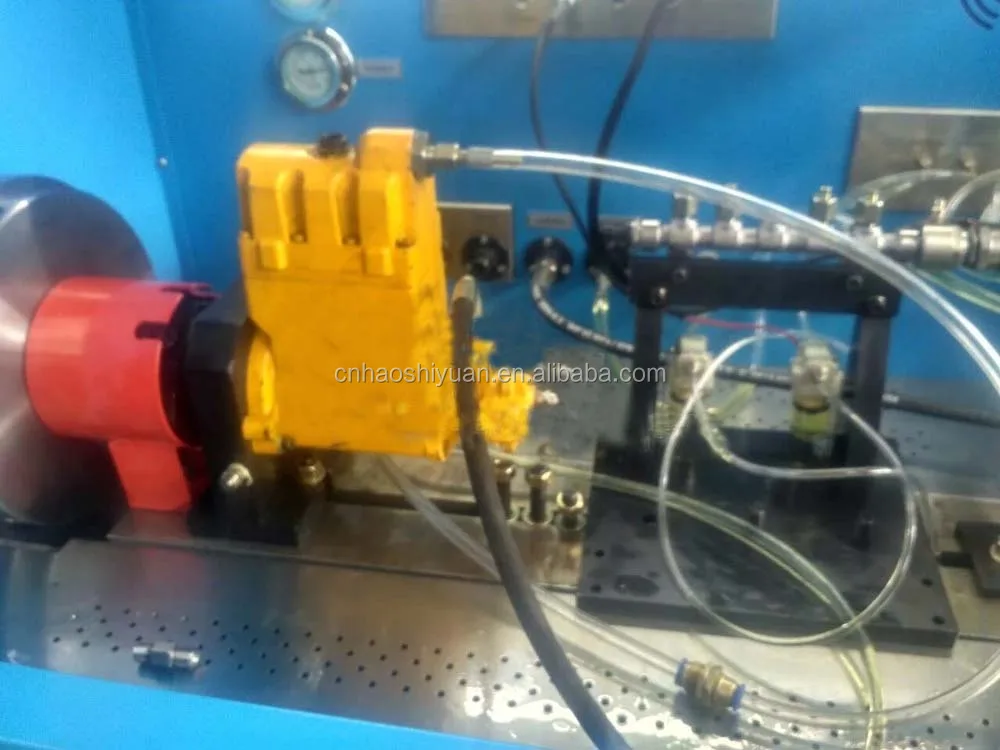

8. Can test high pressure common rail pump CP1, CP2, CP3, HP3, HP4, DELPHHI
9. Can be a folder 4 or 6 injectors for testing (optional), the formation of test reports.
6. Can query, store, compile, modify, print and save data, into the database.
7. Can be a key automatic operation, improve efficiency
8. Can test high pressure common rail pump CP1, CP2, CP3, HP3, HP4, DELPHHI
9. Can be a folder 4 or 6 injectors for testing (optional), the formation of test reports.
Product packaging
Packaging
The normal package is polywooden
box(Size: L*W*H). If export to
european countries,the wooden box
will be fumigated.If container is too
tigher,we will use pe film for packing
or pack it according to customers
special request
box(Size: L*W*H). If export to
european countries,the wooden box
will be fumigated.If container is too
tigher,we will use pe film for packing
or pack it according to customers
special request
Company Profile
Tai'an haoshiyuan automobile testing equipment company has its own factory, and Italy is a joint venture founded in 1995, the company is located in the beautiful at the foot of Taishan, the existing 5 million yuan in fixed assets, more than 80 employees. Several of the earliest engaged in the frequency conversion speed injection pump test bench of senior engineers, engineers, technicians and computer software and hardware development experts. The introduction of advanced production and processing equipment and a full set of production technology and product design software, Italy has the world's advanced level of a variety of automotive testing and testing equipment.
Why Choose Us
Product production process using microcomputer control and digital display system, advanced production technology, strong technical force, can produce a variety of equipment 2330. Product quality, high technical performance, with micro control and digital display function. Products are sold all over the country, exported to more than and 20 countries and regions in the world.
Our business purpose is: by virtue of strong technical force, advanced equipment and scientific management to produce high quality products.
The company products Three Guarantees, transport agent, life-long service, training and technical personnel, to provide long-term technical advice
Our business purpose is: by virtue of strong technical force, advanced equipment and scientific management to produce high quality products.
The company products Three Guarantees, transport agent, life-long service, training and technical personnel, to provide long-term technical advice
