EUI/EUP Cambox and Camshaft Tester All Electronic Unit Pump and Injector
US$ 2,200 - 2,400
/ Set
1 Set(Min. Order)
- Qingdao
- T/T Credit Card
You May Like
-
XBD-CRS825 Common Rail Injector Test Bench Diesel Injection Pump Test Bench
-
Common Rail Injector Test Bench XBD-CRS 708
-
EPS 708 Common Rail Test Bench Computerized Fuel Diesel Injector Pump Calibration Machine HEUI EUI EUP Common Rail Tester
-
XBD-HEUI /CRI618 Common Rail Injector and HEUI Injector Test Bench
-
The Best Selling Cat HEUI C7 / C9 Injector Test Bench With Computer and Test Data in 2020
-
New Design High Pressure XBD-CRI618 CAT HEUI EUI EUP Common Rail Diesel Fuel Injector and Injection Pump Test Bench
Product Details
| Brand Name | xinbaodi | Place of Origin | Shandong, China | |
| Model Number | EUI/EUP Cambox and Camshaft tester | |||
| Certification | CE | Voltage | 220V 60Hz | |
| Power | 2w-5w, 2w-5w, AC220V 60Hz | Warranty | 12 Months | |
| Applicable Models | fuel injection pump tester, DIESEL ENGINE VEHICLES |
Product Description
Product Description
EUI EUP tester with Cambox
Detailed Images
EUI EUP tester Features:
1. Four camshafts with four (4) levels of lift and constant cam velocity
2. Cam box mounting height 125mm (from the center of camshaft to bench mounting platform);
3. A speed sensor installed on the cam box for injection synchronization;
4. Feed back controlled and modulated driving current signal to ensure proper fuel injection of EUI/EUP, regardless of its solenoid characteristics;
5. User adjustable start of injection (SOI) angle and pulse width of solenoid driving signal;
6. Short circuit protection for the output circuitry of the solenoid driving signal;

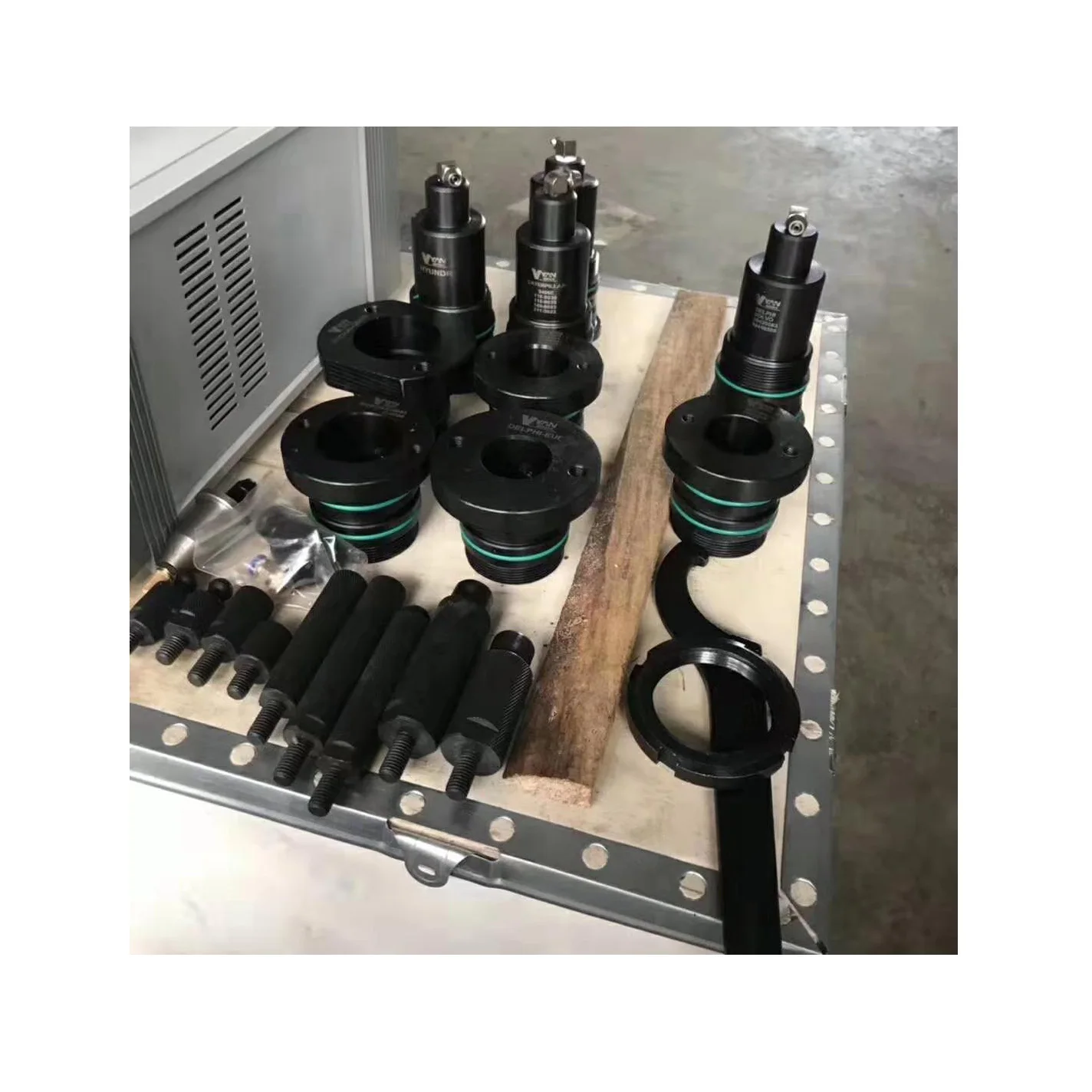

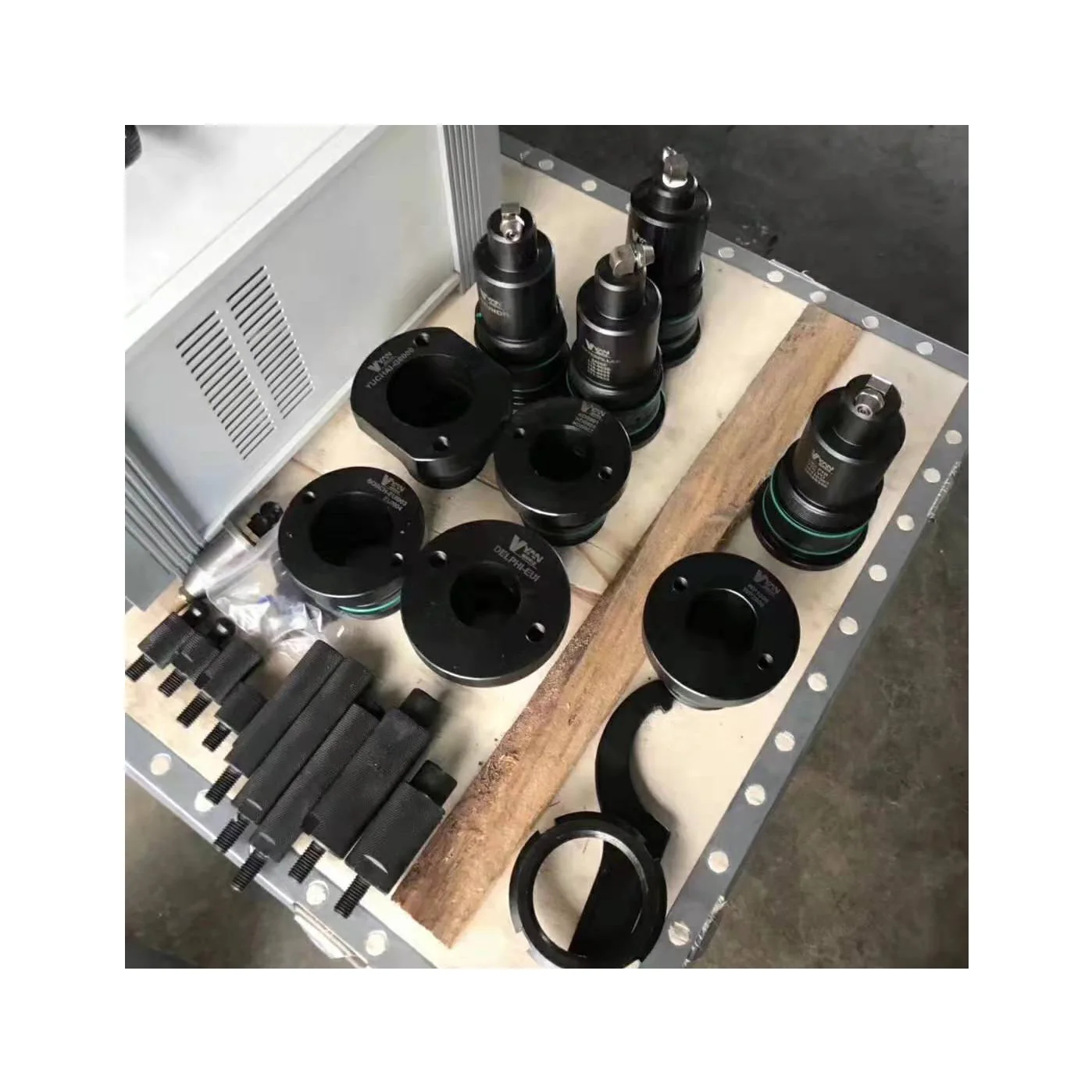

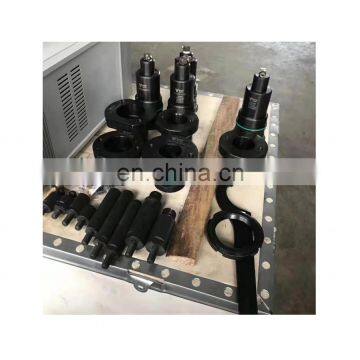

7. Adapters for most EUIs/EUPs on the market, including Bosch, Delphi,Cummins, CAT, Detroit Diesel, MTU, Freightliner, Volvo
After Sales Service
Introduction:
The repair tester is designed to perform repair tests for different type of Electronic Unit Injectors(EUI) and Electronic Unit
Pumps(EUP).

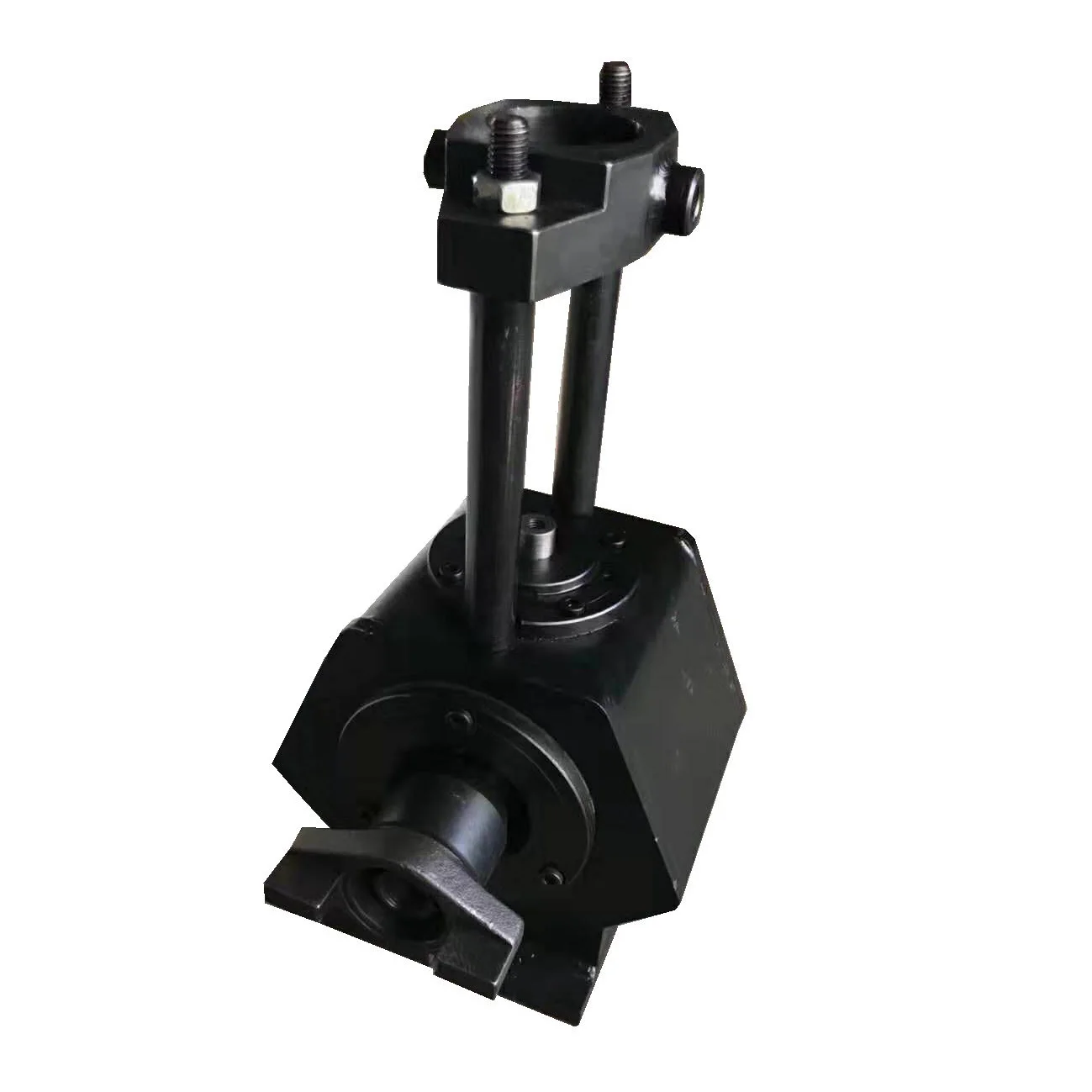

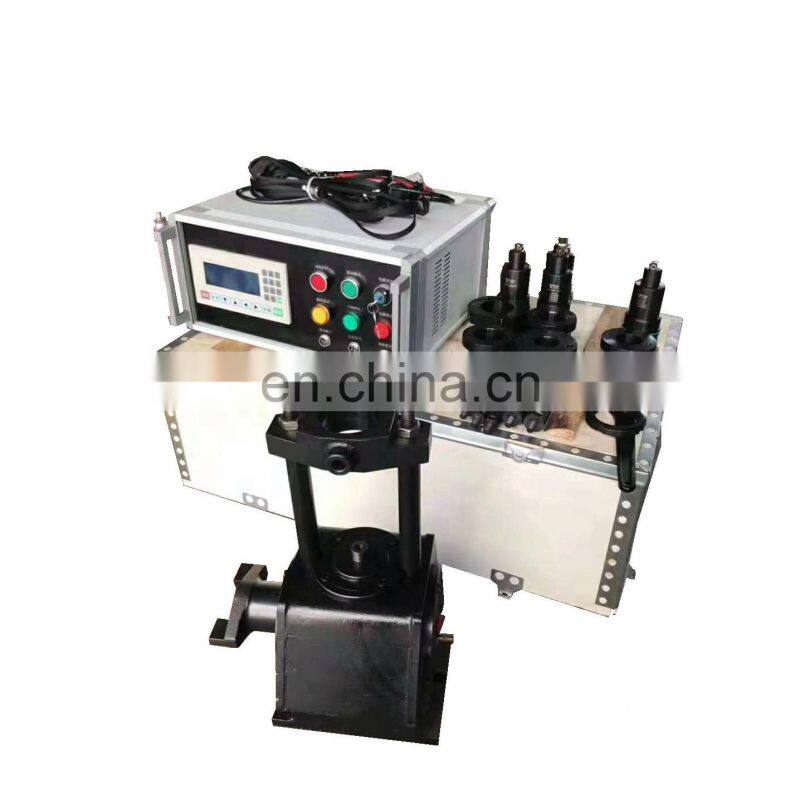

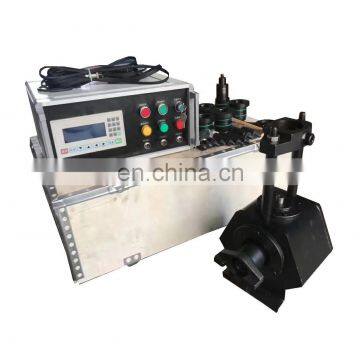

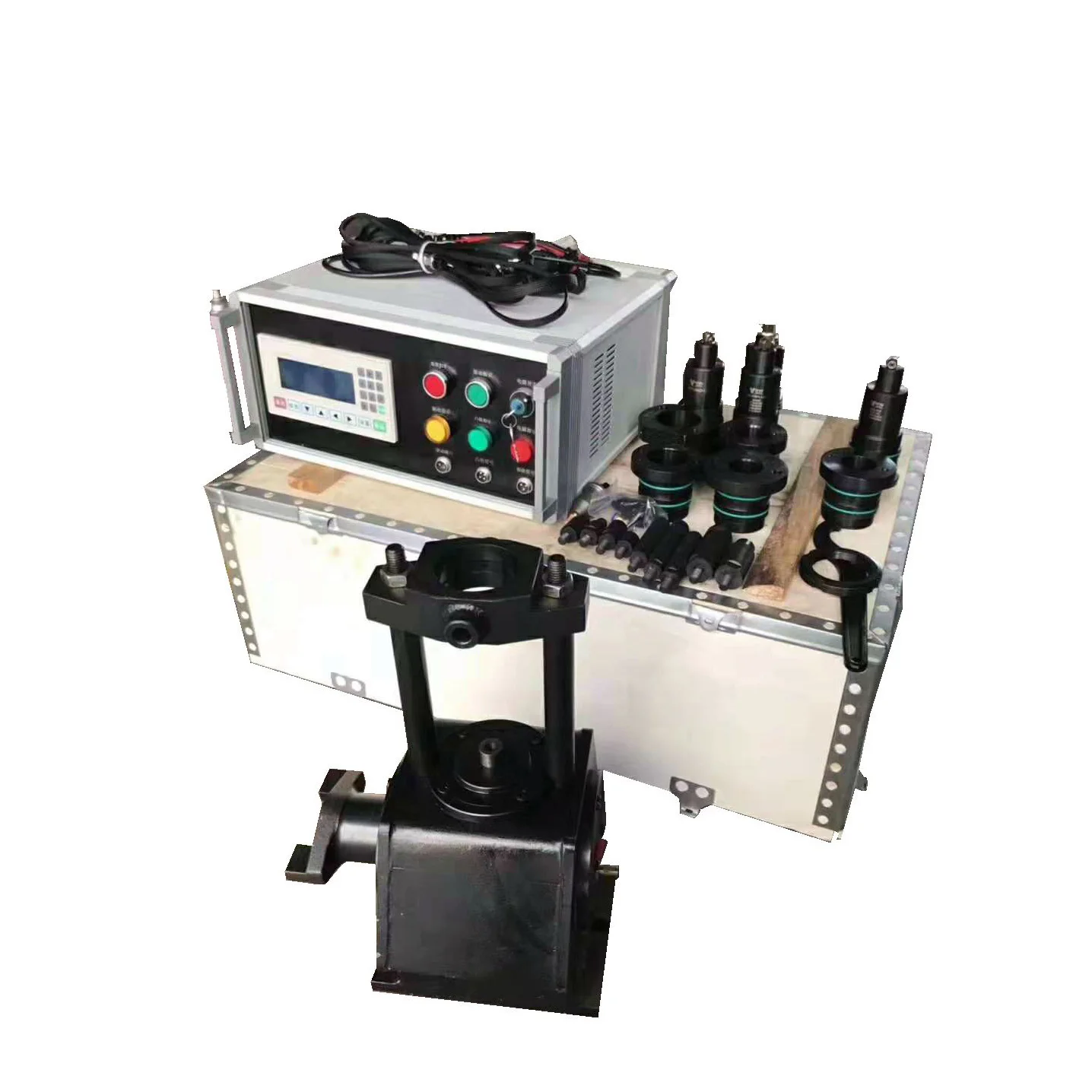

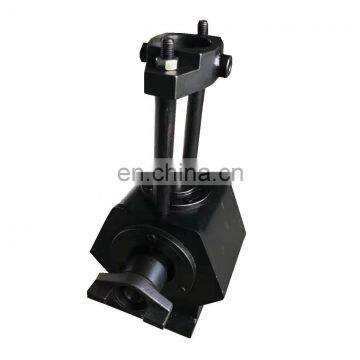

The tester consists of a mechanical cam box with specified EUI/EUP adapter kits and electronic controller. The cam box will be
driven by a standard high pressure fuel injection pump test bench.

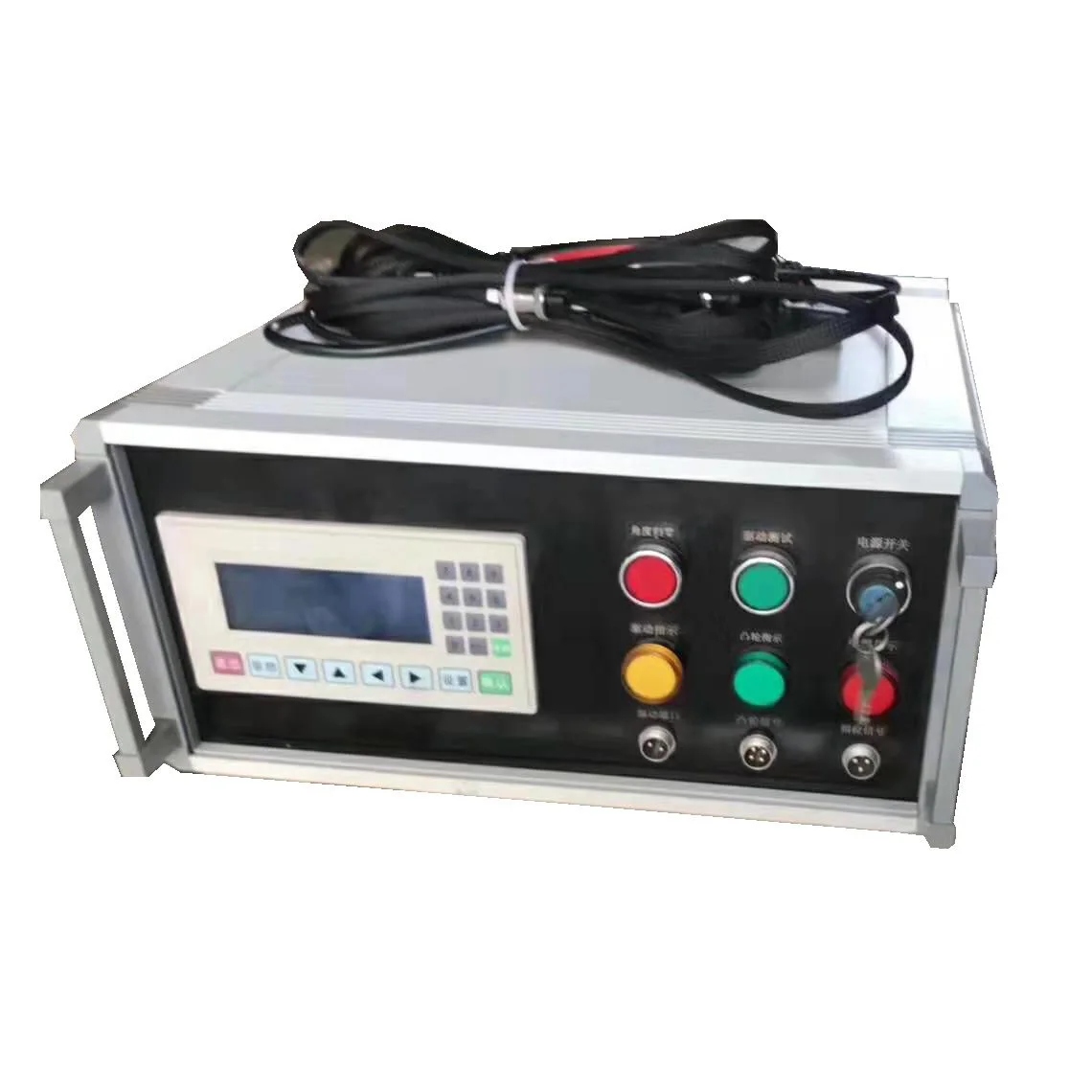

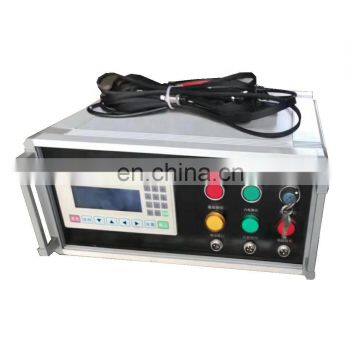

The EUP/EUI being tested will be installed in the cam box with the adapter. The electronic controller provides signal to drive the
EUP solenoid synchronous with cam shaft rotation.
The EUP fuel outlet is connected through high pressure fuel line to an injector. The EUP fuel injection quantities can be checked
at given speeds and loads to judge its quality.
Pumps(EUP).
The tester consists of a mechanical cam box with specified EUI/EUP adapter kits and electronic controller. The cam box will be
driven by a standard high pressure fuel injection pump test bench.
The EUP/EUI being tested will be installed in the cam box with the adapter. The electronic controller provides signal to drive the
EUP solenoid synchronous with cam shaft rotation.
The EUP fuel outlet is connected through high pressure fuel line to an injector. The EUP fuel injection quantities can be checked
at given speeds and loads to judge its quality.
Related Products
Packing&Shipping
1, Foam & shrink film 2, wooden case or plywood case
standard export packing or as customers' needs
Company Introduction
Taian Xinbaodi Testing Equipment Co., Ltd. is a manufacturer pecially produced fuel injection pump test bench in China for 20years. Thecompany offers customized products and OEM services. New collections and designs are launched every year. The factory has skilledskills and updated machines, and we have excellent engineers and designers to serve your order.
Our Services & Strength
Taian Xinbaodi Test Equipment Co., Ltd., pecially produced fuel injection pump test bench in China for 20 years, we have excellent engineers and designers for your order. Welcome to send me a plan / drawing for offer a reasonable quotation.
Certifications
FAQ
Q:Can I visit you?Are you trading company or manufacturer?
A:Sure, we are manufacturer. Our factory is located in Tai'an, Shandong, China, and has more than 20 years of professional
production experience.Warmly welcome to visit our factory if it's convenient for you, please contact us to make an appointment and supply the pick-up service and hotel reservation service.
Q:How many days do you need for delivery?
A:Sure, we are manufacturer. Our factory is located in Tai'an, Shandong, China, and has more than 20 years of professional
production experience.Warmly welcome to visit our factory if it's convenient for you, please contact us to make an appointment and supply the pick-up service and hotel reservation service.
Q:How many days do you need for delivery?
A: Some of our machines have stock available,once you ordered and made payment, we will deliver it asap. If it has no stock, we may need around 15-20 days for new production. Of course the delivery time is determined
by the order you purchase. We will try our best to produce faster if your schedule is urgent.
Q: Can I negotiate the prices for the machine?
A:Yes, we may consider great discounts for mass buying quantity, the more you buy, the lower our price will be. Please contact with our sales and get the catalogue and quotation for your request .
by the order you purchase. We will try our best to produce faster if your schedule is urgent.
Q: Can I negotiate the prices for the machine?
A:Yes, we may consider great discounts for mass buying quantity, the more you buy, the lower our price will be. Please contact with our sales and get the catalogue and quotation for your request .
Q:What is your price term and payment term?
A: Price term: EXW,FOB,CFR,CIF ect. ,Payment term: T/T or online on Alibaba.
Q:Can you give warranty of your products?
A:14 months warranty for our product, whole life technical support. we have professional business managers who can serve clients in 24 hours.
Q:How to install and operate the machine?
A:Most of the machine are fully assembled in our factory, so just open and remove the package and get power connected. For some machines, the main parts are well assembled, you might need to install some parts which are easy to install and any problem may have can contact with us for more information for installation . About operate the machine, we have operation instructions for you.
Q:How to install and operate the machine?
A:Most of the machine are fully assembled in our factory, so just open and remove the package and get power connected. For some machines, the main parts are well assembled, you might need to install some parts which are easy to install and any problem may have can contact with us for more information for installation . About operate the machine, we have operation instructions for you.
Q:Do you have some tools?
A:Yes, we have many kinds of tools and spare parts.
