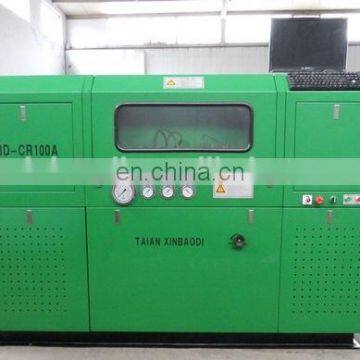

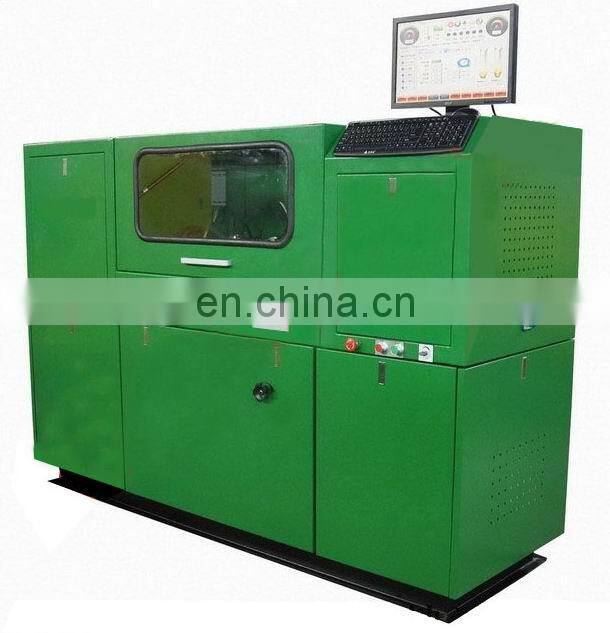

CR100 common rail injector test bench
Description
CR100 COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.
Also it is continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductively of the measured value.
System Application:
The system is suitable for detection of BOSCH, DENSO, DELPHI common rail pump and injectors, such as CP1, CP2, CP3, HP3 series injector pump and the type of Electromagnetic injectors. It also can test 4 common rail injectors in one time.
Technical parameters
Main motor speed | 0-4000 r/min, can be adjustable |
Motor power | 7.5kw, 11kw, 15kw, 18.5kw optional |
Fuel Injector open voltage | Control range: 12v, 80v, 150v Control accuracy: phase adjustment |
Injector opening frequency control | 0-1000HZ Control accuracy: 1HZ
|
Fuel injector hold time | Control range: 0-65535us |
Delivery oil count | Control times: 0-1000times Control accuracy: 1 time |
Fuel pressure control | 0-2000 bar Control accuracy: 1bar |
Electronic power | 3 phase 380V / 3 phase 220V optional |
Main Functions:
1.Detection of the common rail injectors: Clean, pre-injection, main injection, the maximum injection, minimum start)spraying, return oil quantity.
2. Cleaning of nozzles.
3. Detection: Common rail pressure sensor, pressure regulator
4. Testing environment: Oil temperature regulation, counting measure, adjust the common rail pressure, also can adjust the injection pulse width and duty cycle.
5. Support system: BOSCH, DELPHI, DENSO
Contact
TAIAN XINBAODI EXPERIMENTAL EQUIPMENT CO., LTD
Add : NO. 1#-2-402,WEST OF DONGYUE STREET, TAIAN CITY, SHANDONG, CHINA
Mob:0086-13562896072
WeChat: 0086-13562896072
WhatsApp: 0086-13562896072
Skype: testbench201010
E-mail: testbenchina*
Website: https://xinbaodi.en.china.cn
FAQ
Q: How many days to produce this test bench?
A: It need 5-20 days to produce the test bench.
Q:How can I pay for it?
A:We support TT payment, West Union, and L/C etc.
Q:How to sign an order?
A:We can sign an order offline or online on Ali.
Q:How long of warranty?
A:12 months
