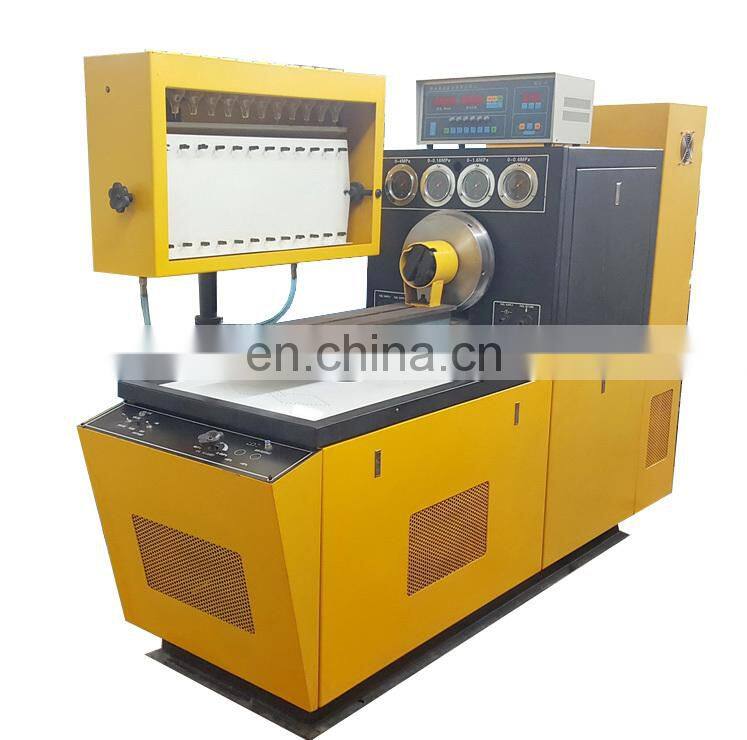

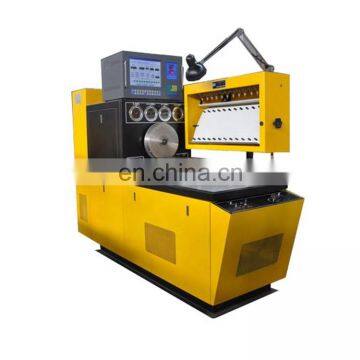

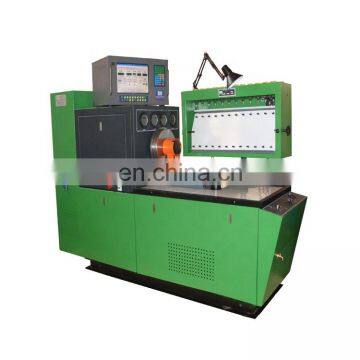

XBD-EMCX PUMP TEST BENCH
I Main Features

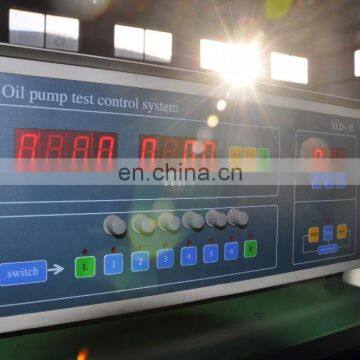

1 The test bench has independent industrial control computer and digital display, which shifts by one key, easily to control, and save room.
2 The host machine has frequency-converting, ranging 4000 r/m.
3 Fuel metering counting. Main principal axis revolution, toothed bar stroke, in advance angle use 4 figure screen display and digital display
4 Fuel temperature, air pressure use 3 figure screen display and digital display
5 Manually speed regulation and multi –gear preset rotate speed.
6 0-0.25Mpa air supply output, inner-set blast pump.
7 DC12V and DC24V stable power output.
8 The host machine is channel steel structure, which is compact and steady.
9 Static painting and beautiful shell.
10 The fuel sump tank can realize right and left rotation, and also up and down regulation
11 The test bench has urgent brake switch.
12 It adopts advanced frequency conversion governor, with high precision rotate speed
13 The test bench has under voltage, over voltage, super heating and over loading protection function.
14 Very low noise.
15 The test bench has high mechanical efficiency and save energy.
II Usage of Diesel Fuel Injection Pump Test Bench

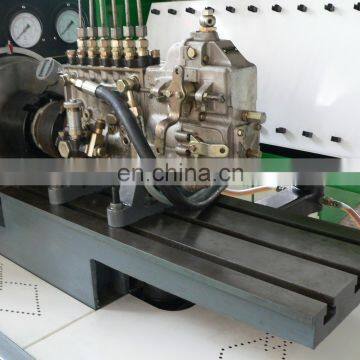

According to different pumps, the test bench use proper attachments, and carry out the following debugging.
1 Test different cylinder fuel supply quantity and uniformity under different revolution.
2 Test fuel supply starting point and interval angle
3 Governor working performance checking and regulation
4 The pressure compensation performance test and checking
5 The distribution pump working performance test and regulations
6 The cold starting device and solenoid valve performance checking
7 The distribution pump fuel return test under different revolution (optional)
8 The distribution pump inner pressure test under different revolution
9 The injection pump seal performance test
10 Test the fuel transfer pump self priming performance
11 Store, modify fule injection pump debugging data and form database
12 Quickly check commons diesel injection pump debugging data.
13 The fuel pump speed governing curve create automatically and CRT end display
14 The built-in high reliability horizontal inflation pump
15 Three “T” type working bench, wide location bracket, with steady running
16 It has attached toolbox, conveniently take special and common tools.
PARAMETERS
Model |
XBD-BD850 |
The principle axis revolution: |
0-4000r/min. the two directions is optional |
test oil injection pump cylinders |
12 |
The principle axis revolution fluctuate |
±1r/min |
The host machine power |
5.5kw ,7.5kw,11kw,15kw,18.5kw,22kw |
The oil supply drive motor power |
1.1kw |
Principle axis center to center spacing working bench height |
125mm |
The oil metering counting |
0-1000 times , one gear per 50 times |
Revolution, counting display |
four digital display |
The pressure, oil temperature display |
three digital display |
The oil temperature automatic control |
40℃±2℃ |
Gas source pressure |
0-0.25Mpa |
The oil tank volume |
≥ 40L |
The oil pump oil supply |
≥ 10L/Min |
The oil filter precision |
5μ |
The glass measuring cylinder volume |
45ml, 150ml |
The oil pressure meter |
1.5 grade : 0-0.6Mpa;0-6Mpa;0-0.16Mpa;0-1.6Mpa |
The standard injector |
ZS12SJI |
Cooling method |
forced wind cooling |
Test bench overall dimension (mm) |
2300×1160×1780 |
Test bench weight |
1200kg |
With introduced technology from Italy and our own advanced technical teams, our products have reliable quality and good prices, and are desired testing equipment for domestic and overseas auto repair industry.
Package
The package is wooden case or plywood case, if you need, we can also pack the products according to your demands.
Other products
We have more model products for testing traditional mechanical pump.
Such as XBD-619D screen display test bench by
https://xinbaodi.en.china.cn/product/225190629-209578007/Diesel_Fuel_Injection_Pump_Test_Bench_XBD_619D.html?spm=a2700.8304367.prewdfa4cf.34.4557ee10VRUXAx
You can also check more information by
https://xinbaodi.en.china.cn/productgrouplist-209578007/Diesel_Fuel_Injection_Pump_Test_Bench_Series.html?spm=nav.5.5b9555bfH8uwzt
Certificate
Contact
TAIAN XINBAODI EXPERIMENTAL EQUIPMENT CO., LTD
Add : NO. 1#-2-402,WEST OF DONGYUE STREET, TAIAN CITY, SHANDONG, CHINA
Mob:0086-13562896072
WeChat: 0086-13562896072
WhatsApp: 0086-13562896072
Skype: testbench201010
E-mail: testbenchina*
Website: https://xinbaodi.en.china.cn
FAQ
Q: How many days to produce this test bench?
A: It need 5-20 days to produce the test bench.
Q:How can I pay for it?
A:We support TT payment, West Union, and L/C etc.
Q:How to sign an order?
A:We can sign an order offline or online on Ali.
Q:How long of warranty?
A:12 months
