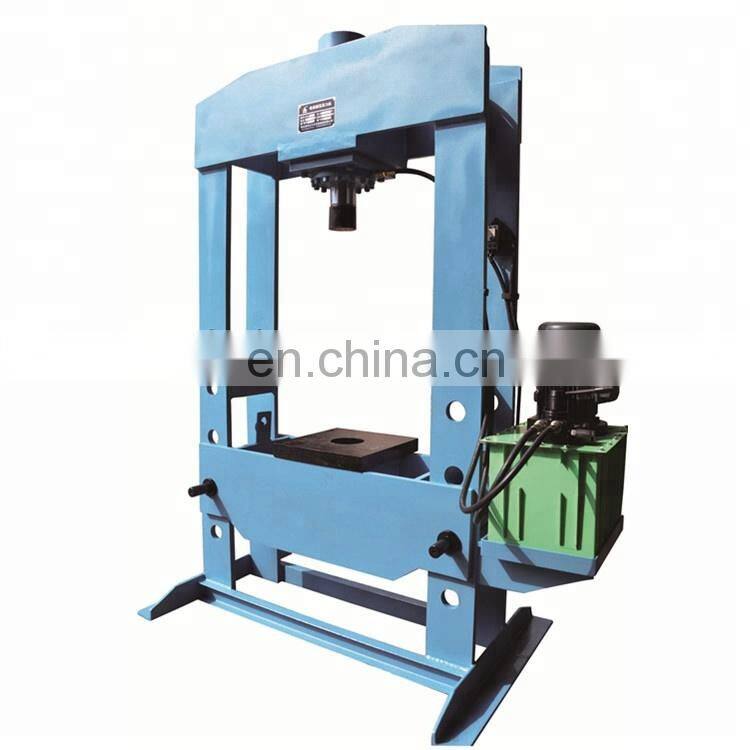

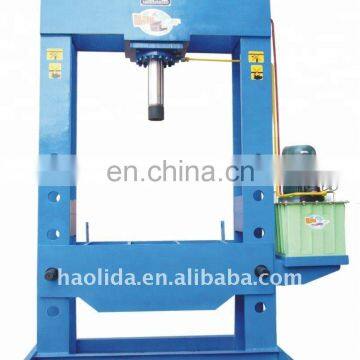

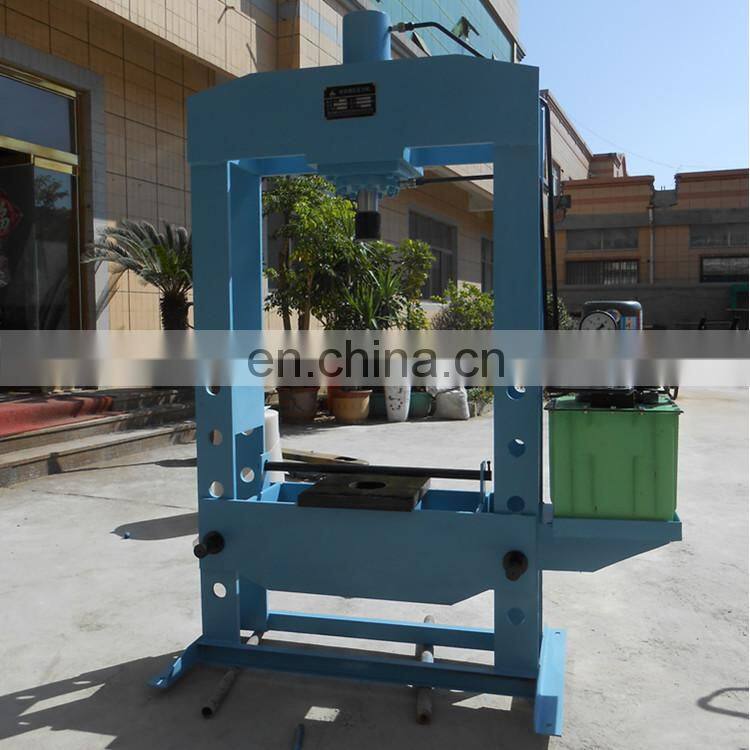

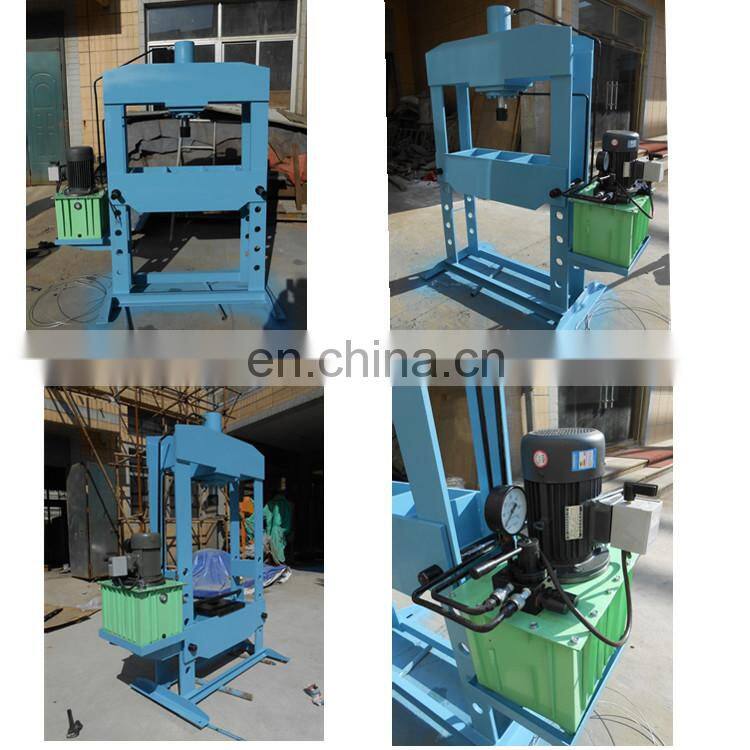

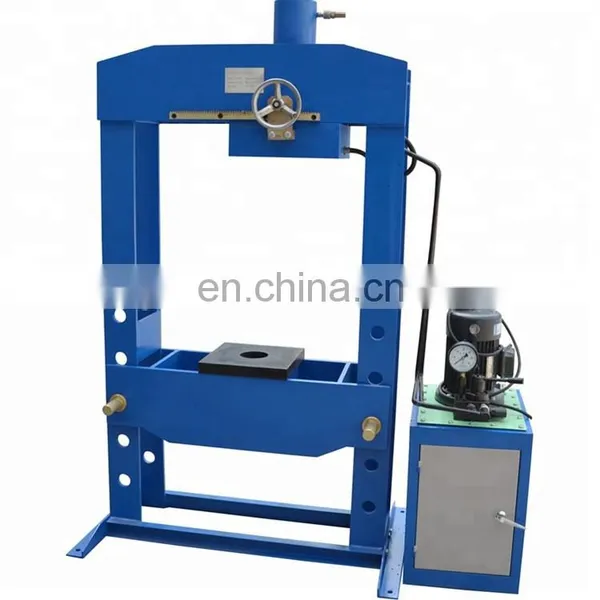

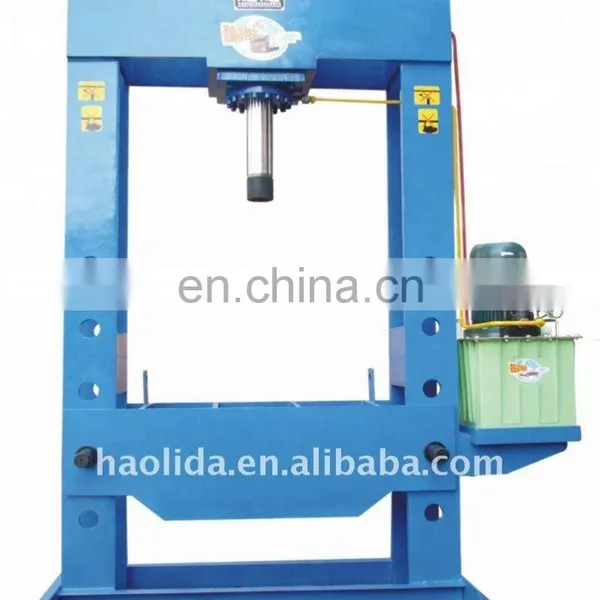

50T Electrical Hydraulic Press Machine
US$ 800 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Haolida
Place of Origin:
Shandong, China
Model Number:
DYYL-50
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Hydraulic Press Machine 50T 100T 200TUS$ 2,000 - 2,000MOQ: 1 Set -
Electric Hydraulic Press MachineUS$ 1,000 - 5,000MOQ: 1 Set
-
50T 100T 200T Electrical Press MachineUS$ 2,000 - 3,000MOQ: 1 Set
-
Electric Hydraulic Press Machine 100TUS$ 1,000 - 8,000MOQ: 1 Set
-
Electric Press MachineUS$ 1,500 - 5,000MOQ: 1 Set
Brand Name
Haolida
Place of Origin
Shandong, China
Model Number
DYYL-50
DYYL-100 50T/ 100T/300T Model Electric Hydraulic Press Machine
1.Function Introduction
- After absorbing advantages of similar products from home and abroad on the basis of keeping improving, electric oil press is upgraded product which adopts door type steel structure and one piston and double oil cylinders.
- High-low pressure pump with parallel connection, high-low pressure is available when it is low pressure in order to enhance the speed. Only high pressure pump can provide oil with low flux when it is high pressure, it is newly developed ultra high pressure piston pump of our company. Manual direction changing to control stroke of piston rod, hydraulic pressure can drive workbench to lift.
- It has elegant appearance, easy and safe operation, stable performance and reliable performance.
-
Fit for dismantling, installing, moulding, straightening, drawing and moulding for machinery industry, as well as once cold riveting and moulding of pot-angle tooth, thus it is necessary press for auto repair industry in modern society.
2. Technical Parameter
Type |
DYYL-40 |
DYYL-50 |
DYYL-65 |
DYYL-100 |
DYYL-150 |
DYYL-200 |
Maximum working pressure KN |
400 |
500 |
650 |
1000 |
1500 |
2000 |
Cylinder stroke work mm |
300 |
300 |
350 |
350 |
350 |
350 |
Motor Power KW |
1.1 |
1.5 |
1.5 |
1.5 |
2.2 |
2.2 |
Maximum working height mm |
850 |
900 |
950 |
1000 |
1000 |
1020 |
Maximum working width mm |
750 |
750 |
800 |
850 |
850 |
890 |
