Brake Shoe Riveting and Grinding Machine
- Qingdao/Shanghai/Guangzhou
- T/T Credit Card
You May Like
Product Details
| Brand Name | Haolida | Place of Origin | Shandong, China | |
| Model Number | ZM-280II |
Product Description

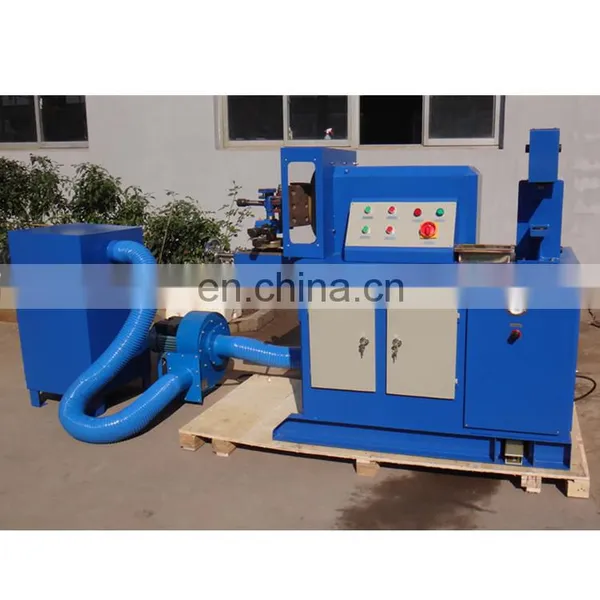

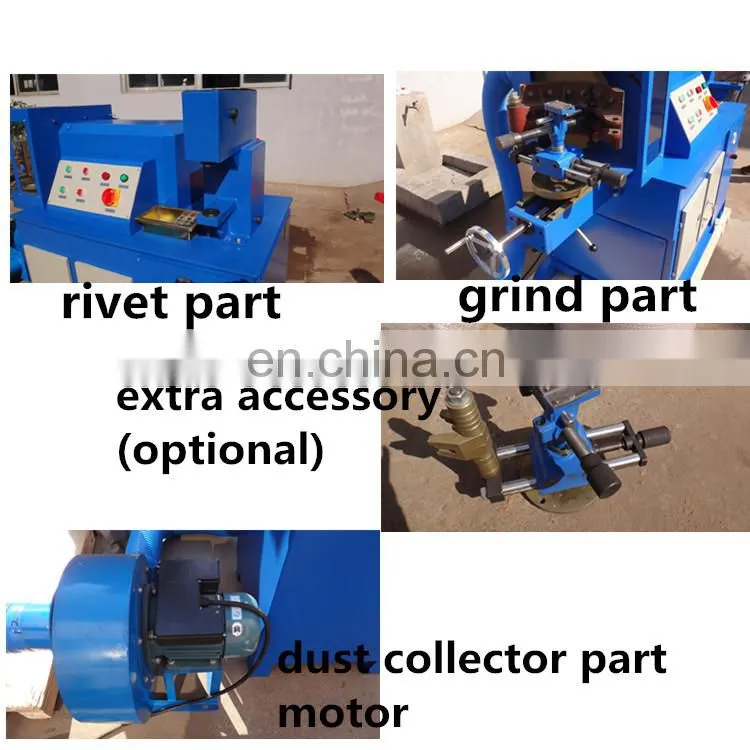

ZM-280II Model Brake shoe rivet and grindmachine
General introduction
It is used for riveting rivets of all kinds of brake shoesbrake discbrake drumbrake lining brake pad and other auto parts.
It can grind brake shoes to proper size.
Advantages:
1. It uses air source as power.
2. It is suitable for heavy duty truck brake lingings,etc.
3. Pressure can be adjusted according to size and material of the rivets.
4. Pedal room is big.
5. It can be matched with dust collecting system, to collect dust, it is environment friendly.
6. Good discount based on order quantity
Technical parameter:
Model no | ZM-280II |
Material | Metal plate |
Painting | High quality paint |
Color | Blue&black |
Max rivet force | 60KN(6T) |
Suitable rivet diameter | 3-10mm |
Power | 1.5KW |
RPM of grinding wheel spindle | 1500r/min |
Max grinding width | 280mm |
Accessories: | |
Riveters: 6pcs, used for working on Φ3, Φ4,Φ5,Φ6,Φ8,Φ10 rivets Puncher: 2pcs, used to remove old rivets 3mm-10mm | |
Others you may want to know: | |
MOQ | 1set |
Warranty period | 12 months |
Payment term | T/T 100% in advance |
Delivery time | 10days after receiving downpayment |
HS code | 8463900090 |
Packing sizes | Export plywood case 1300*780*146mm=1.48CBM N.W: 90kgs G.W: 120kgs |
Some similar products
Why Choose us:
1. 32 years’ design,development and produce experience
2. Professional R&D team
3. Strict QC
4. A good pre-sale and after-sale service
5. Can design and make according to customer’s requests
