Macadamia nut dryer/Pine Nut Roasting Machine Introduction

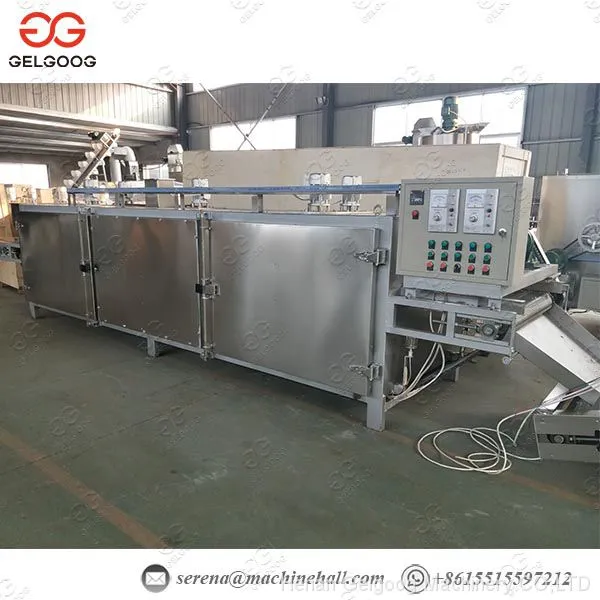

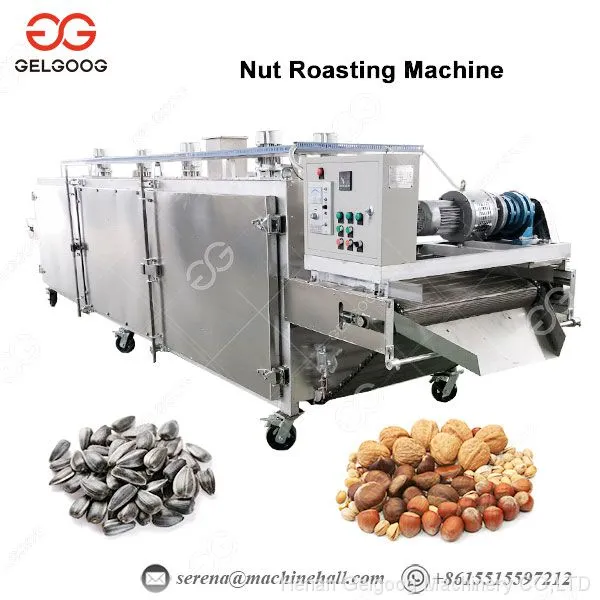

The mesh belt roasting machine is composed of a frame, a conveyor mesh belt, a heating device and a thermal cycle device. The heating device and the thermal circulation device make uniform circulating hot air in the oven.
Features
1. Use independent temperature zones to achieve efficient heat treatment processes & maximize heat efficiency.
2. Precise control gas flow, roasting temperature and humidity to improve or maintain material properties.
3. PLC programmed controller, man - machine conversation operation simpleness and convenience.
4. International famous brand burner, electronic control components is used on oven operation which can accurately control the flow of natural gas, temperature, equipment always keeps in optimized energy-saving operation.
Parameter
Model |
Power(kw) |
Capacity |
Dimension |
Weight |
Gas Heating |
|
GG-HLG6 GG-HLE6 |
Motor:2.6KW Electric Heating:22-36KW |
100-150KG/H |
6000*1500*1450 |
1500 |
2-4kg |
|
GG-HLG8 GG-HLE8 |
Motor:2.97KW Electric Heating:33-48KW |
150-200KG/H |
8000*1500*1450 |
1700 |
3-5kg |
|
GG-HLG11 GG-HLE11 |
Motor:4.08KW Electric Heating:48-70KW |
200-300KG/H |
11000*1500*1450 |
2000 |
6-8kg |
Structure
It is composed by feeding device, speed regulating motor, drive mechanism, circulating fan, electric cabinet and other parts. Control blowing rate and set the temperature of the material being heated by regulating running speed to ensure best roasting effect.
Application
This machine is mainly used to roast the peanut, soybean, nuts and other grain. The advantage of this machine is automatic, and the temperature also can be controlled automatically. Heating method can be electric heating, gas hearing and multifunctional heating method.
Working Principle:
It is a kind of batch, continuous production. Its main principle is to put the material evenly spread in net, net belt with 12-60 steel mesh belt, reciprocate by dragging gear in dryer, hot air between the material flows and water vapor from moisture discharge hole, so as to achieve the purpose of drying.The cabinet length is made up by the standard section, in order to save space.
Characteristic
1. Roasted products are heated evenly, inside and outside the temperature difference is small, no deformation, no discoloration;
2. Roasting speed frequency control, high efficiency; can be double temperature control heating, energy waste less, save power;
3. Small size, space-saving, provincial cost;
4. Can be used with the production line connection, while one side feeding, the other side discharge the material. Synchronous control.
5. Temperature can be setting.
6. Forced circulation air device
7. Product pre-standing time is short, less time;
8. The use of stepless temperature control system, product quality is stable and reliable, and many other advantages
9. Widely used in food, electronics, chemical and other industries. Such as peanuts, cashews, walnuts, pistachios, almonds, beans and other granular nuts materials
