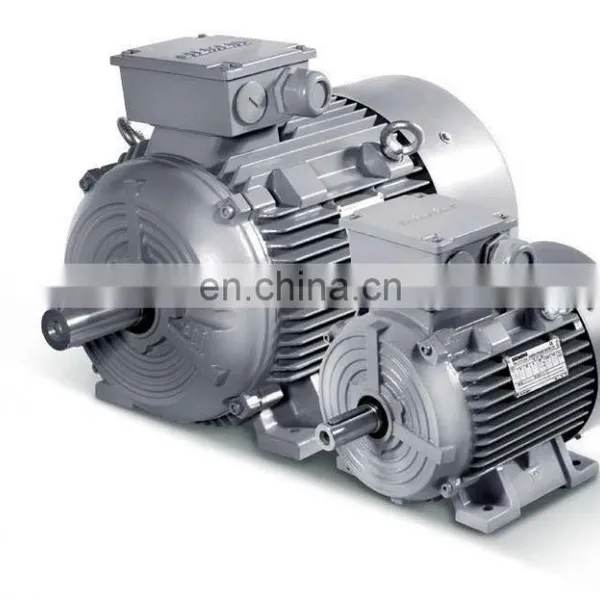

SIEMENS 1LE0003 4kw 2p electric Motor
- 1000 Piece / Pieces per Month
- T/T Credit Card
- SIEMENS 1LE0003 11kw 15kw 2p electric Motor
- SIEMENS 1LE0003 18.5kw 2p electric Motor
- SIEMENS 1LE0003 22kw 2p electric Motor
- ABB 37kw low voltage general performance ac induction motor M2BAX series
- WEG W21 series IE2 high efficiency 22kw 3 phase ac induction motor
- SIEMENS brand three phase AC electric motors 18.5kw
Product Details
Brand Name: | SIEMENS | Place of Origin: | Jiangsu, China | Model Number: | 1LE0003 |
Product Description

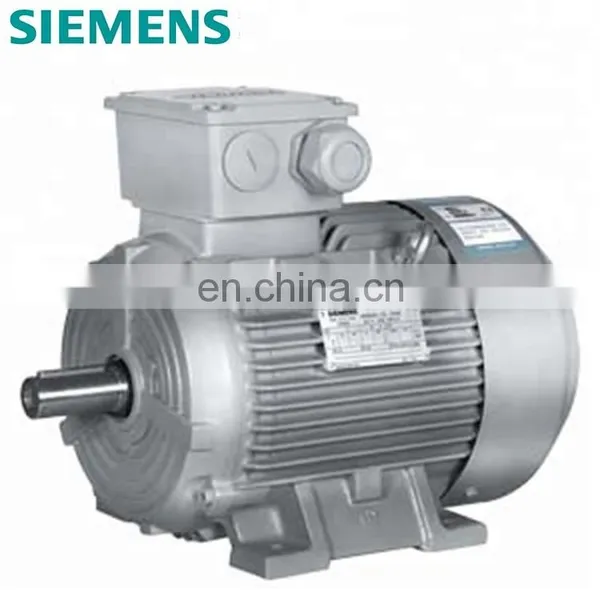

Siemens 1LE0 SERIES
SIMOTICS 1LE0 series of 3 phase asynchronous motors is Totally Enclosed Fan Cooled (TEFC) with IP55 environmental protection, and
applicable for general purpose use. These motors are designed and manufactured in accordance with ISO, IEC standards, GB standards.
The 1LE0 series motor is designed for constant or adjustable speed with continuous duty operation (S1) over a speed range.
FEATURES OF SIEMENS 1LE0 SERIES
■ Standard color: stone grey (RAL 7030)
■ Rated power output: 0.55kW~315kW at 50Hz.
■ Available in 2, 4, 6 pole motor (0.75kW and up) with efficiency grade 3 or 2. according to GB18613-2012 and efficiency class IE2
or IE3 (50Hz) according to IEC 60034-30.
■ Optimized compact style construction.
■ Standard mounting construction according to IEC 60034-7: IM B3, IM B5, IM B35 and etc.
■ All motors are designed to IP55 degree of protection (IEC 60034-5) .
■ Re-greasing devices for FS1) 280 ~ 355 as standard, and for FS100 ~ 250 as option.
■ Reinforced bearings for increased cantilever forces for FS100 ~ 355 as option.
■ Winding protections with PTC, PT100 and KTY84-130 as option.
Frame Size | Order No. | Rated Output | Rated Speed |
112M | 1LE0003-1BA23-3AA4 | 4kw | 2930 |
112M | 1LE0003-1BA23-3FA4 | 4kw | 2930 |
Rated Output
Voltage and Frequency
Standard 60034-1 | Category A | Category B | ||
Voltage deviation | ±5% | ±10% | ||
Frequency deviation | ±2% | +3% / -5%% | ||
According to the standard, longer operation is not recommended for Category B. |
Motor order code | Option Code 1) | Description | Application Scope | |||
Voltages and frequency | ||||||
1LE0□0□-□□□□2-1□□□ | - | 220VD / 380VY 50 Hz(0.55 kW ~ 3 kW 2)) | FS80 ~ 355 | |||
1LE0□0□-□□□□3-3□□□ | - | 380VD / 660VY 50 Hz(4 kW ~ 315 kW 2) ) | FS80 ~ 355 | |||
1LE0□0□-□□□□2-2□□□ | - | 230VD / 400VY 50 Hz | FS80 ~ 355 | |||
1LE0□0□-□□□□3-4□□□ | - | 400VD / 690VY 50 Hz | FS80 ~ 355 | |||
1LE0□0□-□□□□2-3□□□ | - | 240VD / 415VY 50 Hz | FS80 ~ 355 | |||
1LE0□0□-□□□□0-4□□□ | - | 400VD 50 Hz | FS80 ~ 355 | |||
1LE0□0□-□□□□3-5□□□ | - | 415VD 50 Hz | FS80 ~ 355 | |||
1LE0□0□-□□□□9-0□□□-Z | M1A | 220VD / 380VY 60 Hz(60 Hz output)60 Hz | FS80 ~ 355 | |||
1LE0□0□-□□□□9-0□□□-Z | M1B | 380VD / 660VY 60 Hz(60 Hz output)60 Hz | FS80 ~ 355 | |||
1LE0□0□-□□□□9-0□□□-Z | M1C | 440VY 60Hz(60Hz output) | FS80 ~ 355 | |||
1LE0□0□-□□□□9-0□□□-Z | M1D | 440VD 60Hz(60Hz output) | FS80 ~ 355 | |||
1LE0□0□-□□□□9-0□□□-Z | M1E | 460VY 60 Hz(60 Hz output) | FS80 ~ 355 | |||
1LE0□0□-□□□□9-0□□□-Z | M1F | 460VD 60 Hz(60 Hz output) | FS80 ~ 355 | |||
1LE0□0□-□□□□9-0□□□-Z | M2A | 220VD/380VY 60Hz (50Hz output ) | FS80 ~ 355 | |||
1LE0□0□-□□□□9-0□□□-Z | M2B | 380VD/660VY 60Hz (50Hz output ) | FS80 ~ 355 | |||
1LE0□0□-□□□□9-0□□□-Z | M2C | 440VY 60Hz(50Hz output ) | FS80 ~ 355 | |||
1LE0□0□-□□□□9-0□□□-Z | M2D | 440VD 60Hz(50Hz output ) | FS80 ~ 355 | |||
1LE0□0□-□□□□9-0□□□-Z | M2E | 460VY 60Hz(50Hz output ) | FS80 ~ 355 | |||
1LE0□0□-□□□□9-0□□□-Z | M2F | 460VD 60Hz(50Hz output ) | FS80 ~ 355 | |||
1LE0□0□-□□□□9-0□□□-Z | X04 | 480VY 60Hz(60Hz output) | FS80 ~ 355 | |||
1LE0□0□-□□□□9-0□□□-Z | X20 | 480VD 60Hz(60Hz output) | FS80 ~ 355 | |||
Motor protection | FS80 ~ 355 | |||||
1LE0□0□-□□□□□-□□A□ 2) | - | Without motor protection | FS80 ~ 355 | |||
1LE0□0□-□□□□□-□□B□ | - | Motor protection with PTC thermistors with three embedded temperature sensors for tripping | FS80 ~ 355 | |||
1LE0□0□-□□□□□-□□C□ | - | Motor protection with PTC thermistors with six embedded temperature sensors for alarm & tripping | FS80 ~ 355 | |||
1LE0□0□-□□□□□-□□F□ | - | Motor temperature detection with embedded temperature sensor KTY84-130 | FS100 ~ 355 | |||
1LE0□0□-□□□□□-□□H□ | - | Installation of three PT100 resistance thermometers | FS80 ~ 355 | |||
1LE0□0□-□□□□□-□□J□ | - | Installation of six PT100 resistance thermometers | FS80 ~ 355 | |||
Windings and insulation | ||||||
- | N01 | Temperature class 155 (F), used according to 155 (F), with service factor (SF1.15) | FS80 ~ 355 | |||
- | N10 | Temperature class 180(H) | FS80 ~ 355 | |||
- | Q04 | Anti-condensation heater for 220 VAC (spaces heater) | FS80 ~ 355 | |||
Motor connection box | ||||||
1LE0□0□-□□□□□-□□□4 2) | - | Connection box on top cable entry on right (view from DE) (Standard version) | FS80 ~ 355 | |||
1LE0□0□-□□□□□-□□□5 | - | Connection box on RHS (view from DE) | FS80 ~ 355 | |||
1LE0□0□-□□□□□-□□□6 | - | Connection box on LHS (view from DE) | FS80 ~ 355 | |||
- | R10 3) | Rotation of the connection box through 90º, entry from DE | FS80 ~ 355 | |||
- | R11 | Rotation of the connection box through 90º, entry from NDE | FS80 ~ 355 | |||
- | R12 | Rotation of the connection box through 180º | FS80 ~ 355 | |||
- | H08 4) | Connection box on NDE | FS80 ~ 355 | |||
- | L97 | Additional connection box | FS200 ~ 355 | |||
Bearings | ||||||
- | L80 | SKF Bearing | FS80 ~ 355 | |||
- | L22 5) | Bearing design for increased cantilever forces | FS100 ~ 355 | |||
- | L20 | Located bearing at DE | FS80 ~ 160 | |||
- | L23 6) | Regreasing device | FS100 ~ 250 | |||
- | Q5A | Installation of 2PT100 screw-in resistance thermometers for bearing | FS180 ~ 355 | |||
- | L27 7) | Insulated bearing | FS250 ~ 355 | |||
- | Q01 | Measuring nipple for SPM shock pulse at DE measurement for bearing inspection | FS100 ~ 355 | |||
Balance and vibration quantity | ||||||
- | L00 | Vibration quantity level B | FS80 ~ 355 | |||
Mechanical design and degrees of protection | ||||||
- | L05 8) 9) | Second standard shaft extension | FS80 ~ 355 | |||
- | H00 10) | Motor with protective cover | FS80 ~ 355 | |||
- | H03 11) | Condensation drainage holes | FS80 ~ 355 | |||
- | H04 | External earthing | FS80 ~ 280 | |||
- | H22 | IP56 degree of protection (non-heavy-sea) | FS80 ~ 355 | |||
Modular technology | ||||||
- | F70 12) | Mounting of separately driven fan | FS80 ~ 355 | |||
- | F90 13) | Fan motor (Without fan and fan cover, NDE closed) | FS80 ~ 355 | |||
- | F76 | Metal fan | FS80 ~ 355 | |||
- | X05 | Prepared for of LL861900220 encoder | FS112 ~ 355 | |||
- | G04 | Mounting of LL861900220 rotary pulse encoder | FS112 ~ 355 | |||
- | X50 14) | Mounting of Omron rotary pulse encoder (E6B2-C) and separately driven fan | FS80 ~ 355 | |||
- | W74 15) | Mounting of Omron encoder (E6B2-CWZ1X) and separated driven fan | FS80 ~ 355 | |||
Rating plate and test certificates | ||||||
- | B02 | Acceptance test certificate 3.1 in accordance with EN 10204 | FS80 ~ 355 | |||
Paint finish | ||||||
- | S01 | Unpainted, only primed | FS80 ~ 355 | |||
- | S80 | Standard finish in RAL 7032 | FS80 ~ 355 | |||
- | S81 | Standard finish in RAL 9006 | FS80 ~ 355 | |||
- | W88 16) | Design for TH, W, F1, WF1 and Sea air resistant | FS80 ~ 355 | |||
Coolant temperature | ||||||
- | D0317) | Coolant temperature -40 ºC to + 40 ºC | FS80 ~ 355 |
2) Without additional charge
3) For FS80 ~ 112 motor, R10 only in combination with Option code H08 (Connection box on NDE) possible.
4) Cable entry on connection box towards the non-drive end.
5) For vertical mounting of FS250~FS355 motor, please specially consult with Siemens.
6) FS280, FS315 and FS355 motor with the regrease device as standard.
7) For horizontal mounting motor, insulated bearing located at DE; For vertical mounting motor, insulated bearing located at NDE.
8) Not possible in combination with canopy or separately driven fan (Order code: F70).
9) Second standard shaft extension on NDE has allowed output from the next smaller frame size.
10) Only applicable for the construction type IM V5, IM V1, IM V15 and IM V18. Not possible in combination with Option code L05.
11) Applicable to motor of horizontal mounting. If vertical mounting motor required to be with condensation drainage holes, please inquiry Siemens specially. If condensation drainage holes are required, it is necessary to order the motors in their respective type of construction.
12) When the separately driven fan is mounted, the length of the motor increase by ∆L. For an explanation of the additional dimension and technical data see from page 8.
13) Without fan and fan cover, the length of the motor is decrease by ∆l. By using the power output of rating plate, the motor must have external cooling by air flow. The correct motor cooling is in responsibility of customer. Missing or wrong cooling reduce the life time or damaged the motor.
14) When SINAMICS inverter is connected with Omron encoder (E6B2- CWZ6C), additional configuration on inverter is needed. For detailed information, please contact with Siemens hotline.
15) Omron encoder (E6B2-CWZ1X) can be directly connected with SINAMICS inverter.
16) Recommended for indoor or outdoor installations exposed to direct weather conditions. Industrial environment with moderate SO2, inshore maritime climate but not offshore.
17) Not applicable for 1LE0 Al motors
Packaging | ||
Size | 445 (L) * 276 (W) * 350 (D)mm | |
Weight | 50kg | |
Packaging Details | The normal package is wooden box(Size: 450*300*400). If export to european countries,the wooden box will be fumigated.If container is too tigher, we will use pe film for packing or pack it according to customers special request. |
