SIEMENS 1LE0003 11kw 15kw 2p Electric Motor

SIEMENS 1LE0003 11kw 15kw 2p Electric Motor thumbnail-1
SIEMENS 1LE0003 11kw 15kw 2p Electric Motor thumbnail-2
SIEMENS 1LE0003 11kw 15kw 2p Electric Motor thumbnail-3
SIEMENS 1LE0003 11kw 15kw 2p Electric Motor thumbnail-4
SIEMENS 1LE0003 11kw 15kw 2p Electric Motor thumbnail-5
SIEMENS 1LE0003 11kw 15kw 2p Electric Motor thumbnail-6
SIEMENS 1LE0003 11kw 15kw 2p Electric Motor photo-1
SIEMENS 1LE0003 11kw 15kw 2p Electric Motor photo-2

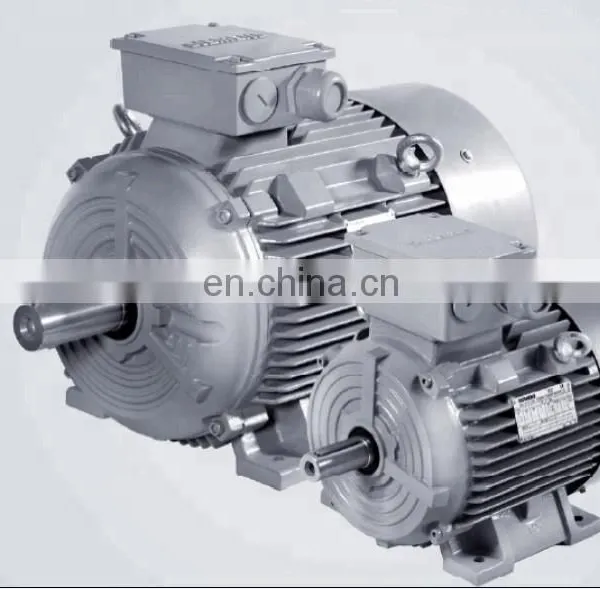

SIEMENS 1LE0003 11kw 15kw 2p Electric Motor photo-3
SIEMENS 1LE0003 11kw 15kw 2p Electric Motor photo-4
SIEMENS 1LE0003 11kw 15kw 2p Electric Motor photo-5
SIEMENS 1LE0003 11kw 15kw 2p Electric Motor photo-6
US$ 627 - 691 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SIEMENS
Place of Origin:
Jiangsu, China
Model Number:
1LE0003
Contact Supplier Request Quote Chat Now
Changzhou Haizhi Automatic Transmission Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SIEMENS
Place of Origin Jiangsu, China
Model Number 1LE0003
Product Description

Siemens 1LE0 SERIES

SIMOTICS 1LE0 series of 3 phase asynchronous motors is Totally Enclosed Fan Cooled (TEFC) with IP55 environmental protection, and
applicable for general purpose use. These motors are designed and manufactured in accordance with ISO, IEC standards, GB standards.
The 1LE0 series motor is designed for constant or adjustable speed with continuous duty operation (S1) over a speed range.

FEATURES OF SIEMENS 1LE0 SERIES

■ Frame material: grey cast iron or aluminum.
■ Standard color: stone grey (RAL 7030)
■ Rated power output: 0.55kW~315kW at 50Hz.
■ Available in 2, 4, 6 pole motor (0.75kW and up) with efficiency grade 3 or 2. according to GB18613-2012 and efficiency class IE2
or IE3 (50Hz) according to IEC 60034-30.
■ Optimized compact style construction.
■ Standard mounting construction according to IEC 60034-7: IM B3, IM B5, IM B35 and etc.
■ All motors are designed to IP55 degree of protection (IEC 60034-5) .
■ Re-greasing devices for FS1) 280 ~ 355 as standard, and for FS100 ~ 250 as option.
■ Reinforced bearings for increased cantilever forces for FS100 ~ 355 as option.
■ Winding protections with PTC, PT100 and KTY84-130 as option.
■Terminal box on top, and cable entry on right side (viewed from driven end). Varible location of connection boxes and cable entries as option.
■Insulation system is designed for temperature class 155 (F). At rated output with line-fed operation, the motors can be used in temperature class 130(B).
■Self ventilated motors with radial-flow fans (cooling method IC411 according to IEC 60034-6) as standard, forced air cool with external separately driven fans as option.
■FS 80~90 motor donot have eyebolt; FS 100~315 all motors have 2 eyebolts, and FS 355 motor have one eyebolt for transport.
Product Show
Product Specificate
Frame Size
Order No.
Rated Output
Rated Speed
160M
1LE0003-1DA23-3AA4
11kw
2935
160M
1LE0003-1DA23-3FA4
11kw
2935
160M
1LE0003-1DA33-3AA4
15kw
2935
160M
1LE0003-1DA33-3FA4
15kw
2935

Rated Output

1LE0 motors rated output powers means that the motor runs under continuous duty S1 (IEC 60034-1) operation when operated at ambient temperature from -20 ℃ to 40 ℃ and at altitudes of up to 1000 m over sea.

Voltage and Frequency

IEC 60034-1 differentiates between Category A (combination of voltage deviation ±5% and frequency deviation ±2%) and Category B (combination of voltage deviation ±10% and frenquency deviation +3% / -5%) for voltage and frequency fluctuations. The motors can supply their rated torque in both Category A and B. In Category A, the temperature rise is approximately 10 K higher than during normal operation.
Standard 60034-1
Category A
Category B
Voltage deviation
±5%
±10%
Frequency deviation
±2%
+3% / -5%%
According to the standard, longer operation is not recommended for Category B.
Options
Motor order code
Option Code 1)
Description
Application Scope
Voltages and frequency
1LE0□0□-□□□□2-1□□□
－
220VD / 380VY 50 Hz（0.55 kW ~ 3 kW 2））
FS80 ~ 355
1LE0□0□-□□□□3-3□□□
-
380VD / 660VY 50 Hz（4 kW ~ 315 kW 2） ）
FS80 ~ 355
1LE0□0□-□□□□2-2□□□
-
230VD / 400VY 50 Hz
FS80 ~ 355
1LE0□0□-□□□□3-4□□□
-
400VD / 690VY 50 Hz
FS80 ~ 355
1LE0□0□-□□□□2-3□□□
-
240VD / 415VY 50 Hz
FS80 ~ 355
1LE0□0□-□□□□0-4□□□
-
400VD 50 Hz
FS80 ~ 355
1LE0□0□-□□□□3-5□□□
-
415VD 50 Hz
FS80 ~ 355
1LE0□0□-□□□□9-0□□□-Z
M1A
220VD / 380VY 60 Hz（60 Hz output）60 Hz
FS80 ~ 355
1LE0□0□-□□□□9-0□□□-Z
M1B
380VD / 660VY 60 Hz（60 Hz output）60 Hz
FS80 ~ 355
1LE0□0□-□□□□9-0□□□-Z
M1C
440VY 60Hz（60Hz output）
FS80 ~ 355
1LE0□0□-□□□□9-0□□□-Z
M1D
440VD 60Hz（60Hz output）
FS80 ~ 355
1LE0□0□-□□□□9-0□□□-Z
M1E
460VY 60 Hz（60 Hz output）
FS80 ~ 355
1LE0□0□-□□□□9-0□□□-Z
M1F
460VD 60 Hz（60 Hz output）
FS80 ~ 355
1LE0□0□-□□□□9-0□□□-Z
M2A
220VD/380VY 60Hz （50Hz output )
FS80 ~ 355
1LE0□0□-□□□□9-0□□□-Z
M2B
380VD/660VY 60Hz （50Hz output )
FS80 ~ 355
1LE0□0□-□□□□9-0□□□-Z
M2C
440VY 60Hz（50Hz output )
FS80 ~ 355
1LE0□0□-□□□□9-0□□□-Z
M2D
440VD 60Hz（50Hz output )
FS80 ~ 355
1LE0□0□-□□□□9-0□□□-Z
M2E
460VY 60Hz（50Hz output )
FS80 ~ 355
1LE0□0□-□□□□9-0□□□-Z
M2F
460VD 60Hz（50Hz output )
FS80 ~ 355
1LE0□0□-□□□□9-0□□□-Z
X04
480VY 60Hz（60Hz output）
FS80 ~ 355
1LE0□0□-□□□□9-0□□□-Z
X20
480VD 60Hz（60Hz output）
FS80 ~ 355
Motor protection
FS80 ~ 355
1LE0□0□-□□□□□-□□A□ 2)
-
Without motor protection
FS80 ~ 355
1LE0□0□-□□□□□-□□B□
-
Motor protection with PTC thermistors with three embedded temperature sensors for tripping
FS80 ~ 355
1LE0□0□-□□□□□-□□C□
-
Motor protection with PTC thermistors with six embedded temperature sensors for alarm & tripping
FS80 ~ 355
1LE0□0□-□□□□□-□□F□
-
Motor temperature detection with embedded temperature sensor KTY84-130
FS100 ~ 355
1LE0□0□-□□□□□-□□H□
-
Installation of three PT100 resistance thermometers
FS80 ~ 355
1LE0□0□-□□□□□-□□J□
-
Installation of six PT100 resistance thermometers
FS80 ~ 355
Windings and insulation
-
N01
Temperature class 155 (F), used according to 155 (F), with service factor (SF1.15)
FS80 ~ 355
-
N10
Temperature class 180（H）
FS80 ~ 355
-
Q04
Anti-condensation heater for 220 VAC (spaces heater)
FS80 ~ 355
Motor connection box
1LE0□0□-□□□□□-□□□4 2)
-
Connection box on top
cable entry on right (view from DE) (Standard version)
FS80 ~ 355
1LE0□0□-□□□□□-□□□5
-
Connection box on RHS (view from DE)
FS80 ~ 355
1LE0□0□-□□□□□-□□□6
-
Connection box on LHS (view from DE)
FS80 ~ 355
-
R10 3)
Rotation of the connection box through 90º, entry from DE
FS80 ~ 355
-
R11
Rotation of the connection box through 90º, entry from NDE
FS80 ~ 355
-
R12
Rotation of the connection box through 180º
FS80 ~ 355
-
H08 4)
Connection box on NDE
FS80 ~ 355
-
L97
Additional connection box
FS200 ~ 355
Bearings
-
L80
SKF Bearing
FS80 ~ 355
-
L22 5)
Bearing design for increased cantilever forces
FS100 ~ 355
-
L20
Located bearing at DE
FS80 ~ 160
-
L23 6)
Regreasing device
FS100 ~ 250
-
Q5A
Installation of 2PT100 screw-in resistance thermometers for
bearing
FS180 ~ 355
-
L27 7)
Insulated bearing
FS250 ~ 355
-
Q01
Measuring nipple for SPM shock pulse at DE measurement for bearing inspection
FS100 ~ 355
Balance and vibration quantity
-
L00
Vibration quantity level B
FS80 ~ 355
Mechanical design and degrees of protection
-
L05 8) 9)
Second standard shaft extension
FS80 ~ 355
-
H00 10)
Motor with protective cover
FS80 ~ 355
-
H03 11)
Condensation drainage holes
FS80 ~ 355
-
H04
External earthing
FS80 ~ 280
-
H22
IP56 degree of protection (non-heavy-sea)
FS80 ~ 355
Modular technology
-
F70 12)
Mounting of separately driven fan
FS80 ~ 355
-
F90 13)
Fan motor (Without fan and fan cover, NDE closed)
FS80 ~ 355
-
F76
Metal fan
FS80 ~ 355
-
X05
Prepared for of LL861900220 encoder
FS112 ~ 355
-
G04
Mounting of LL861900220 rotary pulse encoder
FS112 ~ 355
-
X50 14)
Mounting of Omron rotary pulse encoder (E6B2-C) and separately driven fan
FS80 ~ 355
-
W74 15)
Mounting of Omron encoder (E6B2-CWZ1X) and separated driven fan
FS80 ~ 355
Rating plate and test certificates
-
B02
Acceptance test certificate 3.1 in accordance with EN 10204
FS80 ~ 355
Paint finish
-
S01
Unpainted, only primed
FS80 ~ 355
-
S80
Standard finish in RAL 7032
FS80 ~ 355
-
S81
Standard finish in RAL 9006
FS80 ~ 355
-
W88 16)
Design for TH, W, F1, WF1 and Sea air resistant
FS80 ~ 355
Coolant temperature
-
D0317）
Coolant temperature -40 ºC to + 40 ºC
FS80 ~ 355
1) Order No. supplement Z with option code when ordering;
2) Without additional charge
3) For FS80 ~ 112 motor, R10 only in combination with Option code H08 (Connection box on NDE) possible.
4) Cable entry on connection box towards the non-drive end.
5) For vertical mounting of FS250~FS355 motor, please specially consult with Siemens.
6) FS280, FS315 and FS355 motor with the regrease device as standard.
7) For horizontal mounting motor, insulated bearing located at DE; For vertical mounting motor, insulated bearing located at NDE.
8) Not possible in combination with canopy or separately driven fan (Order code: F70).
9) Second standard shaft extension on NDE has allowed output from the next smaller frame size.
10) Only applicable for the construction type IM V5, IM V1, IM V15 and IM V18. Not possible in combination with Option code L05.
11) Applicable to motor of horizontal mounting. If vertical mounting motor required to be with condensation drainage holes, please inquiry Siemens specially. If condensation drainage holes are required, it is necessary to order the motors in their respective type of construction.
12) When the separately driven fan is mounted, the length of the motor increase by ∆L. For an explanation of the additional dimension and technical data see from page 8.
13) Without fan and fan cover, the length of the motor is decrease by ∆l. By using the power output of rating plate, the motor must have external cooling by air flow. The correct motor cooling is in responsibility of customer. Missing or wrong cooling reduce the life time or damaged the motor.
14) When SINAMICS inverter is connected with Omron encoder (E6B2- CWZ6C), additional configuration on inverter is needed. For detailed information, please contact with Siemens hotline.
15) Omron encoder (E6B2-CWZ1X) can be directly connected with SINAMICS inverter.
16) Recommended for indoor or outdoor installations exposed to direct weather conditions. Industrial environment with moderate SO2, inshore maritime climate but not offshore.
17) Not applicable for 1LE0 Al motors
Packing & Delivery
Packaging
Size
662 (L) * 364 (W) * 461 (D)mm
Weight
112kg
Packaging Details
The normal package is wooden box(Size: 700*400*500). If export to european countries,the wooden box will be fumigated.If container is too tigher, we will use pe film for packing or pack it according to customers special request.
