Schneider SM6-36-DM1-D Schneider Ring Main Unit Schneider SM6

Schneider SM6-36-DM1-D Schneider Ring Main Unit

SM6 is an essential part of the EcoStruxure Power architecture, it combines with the latest communication and automation devices to act as an IoT connected MV panel.  It integrates seamlessly with other innovative, interoperable products, unlocking new opportunities in power distribution.

Unit defi nitions

Below is the list of SM6 units used in MV/LV transformer substations and industrial distribution substations:

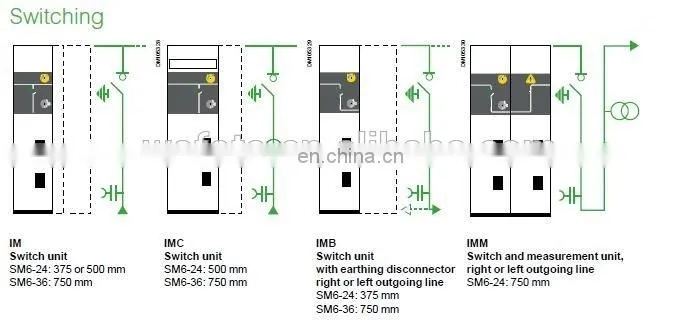

IM, IMC, IMB, IMM switch
PM fused switch
QM, QMC, QMB fuse-switch combination
CVM contactor and contactor with fuses

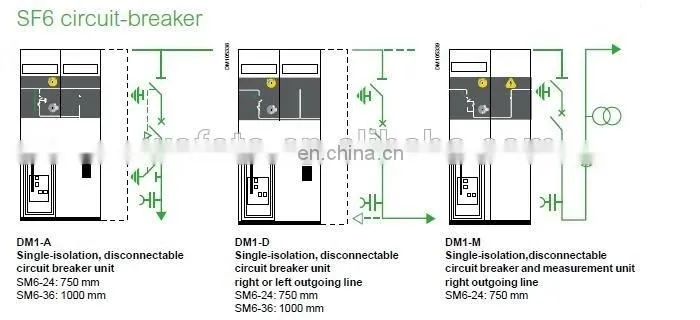

DM1-M, DM1-A, DM1-D, DM1-S single-isolation disconnectable SF6 type circuit breaker
DMV-A, DMV-D, single-isolation vacuum type circuit breaker frontal

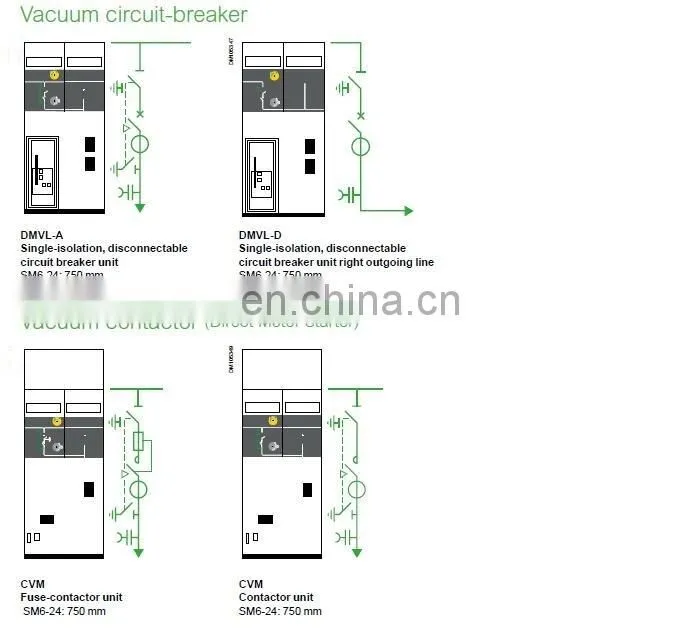

DMVL-A, DMVL-D single-isolation disconnectable vacuum type circuit breaker lateral
DM1-W, DM1-Z withdrawable single-isolation SF6 type circuit breaker for SM6-24
DM2 double-isolation disconnectable SF6 type circuit breaker

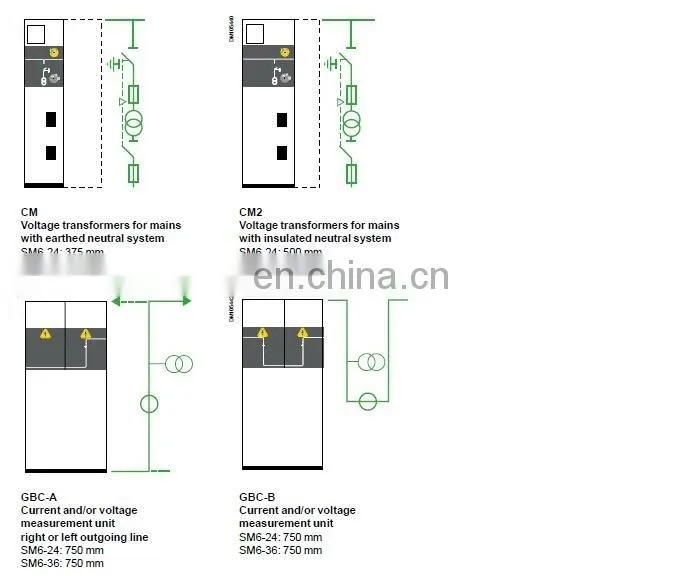

CM, CM2 voltage transformers
GBC-A, GBC-B current and/or voltage measurements

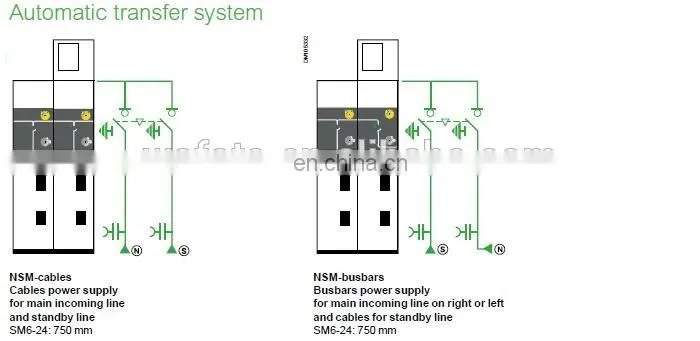

NSM-cables for main incoming and standby
NSM-busbars for main incoming and cables for standby

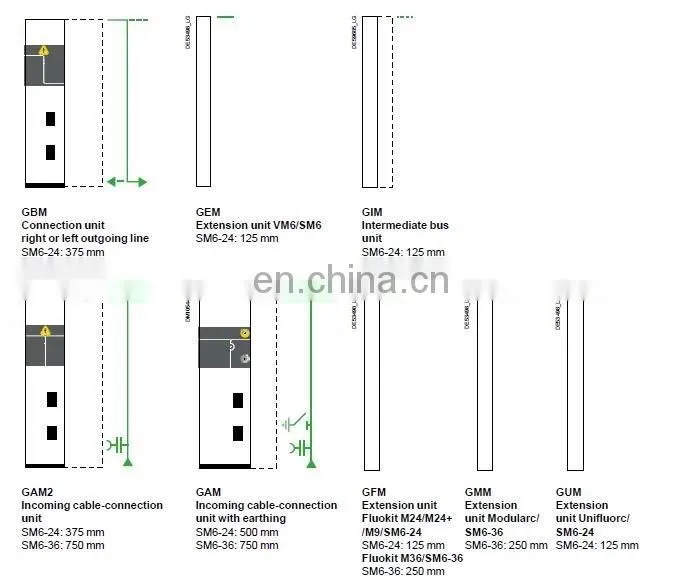

GIM intermediate bus unit
GEM extension unit
GBM connection unit
GAM2, GAM incoming cable connection unit
SM disconnector
TM MV/LV transformer unit for auxiliaries
Other units, consult us
Special function EMB busbar earthing only for SM6-24.

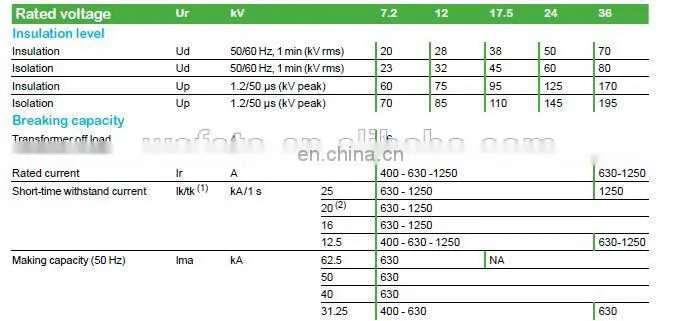

Technical data

Units for switching function
