SIEMENS NXPLUS 24KV SIEMENS Gas Insulated Switchgear SIEMENS GIS

SIEMENS NXPLUS 24KV SIEMENS Gas Insulated Switchgear

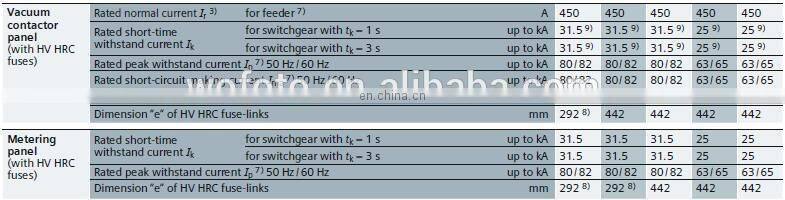

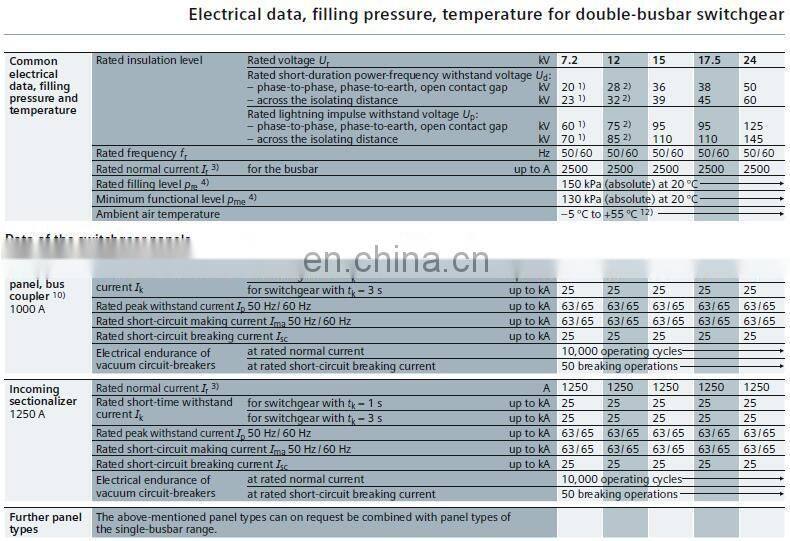

Product Parameters

Technical Characteristic

1.3-pole enclosure of the primary part consisting of a switchgear vessel made of stainless steel

2.Insulating gas SF6

3.Three-position disconnector as busbar disconnector and feeder earthing switch.

4.Make-proof earthing by means of the vacuum circuitbreaker

5.Compact dimensions due to SF6 insulation

6.Hermetically tight, welded switchgear vessel made of stainless steel.

7.1-pole, solid-insulated, screened busbars, plug-in type

8.Cable connection with outside-cone plug-in system, or for connection of solid-insulated bars.

9.Wall-standing or free-standing arrangement

10.Cable connection access from front

11.Option: Cable connection access from rear (only circuit-breaker panel 1250 A)

12.Hinge on the left of right of the low-voltage door

13.Installation and extension of existing switchgear at both ends without gas work and without modifi cation of existing panels.

14.Option: Flexible pressure relief duct systems.

Application

  Fixed-mounted circuit-breaker switchgear NXPLUS C is a factory-assembled, type-tested, metal-enclosed, metal-clad, SF6-insulated switchgear for single-busbar and double-busbar applications for indoor installation.
  It is used in transformer and switching substations, e.g., in:
• Power supply companies
• Power stations
• Cement industry
• Automobile industry
• Iron and steel works
• Rolling mills
• Mining industry
• Textile, paper and food industries
• Chemical industry
• Petroleum industry
• Pipeline installations
• Offshore installations
• Electrochemical plants
• Petrochemical plants
• Shipbuilding industry
• Diesel power plants
• Emergency power supply installations
• Lignite open-cast mines
• Traction power supply systems.

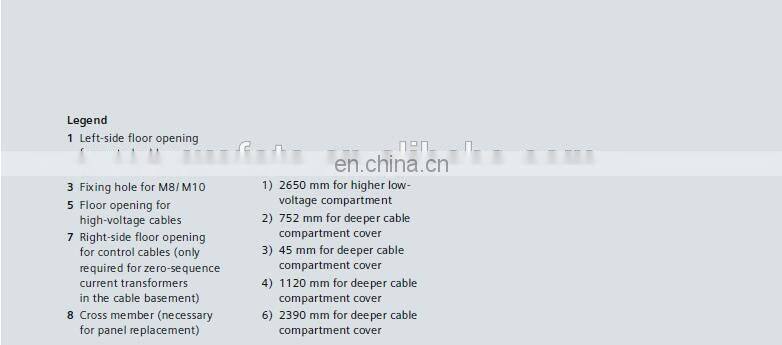

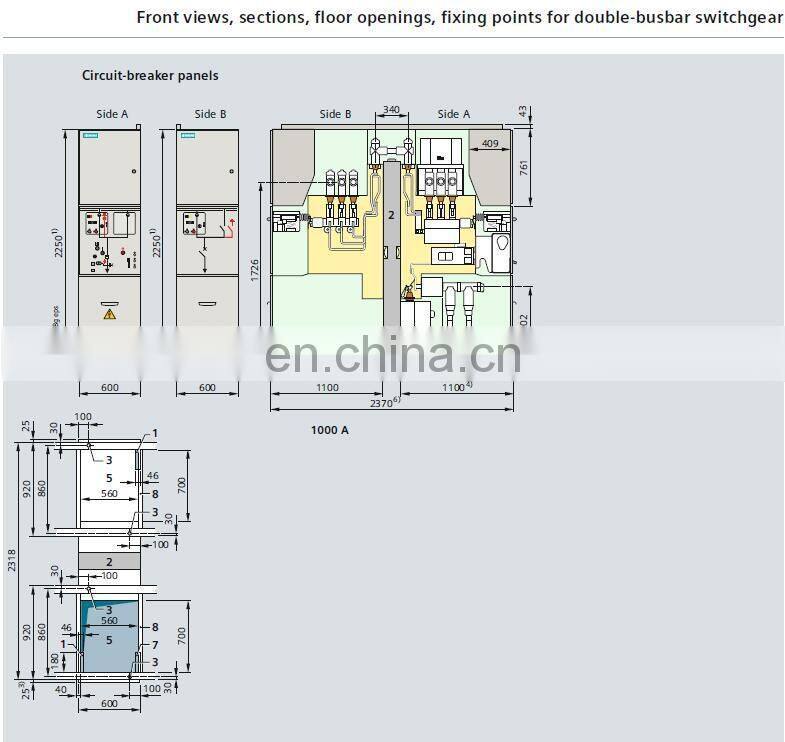

Dimensions

Feature

1) 100% New & Original

2) 2 year warranty

3) Many models in stock

4) Fast shipping

We only sell the 100% original new items!
