VXA17-50-25 for Railway Schneider Vacuum Circuit Breaker
Indoor single / double vacuum circuit breaker - VXA / VXB function
This proven range of indoor vacuum circuit breakers has been specially designed to meet the specific requirements of AC traction power supply systems. It is a highly reliable device with minimum installation work and reduced life-cycle costs.
Developed for switching applications on AC traction power supply systems up to 27.5 kV / 2,500 A / 40 kA / 250 kV BIL.
Frequency 16.7, 25, 50 & 60 Hz.
Can be delivered in single (VXA) or 2-pole (VXB) configurations.
Breakers can be fixed pole-mounted type or mounted on withdrawable truck.
Indoor application
Meets many country specifications, including fast switching
Technical Parameter of vacuum circuit breaker - VXA / VXB
| Model | VXA | VXA | VXB | |
| Poles | 1 | 1 | 2 | |
| Rated Voltage | kV | 17.5/27.5 | 27.5 | 27.5 |
| Rated lightning impulse withstand voltage (BIL) | kV | 200 | 250 | 250 |
| Rated power frequency withstand voltage | kV | 85 | 95 | 95 |
| Rated current, maximum value | A | 2500 | 2000 | 2000 |
| Rated short current (4s), maximum | kA | 40 | 31.5 | 31.5 |
| Rated short-circuit closing current, maximum | kA | 100 | 80 | 80 |
| Rated short circuit breaking current, maximum | kA | 40 | 31.5 | 31.5 |
| Rated frequency | Hz | 16.7/25/56/60 | 16.7/25/50/60 | 16.7/25/50/60 |
| No. of mechanical operations of the operating mechanism | 10000 | 10000 | 10000 | |
| No.of electrical operations at rated current | 10000 | 10000 | 10000 |
VXA-VXB structure diagram
|
|
|
| VXB bipolar fixed type | VXA double break withdrawable type | VXA withdrawable |

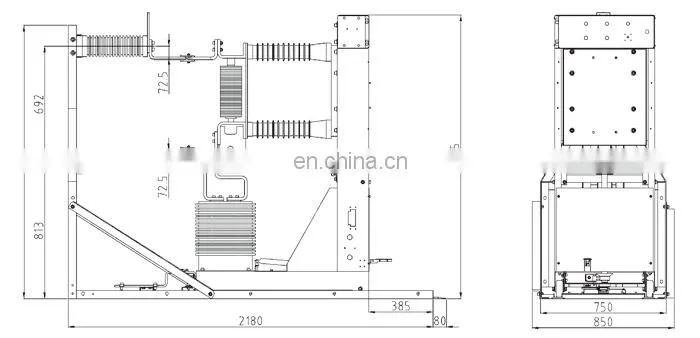

VXA withdrawable type dimension drawing
