GE High-Voltage Circuit Breaker GL317XD 550kV

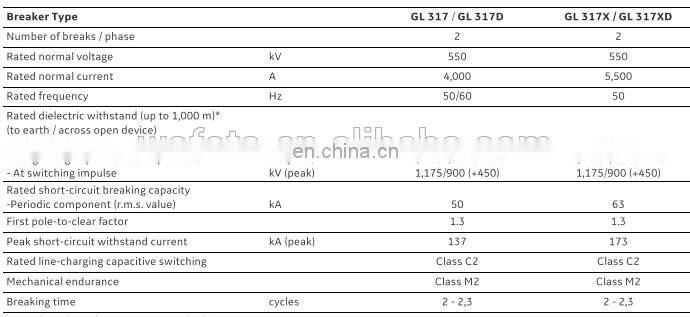

Technical Data
The GL 317 and GL 317X live tank circuit breakers
Single pole operating design
Two self-blast Interrupter chambers per pole
Spring mechanism FK3 equipped with a position indicator visible from outside
Field-proven, temperature-compensated density monitor with two-stage transducer and three-color dial
Easy access to the SF6 filling connection (type DILO)
Sealings suitable for temperatures down to -60 °C
Hot-dip galvanized steel parts and mechanism housings made completely of aluminum

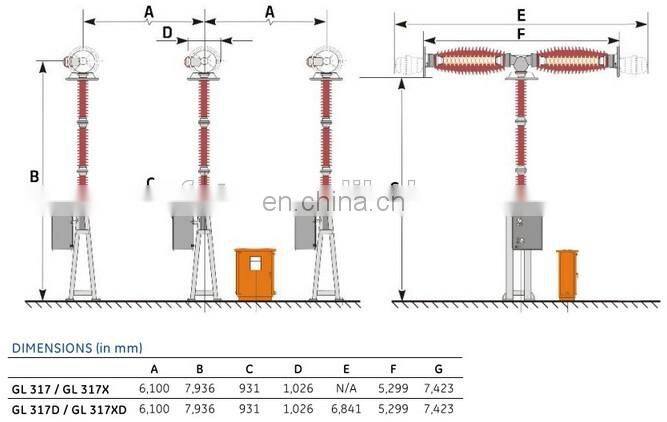

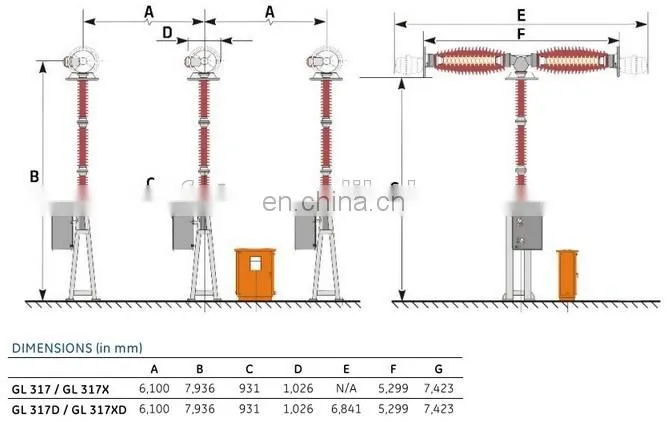

Drawings
