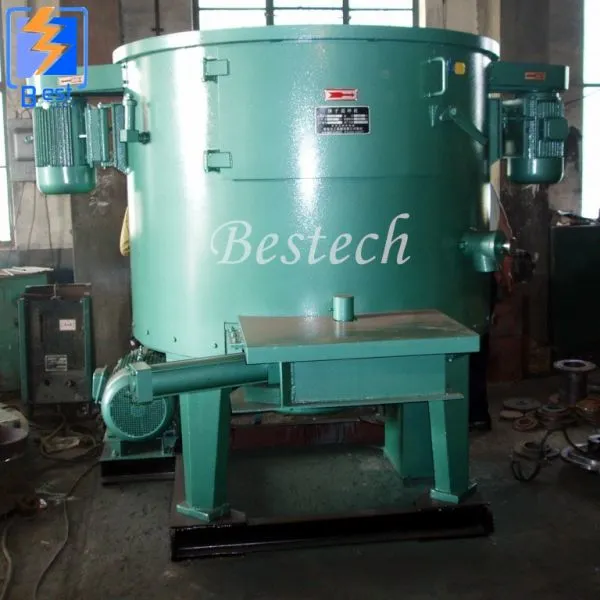

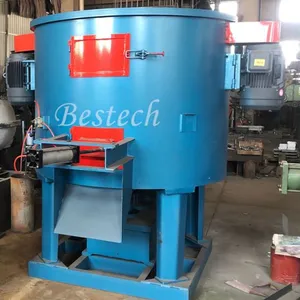

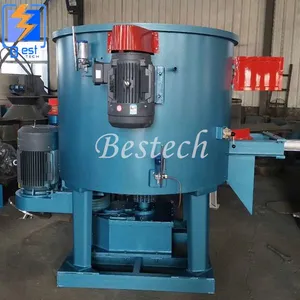

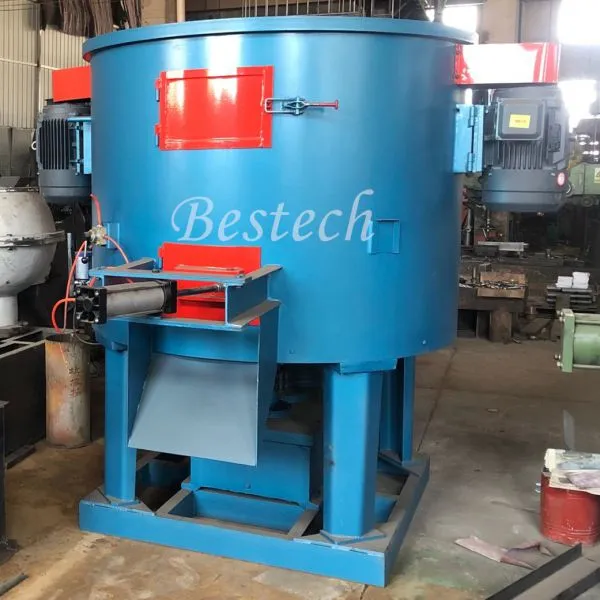

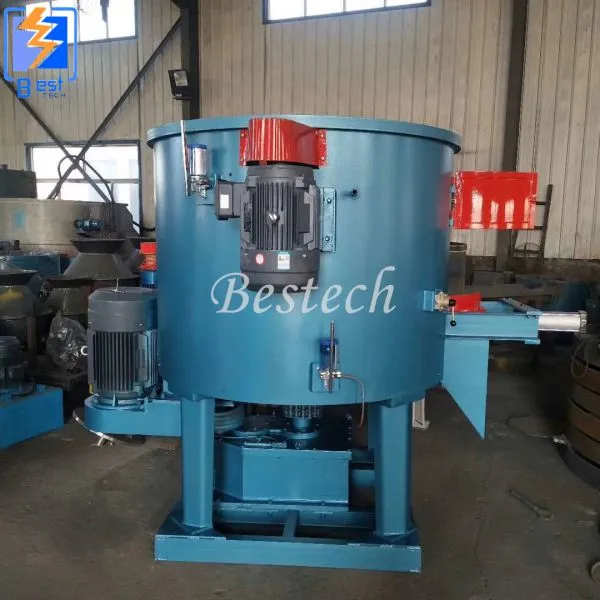

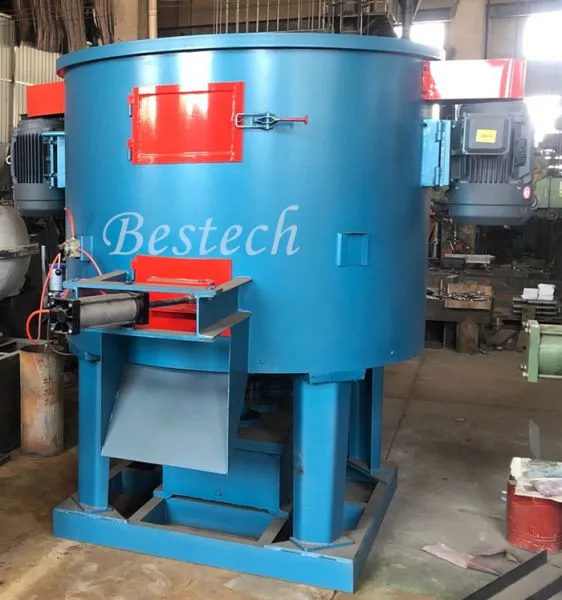

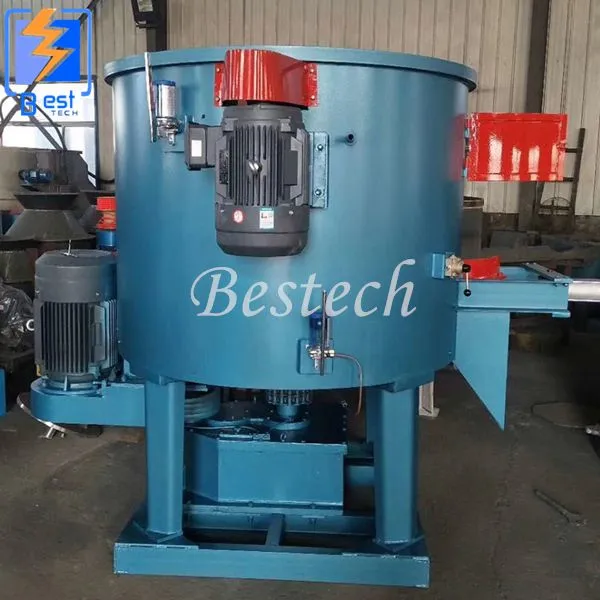

The rotor sand mixing machine has scrapers and two high-speed rotors with a blade were installed in the machine's chassis. chassis rotates as clockwise, rotor and scraper rotate as counterclockwise. Rotor speed is higher than the speed of the chassis. Because chassis and rotor has an opposite movement, and the speed is different, so the sand of the chassis obtains different speed difference. Sand grains produce corresponding friction force and shear force, which causes the grinding, mixing, broken. This kind of machine not only mix with high efficiency, and the sand after mixing is good quality.
Features of rotor sand mixer:
The High Efficiency Sand Mixer low-speed scraper with the best combination of rotor speed, sand volume, mixing ability, good overall performance sand.
The High Efficiency Sand Mixer diabase cast stone, tungsten carbide surfacing, 2 fillers and other new materials, greatly improving the life of wearing parts
The High Efficiency Sand Mixer hydraulic coupling, steel gears, lubricating controlled machine to ensure smooth and reliable transmission system, and can load start.
The High Efficiency Sand Mixer latest rotary discharge door open and flexible, reliable and completely solved the problem of sand at the bottom drain.
Thee High Efficiency Sand Mixer symmetric access door opened very convenient for maintenance and cleaning.
The High Efficiency Sand Mixer easy to use and install steel base.
Type |
Plate diameter(mm) |
Plus the material(kg/s) |
Productivity (t/h) |
Installed power(kw) |
ApproximateWeight(kg) |
S1408 |
800 |
150 |
4 |
7.4 |
800 |
S1410A |
1000 |
200 |
5 |
8.3 |
1000 |
S1412 |
1200 |
330 |
8 |
11.5 |
1200 |
S1416A |
1600 |
660 |
16 |
19 |
2400 |
S1418 |
1820 |
800 |
18-20 |
30.55 |
2800 |
S1420J |
2000 |
1000 |
25-30 |
44 |
6500 |
S1420D |
2000 |
1200-1400 |
35-42 |
74.55 |
7000 |
S1420T-B |
2000 |
1600 |
40-48 |
90.5 |
9000 |
S1422 |
2240 |
1600 |
40-48 |
99.55 |
10000 |
S1422D |
2240 |
1900 |
47-55 |
135.55 |
11000 |
S1425 |
2500 |
2200-3000 |
66-90 |
135 |
15000 |
S1425D |
2500 |
2300-3000 |
69-90 |
164 |
15000 |
S1425E |
2500 |
1300-3000 |
69-90 |
164 |
16500 |
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
Q:How many days will be used to produce this sand mixer machine?
A:Normally within 10 workdays or according to your requirement
Q:Can you provide installation and commissioning overseas?
A:We can supply oversea service if needed
Q:Are you manufacture or trading company?
A:We are manufacture,welcome to visit our factory
