Suspended Type Fresh Air Ventilation and Purification Units With Heat Recovery Core (ERV/HRV/MVHR)

Suspended Type Fresh Air Ventilation and Purification Units With Heat Recovery Core (ERV/HRV/MVHR) thumbnail-1
Suspended Type Fresh Air Ventilation and Purification Units With Heat Recovery Core (ERV/HRV/MVHR) thumbnail-2
Suspended Type Fresh Air Ventilation and Purification Units With Heat Recovery Core (ERV/HRV/MVHR) thumbnail-3
Suspended Type Fresh Air Ventilation and Purification Units With Heat Recovery Core (ERV/HRV/MVHR) thumbnail-4
Suspended Type Fresh Air Ventilation and Purification Units With Heat Recovery Core (ERV/HRV/MVHR) thumbnail-5
Suspended Type Fresh Air Ventilation and Purification Units With Heat Recovery Core (ERV/HRV/MVHR) photo-1
Suspended Type Fresh Air Ventilation and Purification Units With Heat Recovery Core (ERV/HRV/MVHR) photo-2
Suspended Type Fresh Air Ventilation and Purification Units With Heat Recovery Core (ERV/HRV/MVHR) photo-3
Suspended Type Fresh Air Ventilation and Purification Units With Heat Recovery Core (ERV/HRV/MVHR) photo-4
Suspended Type Fresh Air Ventilation and Purification Units With Heat Recovery Core (ERV/HRV/MVHR) photo-5
US$ 350 - 680 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Holtop
Place of Origin:
China
Model Number:
XHBQ-D6THC~XHBQ-D13THC; XHBQ-D6PMTHC~XHBQ-D13PMTHC
Contact Supplier Request Quote Chat Now
Beijing Holtop Air Conditioning Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin,China
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Holtop
Place of Origin China
Model Number XHBQ-D6THC~XHBQ-D13THC; XHBQ-D6PMTHC~XHBQ-D13PMTHC
Type HVAC Systems





Good thermal insulation The whole series are intergated with EPS structure, effectively preventing condensation, and improving thermal insulation and saving energy consumption. EPS structure erv
New primary filter New primary filter is made of aluminium alloy frame and rubber filtration materials with nice appearance and longer service life. aluminium filter

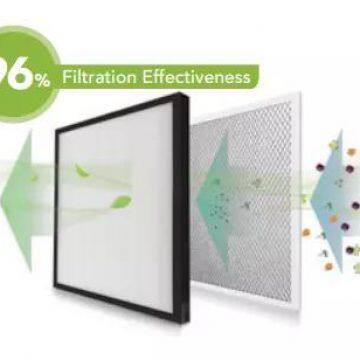

Sub-HEPA F9 filter integrated optional
Optional sub HEPA F9 filter, particle diameter under 2.5μm can be filtered effectively, IAQ (indoor air quality) will be increased obviously.		 F9 filter

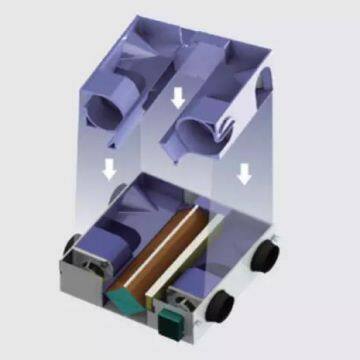

New compact structure
New airflow channels are to increase heat exchange surface and improve energy recovery efficiency.
 New compact structure

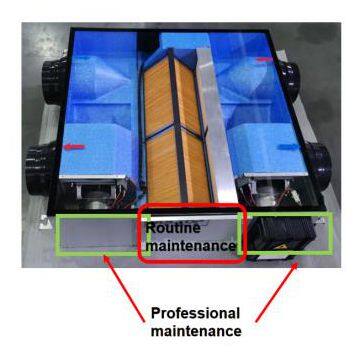

Easy maintenance
• Regular access door is for maintenance of primary filter, PM2.5 filter and heat exchangers.
• Increase two professional access doors for the control and fan maintenance.		 easy maintenance
Higher efficiency with 3rd generation enthalpy exchanger
The 3rd generation enthalpy exchanger is made of the latest nanofiber structure to ensure higher efficiency. The heat exchange materials are mildew resistance and fire retardant.enthalpy exchanger

ceiling ERV

Specification:

Model Fan Speed Airflow
(m3/h) 		External
pressure
(Pa) 		Enthalpy Efficiency(%) Temp. Efficiency (%) Noise
dB(A) 		Current
(A) 		Input
power
(W) 		N. W.
(Kg) 		Remarks
Summer Winter
XHBQ-D6THC L 500 89 63 67 76 29 0.96 0.2 34 Without PM2.5 filters
M 600 92 59 61 70 35
H 600 97 59 61 70 39
XHBQ-D8THC L 700 92 57 63 74 34 2 0.42 53
M 800 96 55 57 68 39
H 800 100 55 57 68 41
XHBQ-D10THC L 900 80 60 64 76 34 2.1 0.45 61
M 1000 85 58 62 70 38
H 1000 86 58 62 70 42
XHBQ-D13THC L 1000 75 58 62 76 38 3.2 0.68 71
M 1300 85 56 59 70 41
H 1300 90 56 59 70 43
XHBQ-D6PMTHC L 500 79 63 67 76 29 0.92 0.2 35 With
PM2.5
filter
M 600 85 59 61 70 35
H 600 87 59 61 70 39
XHBQ-D8PMTHC L 700 82 57 63 74 34 2 0.42 54
M 800 86 55 57 68 39
H 800 90 55 57 68 41
XHBQ-D10PMTHC L 900 70 60 64 76 34 2.1 0.45 62
M 1000 76 58 62 70 38
H 1000 76 58 62 70 42
XHBQ-D13PMTHC L 1000 65 58 62 76 38 3.2 0.68 72
M 1300 80 56 59 70 41
H 1300 80 56 59 70 43
Product Tags: Whole house ventilation , heat recovery ventilator , ventilation system
