Home > Products > Vertical Packaging Machine > All Stainless Steel Material Liquid Bottling Machine Tomato Paste Bottle Filling Machine

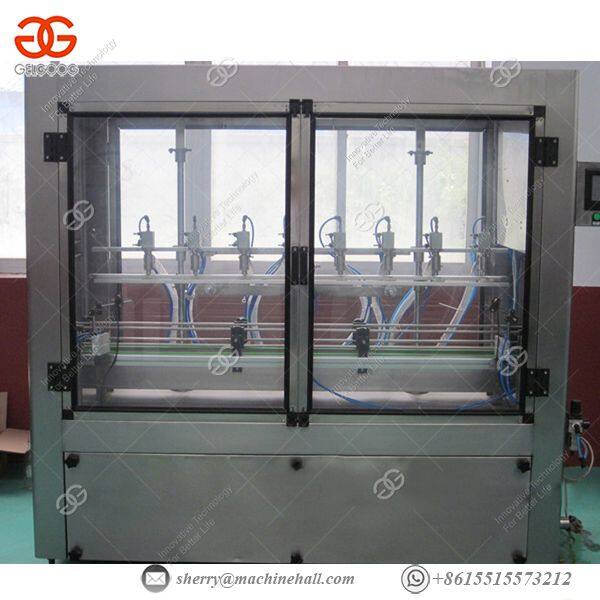

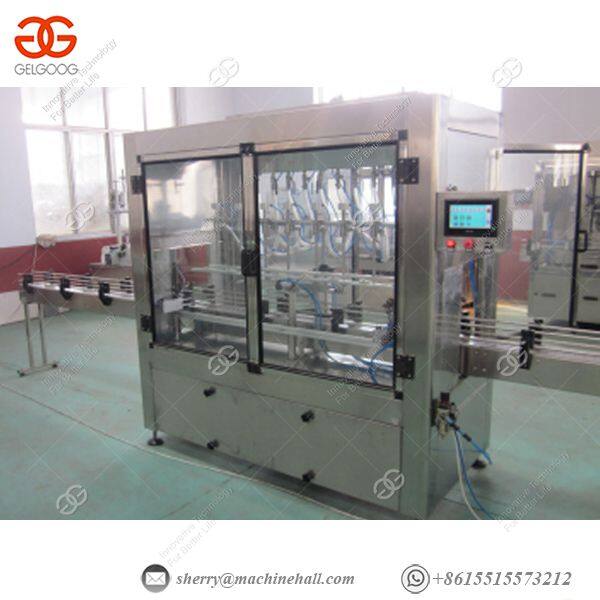

All Stainless Steel Material Liquid Bottling Machine Tomato Paste Bottle Filling Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T L/C Other
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	GELGOOG	Place of Origin	China
Model Number	YT2G	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas	Voltage	380V 50Hz
Power	500W	Condition	New
Automatic Grade	Automatic	Packaging Type	Bottles

Packaging Details

Wooden Packing As Export Standard

Product Description

The cream filling machine is a high-tech filling equipment that is programmable by a microcomputer, photoelectric sensor, and pneumatic execution. It is widely used in liquid filling of fruit juice, soy sauce, vinegar, mineral water, detergent, disinfectant, lubricant, wine, milk, carbonated drinks, etc. The filling measurement is accurate, without bubbles and dripping. It is suitable for filling various bottle shapes (including special-shaped bottles).

Model	YT2G
Filling Nozzle	2
Capacity	10-30bottles/min
Filling Accuracy	≦±1﹪
Voltage	380V 50Hz
Electric Current	3A
Power	500W
Atmospheric Pressure	0.4－0.6Mpa
Filling Capacity	100-1000ml

Unique Filling Method:

The design selects the linear grouping of bottles into and out of the bottle to expand the filling function. Various forms of containers can be effectively filled in this equipment.

The international advanced gas filling valve is selected to ensure that there is no leakage and no sag during the filling process.

Powerful software support can realize the ideal filling operation.

Man-machine friendly interface, so all operations are done on the touch color screen.

Advanced Technology:

This machine is suitable for filling containers of different specifications, and the filling specifications can be switched within a few minutes.

Short filling cycle and high production capacity.

No need to add equipment to replace the filling specifications, just make adjustments to complete.

Users can choose the number of filling according to their own production capacity to determine the number of filling heads.

Touch-operated color screen can display production status, operating procedures, filling methods, etc.

Each filling head is equipped with a bottle-clamping device to ensure accurate injection positioning.
